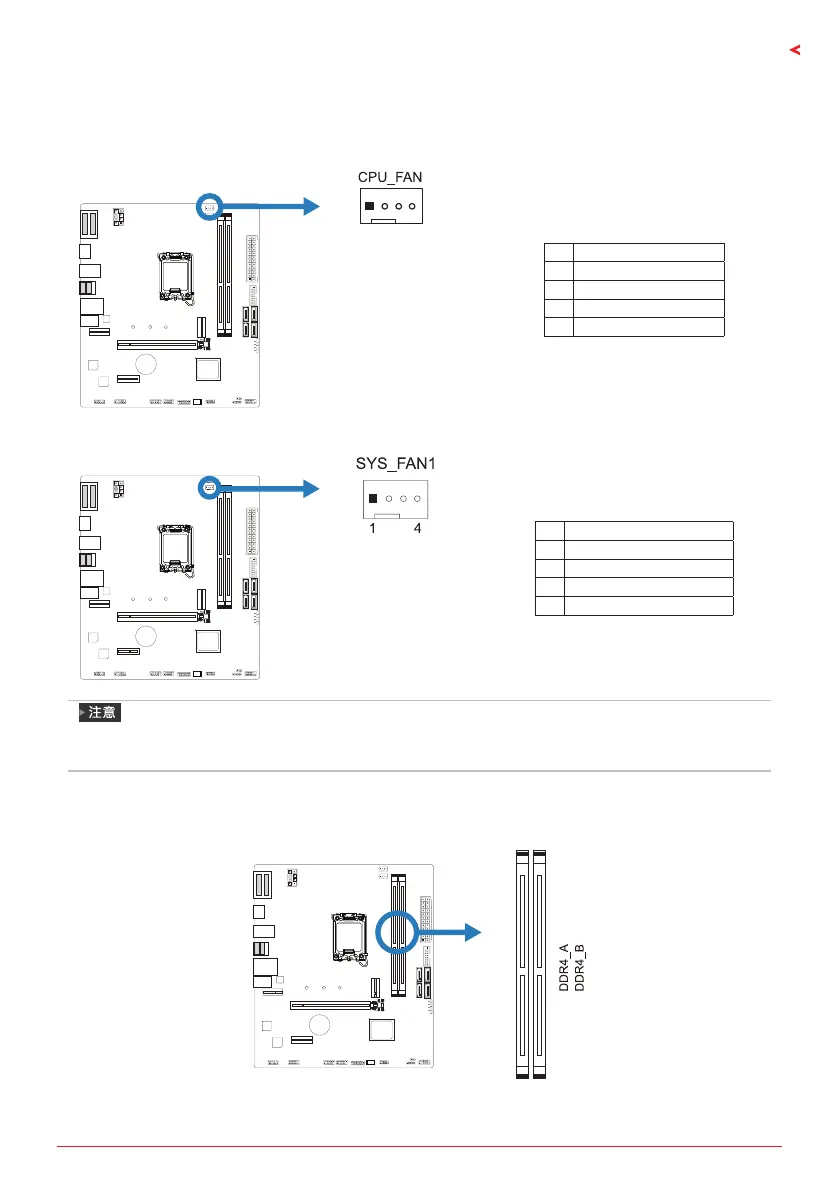

第二章：硬體安裝 | 15
H610MX-E｜H610MX｜H610MH-E｜H610MH｜H610MHP｜H610MHC｜H610MX2-E｜H610MH2｜H610MHP2
2�3 風扇接頭
此風扇接頭支援電腦上設置的冷卻風扇，風扇電纜和連接器可能因風扇製造商而有差異。
CPU_FAN 風扇接頭
針 定義
1 接地
2 +12V
3 FAN RPM rate sense
4 AI Fan Control
SYS_FAN1: 系統風扇接頭
針 定義
1 接地
2 +12V
3 FAN RPM rate sense
4 AI Fan Control
»
CPU_FAN，SYS_FAN1支援4個針腳和3針腳接頭；接線時請注意紅線是正級需接到第二個針
腳，黑線接地需接到接地針腳。
2�4 系統記憶體
DDR4記憶體模組
