2.5 Expansion Slots

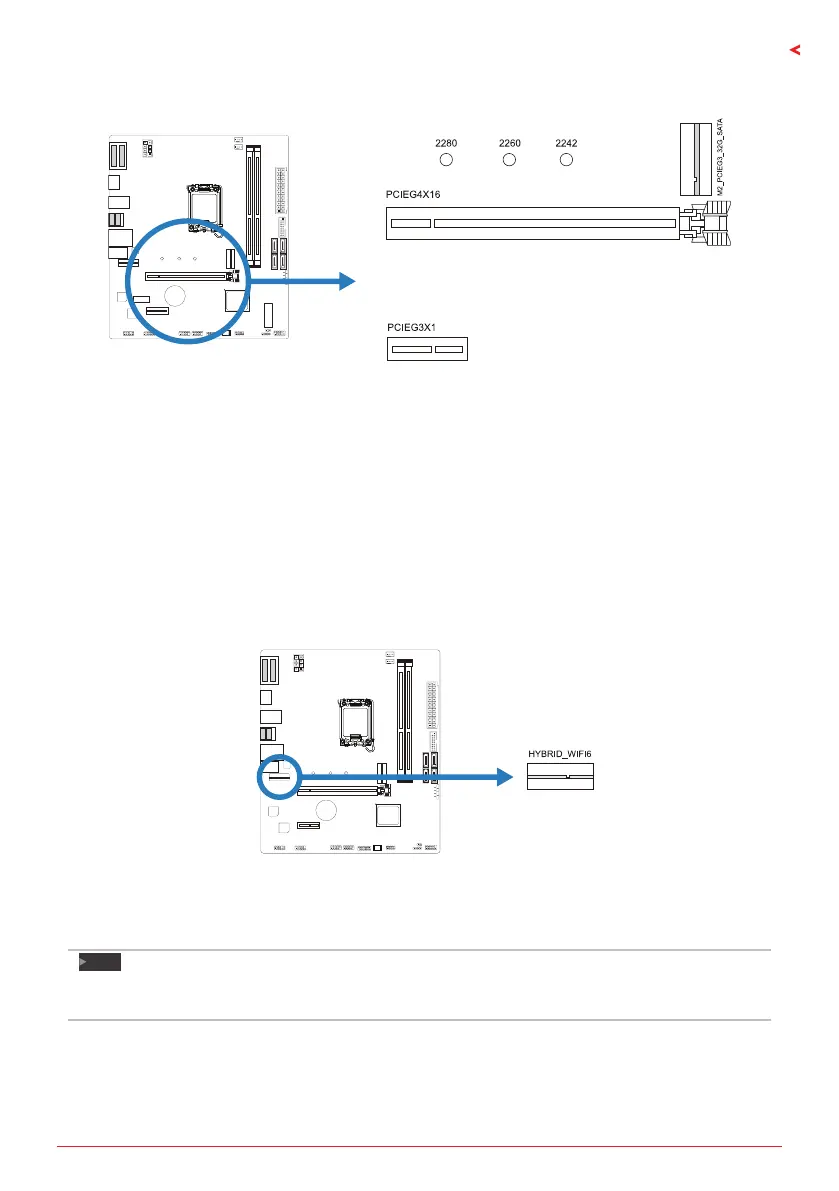

PCIEG4X16: PCI-Express Gen4 x16 Slots (x16 mode)
• PCI-Express 4.0 compliant.
• The maximum bandwidth of the PCIe slot is 64GB/s.
PCIEG3X1: PCI-Express Gen3 x1 Slots
• PCI-Express 3.0 compliant.
• Data transfer bandwidth up to 1GB/s per direcon; 2GB/s in total.
M2_PCIEG3_32G_SATA: M.2 (M Key) Socket
• The M.2 slot supports M.2 Type 2240/ 2260/ 2280 SSD module. When installing M.2 SSD
module, please place the screw and hex pillar to correct posion.
• Supports M.2 SATA III (6Gb/s) module and M.2 PCI Express module up to Gen3 x4
(32Gb/s) - NVMe & AHCI SSD/ SATA SSD.
HYBRID_WIFI6: M.2 (E Key) Socket (M.2 (E Key) Wi-Fi card is not provided)
• Support M.2 socket 2230 type module.
• Supports WiFi/ Bluetooth module and Intel® CNVi (Integrated WiFi/ BT).
Note
»
»
When using SATA SSD module on M.2 slot (M2_PCIEG3_32G_SATA), the SATA_4 connector will be
disabled.
