Chapter 2: Hardware installaon | 15
H610MX-E|H610MX|H610MH-E|H610MH|H610MHP|H610MHC|H610MX2-E|H610MH2|H610MHP2

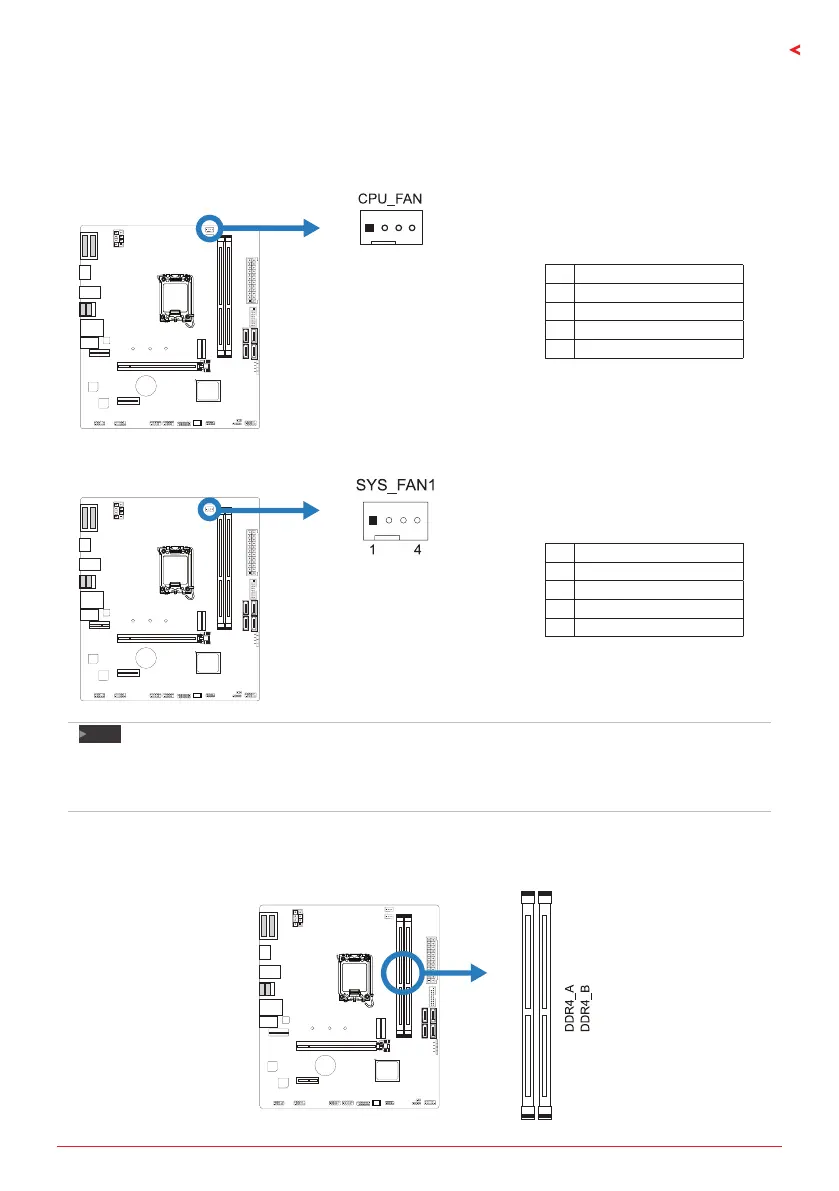

2.3 Connect Cooling Fans
These fan headers support cooling-fans built in the computer. The fan cable and connector
may be dierent according to the fan manufacturer.
CPU_FAN: CPU Fan Header
Pin Assignment
1 Ground
2 +12V
3 FAN RPM rate sense
4 AI Fan Control
SYS_FAN1: System Fan Header
Pin Assignment
1 Ground
2 +12V
3 FAN RPM rate sense
4 AI Fan Control
Note
» 
»
CPU_FAN, SYS_FAN1 support 4-pin and 3-pin head connectors. When connecng with wires onto 
connectors, please note that the red wire is the posive and should be connected to pin#2, and the 
black wire is Ground and should be connected to pin#1(GND).
2.4 Install System Memory
DDR4 Modules
