Chapter 2: Hardware installaon | 21

H610MX-E｜H610MX｜H610MH-E｜H610MH｜H610MHP｜H610MHC｜H610MX2-E｜H610MH2｜H610MHP2

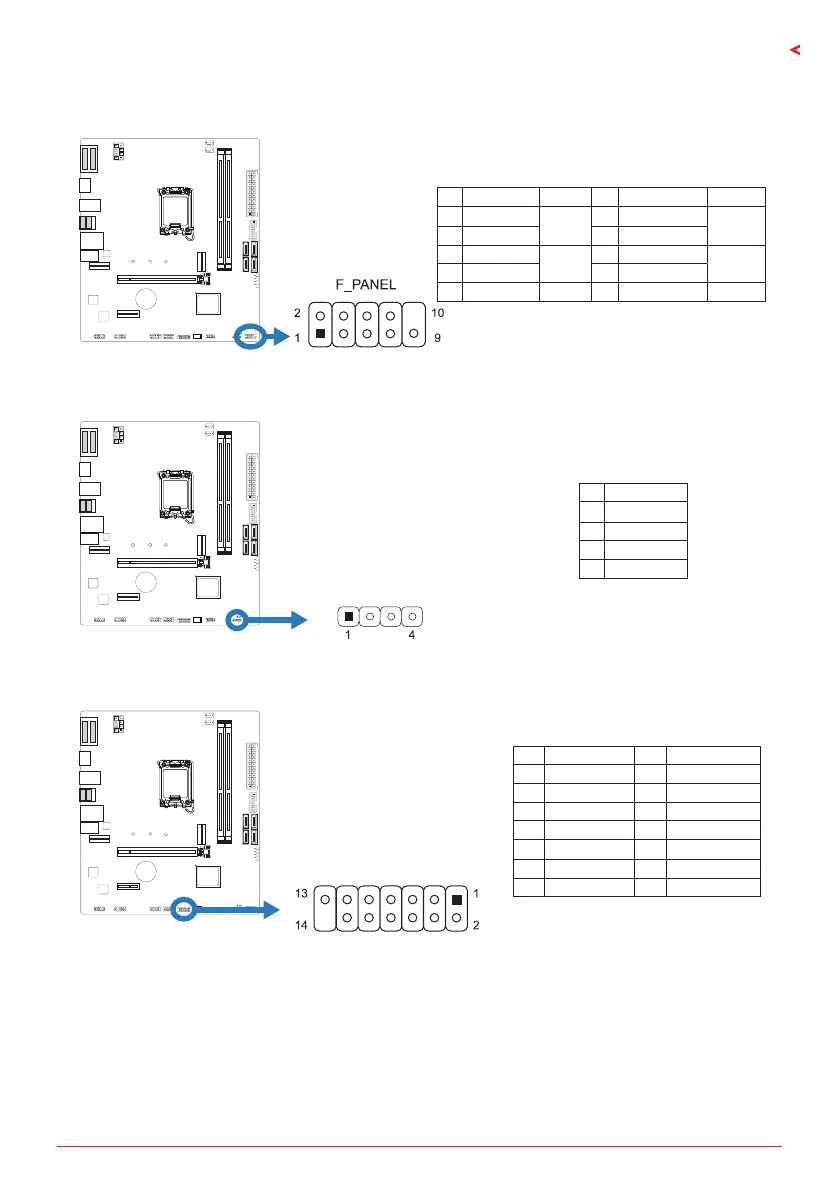

F_PANEL: Front Panel Header

This 10-pin header includes Power-on, Reset, HDD LED, Power LED connecon.

Pin Assignment Funcon Pin Assignment Funcon

1 HDD LED(+)

HDD

LED

2 Power LED (+)

Power

LED

3 HDD LED(-) 4 Power LED (-)

5 Ground

Reset

Buon

6 Power Buon

Power-On

Buon

7 Reset Control 8 Ground

9 NC NC 10 NA NA

SPKR: Chassis Speaker Header

Please connect the chassis speaker to this header.

Pin Assignment

1 +5V

2 N/A

3 N/A

4 Speaker

TPM_SPI: Trusted Plaorm Module Header

This header allows you to store cryptographic keys that protect informaon.

Pin Assignment Pin Assignment

1 +3.3V 2 SPI_PIRQ

3 TPM_RST# 4 TPM_CS

5 N/A 6 N/A

7 +3.3V 8 GND

9 N/A 10 SPI_CLK

11 SPI_MISO 12 SPI_MOSI

13 N/A 14 KEY
