3.3 Software
Installing Soware
1. Insert the Setup DVD to the opcal drive. The driver installaon program would appear if
the Auto-run funcon has been enabled.
2. Select Soware Installaon, and then click on the respecve soware tle.
3. Follow the on-screen instrucons to complete the installaon.
Launching Soware
Aer the installaon process is completed, you will see the soware icon showing on the
desktop. Double-click the icon to launch it.
Note
»
 Alltheinformaonandcontentaboutfollowingsowarearesubjecttobechangedwithoutnoce.
Forbeerperformance,thesowareisbeingconnuouslyupdated.
»
 Theinformaonandpicturesdescribedbelowareforyourreferenceonly.Theactualinformaon
andsengsonboardmaybeslightlydierentfromthismanual.

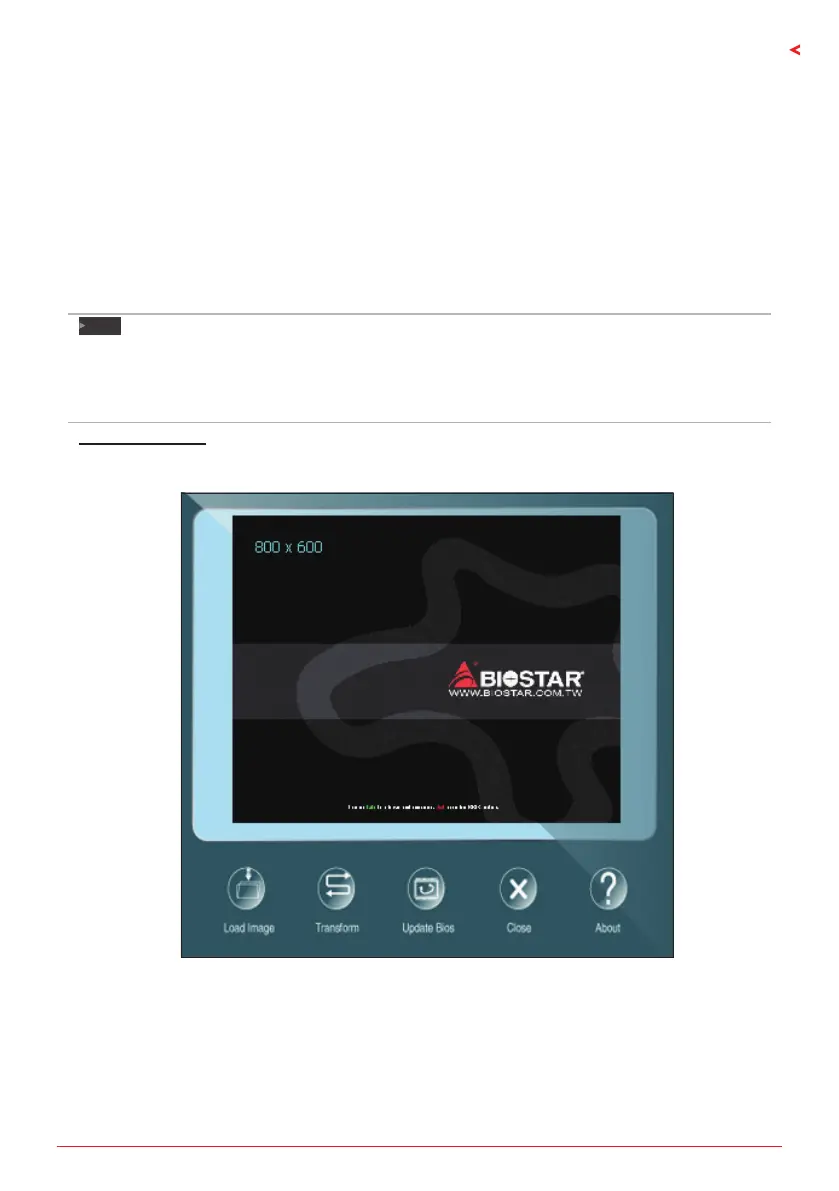

BIOScreen Ulity
This ulity allows you to personalize your boot logo easily. You can choose BMP as your boot
logo so as to customize your computer.
Please follow the step-by-step instrucons below to update boot logo:
• Load Image: Choose the picture as the boot logo.
• Transform: Transform the picture for BIOS and preview the result.
• Update Bios: Write the picture to BIOS Memory to complete the update.

Biostar H61MHV3 Specifications

General

Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Pentium
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	- GB
Supported memory clock speeds	1066, 1333, 1600 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 16GB, 512MB
Number of storage drives supported	4
Supported storage drive interfaces	SATA II
Parallel processing technology support	-
Headphone outputs	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
LAN controller	Realtek RTL8111H
Ethernet interface type	10 Gigabit Ethernet, 100 Gigabit Ethernet
Audio chip	Realtek ALC897
Component for	PC
Motherboard chipset	Intel® H61
PC health monitoring	CPU, FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
PCI Express slots version	2.0, 3.0
Cables included	SATA
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	170 mm
Height	191 mm
