Chapter 1 Motherboard Description
1-10
1.3 CPU Installation

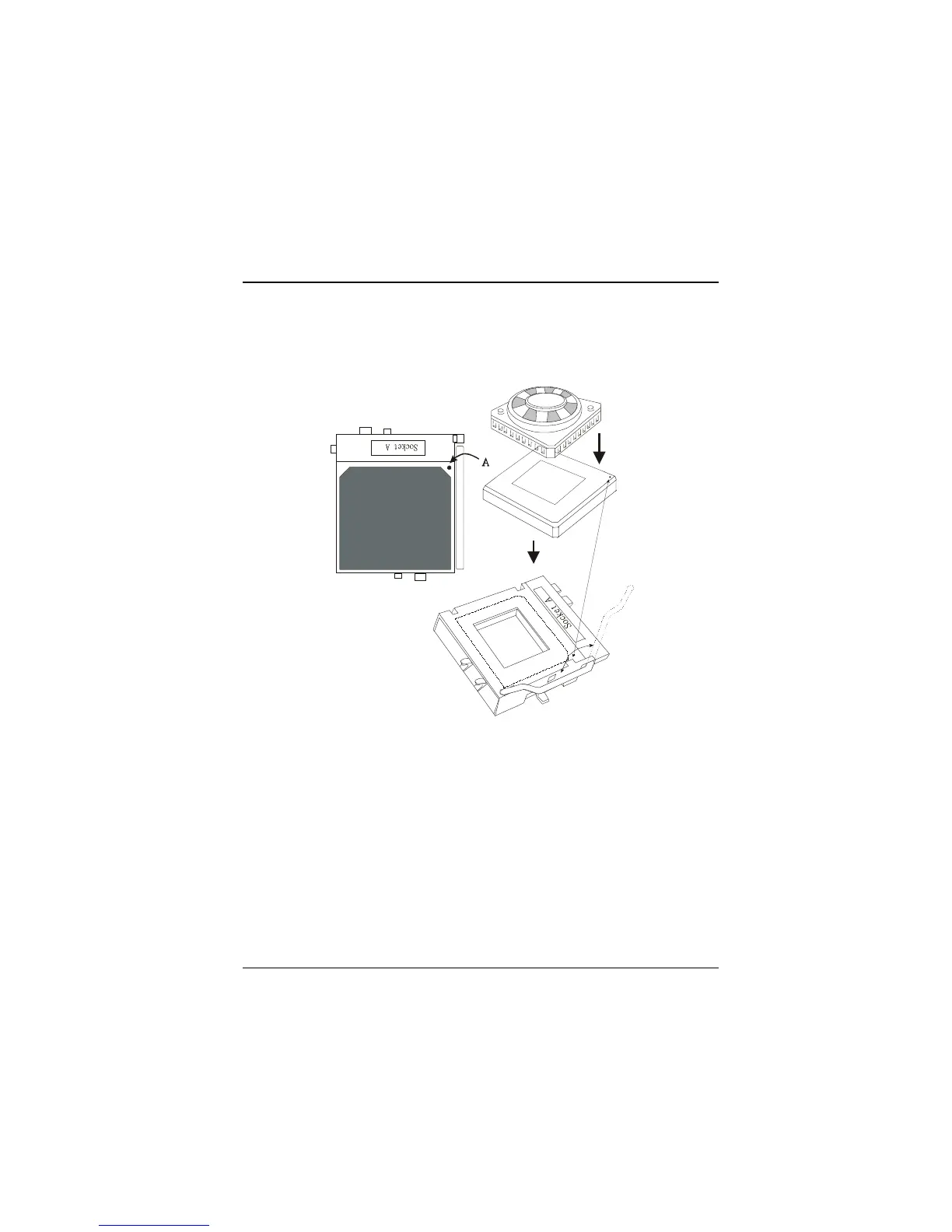

1.3.1 CPU Installation Procedure: Socket A
1. Pull the lever sideways away from the socket then raise the lever up to a
90-degree angle.
2. Locate Pin A in the socket and look for the white dot or cut edge in the CPU.
Match Pin A with the white dot/cut edge then insert the CPU.
3. Press the lever down .
4. Put the fan on the CPU by buckling it, and then put the fan’s powerport into
the JCFAN1, then the installation will be completed.
