Biostar M7VKQ - Video Graphics Adapter Port: JVGA1

Chapter 1 Motherboard Description
1-28
1.7.3.2 Video Graphics Adapter Port: JVGA1

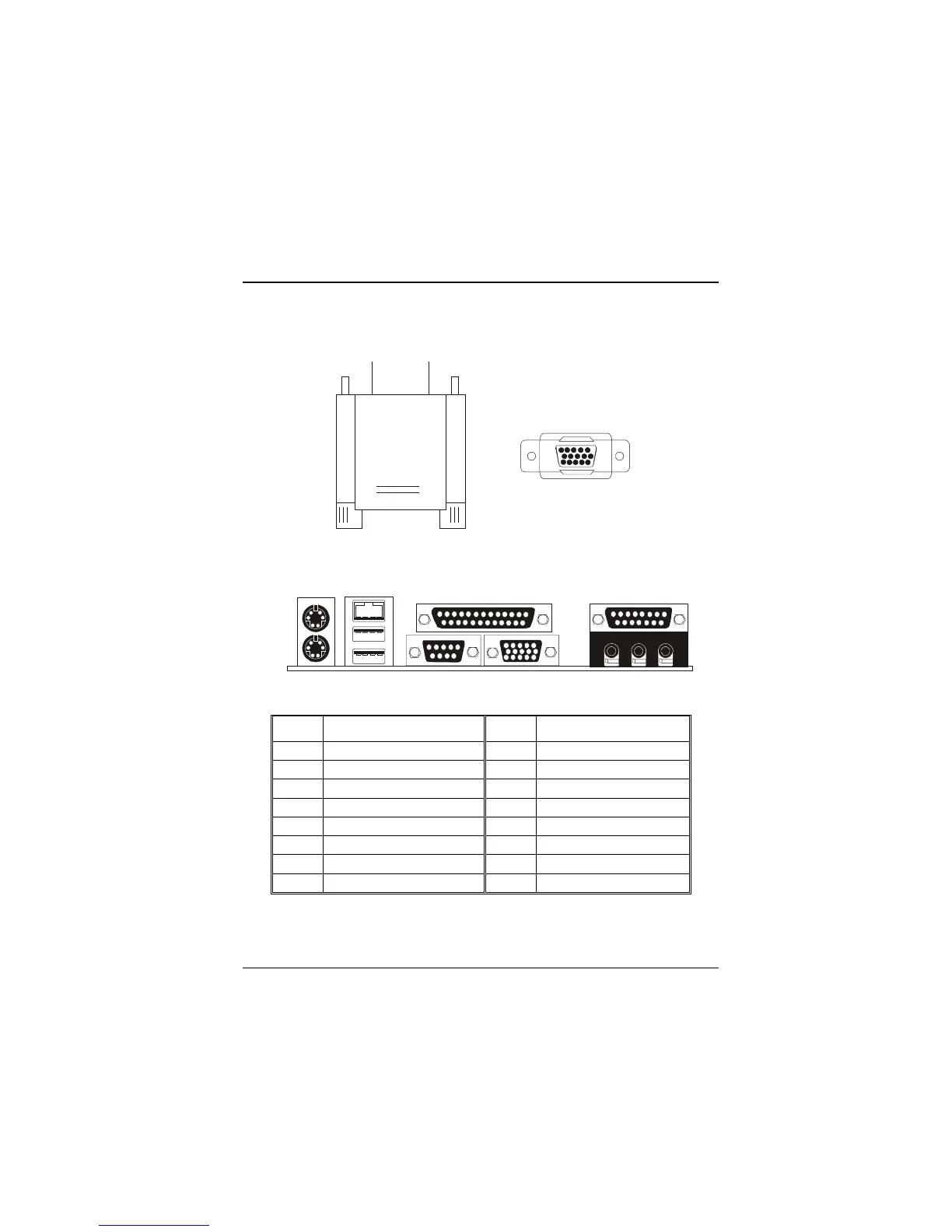

This motherboard has built in video facilities. Your monitor will attach directly to
JVGA1 connector on the motherboard.
Pin No. Assignment Pin No. Assignment
1
Red
2
Green
3
Blue
4
NC
5
Ground
6
Ground
7
Ground
8
Ground
9
+5V
10
Ground
11
NC
12
DDC/Data
13
HSYNC
14
VSYNC
15
DDC/CLK
JVGA1
1
1115
5
