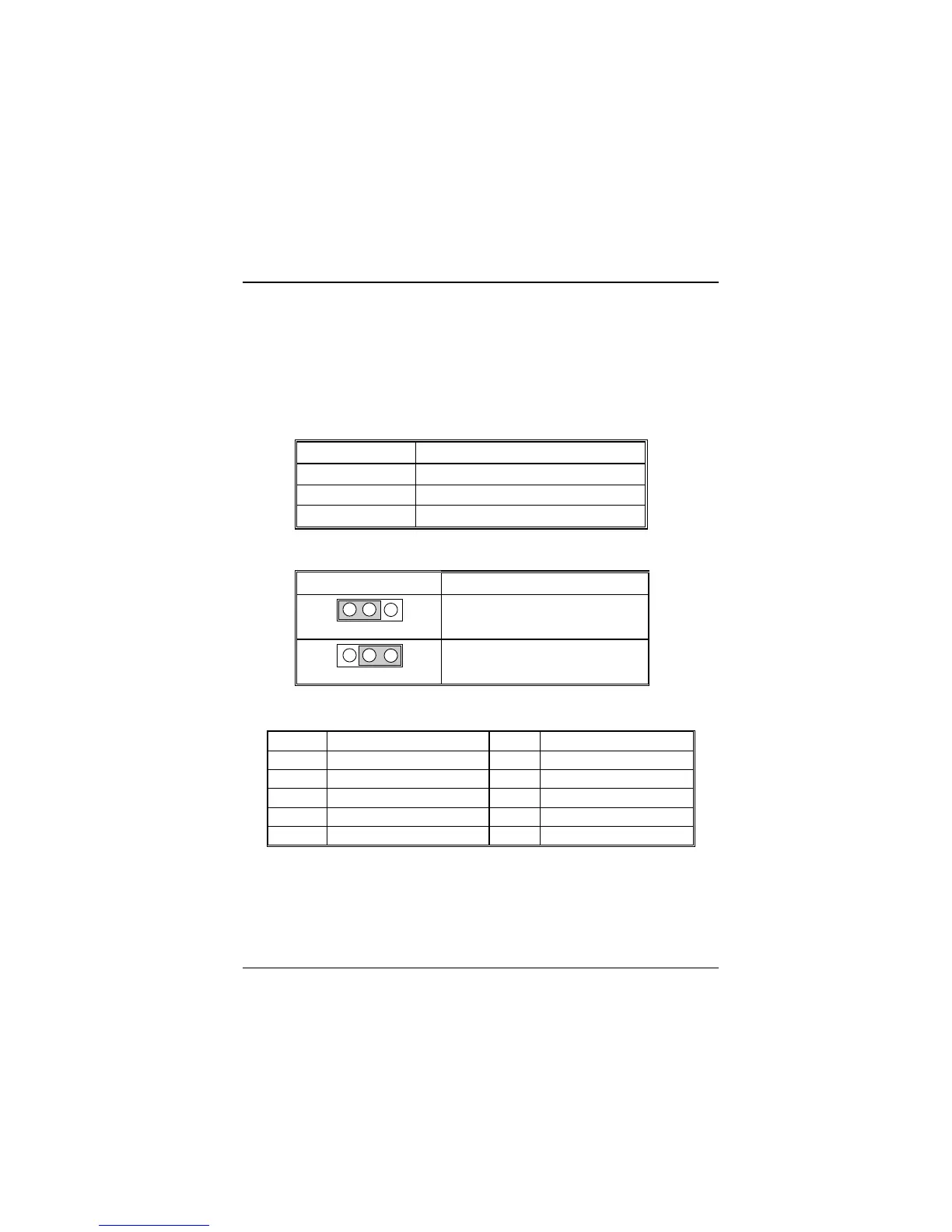

Chapter 1 Motherboard Description
1-21
1.6.4 Floppy Disk Connector: FDD1
The motherboard provides a standard floppy disk connector (FDC) that supports
360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This connector supports
the provided floppy drive ribbon cables.
1.6.5 Wake On LAN Header: JWOL1
Pin No. Assignment
1
5V SB
2
Ground
3
Wake up
1.6.6 Clear CMOS Jumper: JCMOS1
JCMOS1 Assignment
1 3
1-2 Closed
Normal Operation (default)
1 3
2-3 Closed
Clear CMOS Data
1.6.7 Front USB Headers: JUSB2
Pin No. Assignment Pin No. Assignment
1
+5V
2
+5V
3
USBP2-
4
USBP3-
5
USBP2+
6
USBP3+
7
Ground
8
Ground
9
Key
10
NA
To Next Page
