Chapter 1 Motherboard Description
1-30
1.7.4 Game and Audio Port Connector: AUD_GAME1
This connector is composed of a Game port connector and an Audio port connector.
Game Port Connector:
Game port connector allows you to connect a joystick or a game pad for playing
computer games. Also, you may play or edit professional music by connecting
MIDI devices.
Audio Port Connector:
Speaker Out is used to connect speakers or headphones for audio output.
Line In can be connected to the external CD player, Tape player or other audio
devices for audio input.
Mic In is used to connect a microphone that allows you to input sounds and voices.

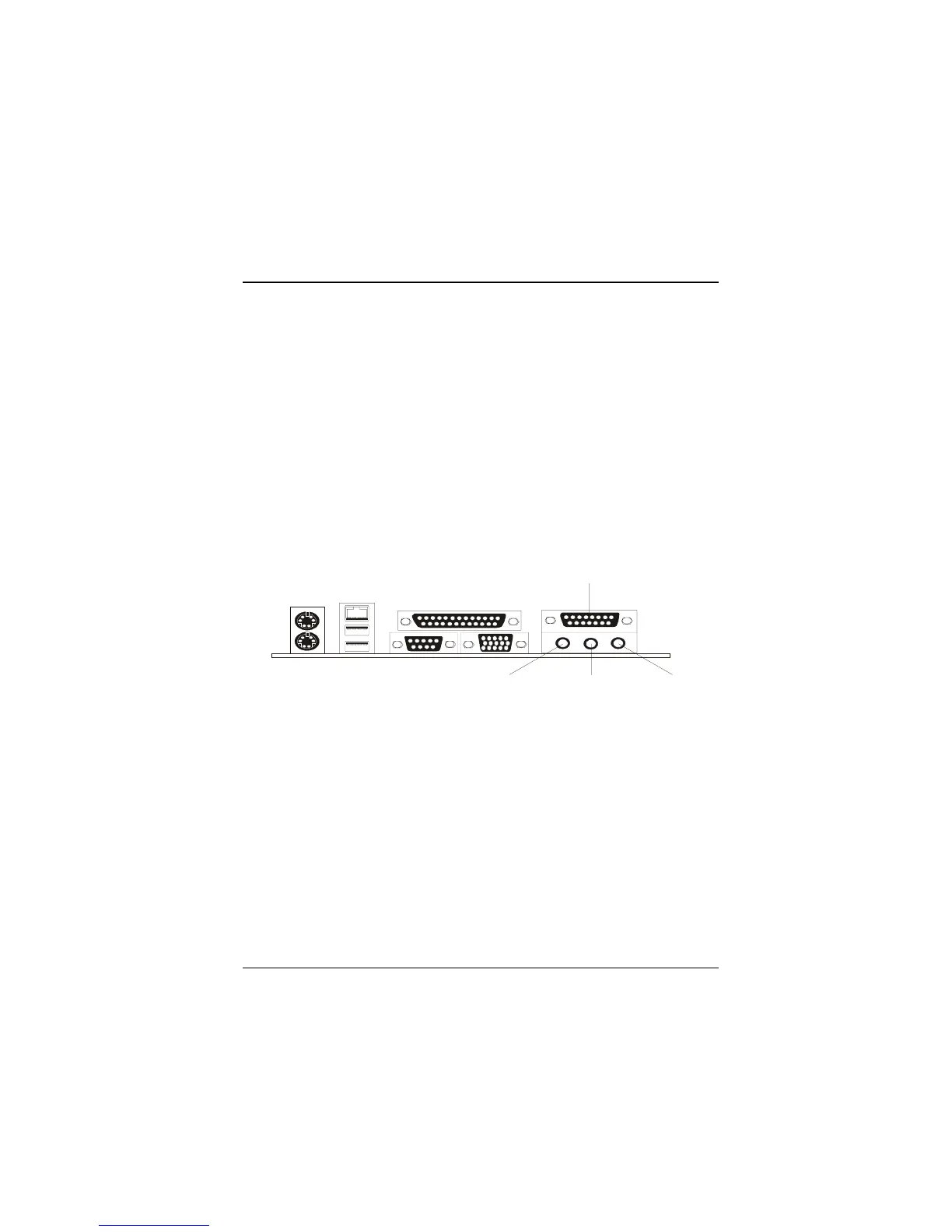

Game/Joystick/MIDI
Speaker Out Line In
Mic In
