8 | Chapter 2: Hardware Installaon

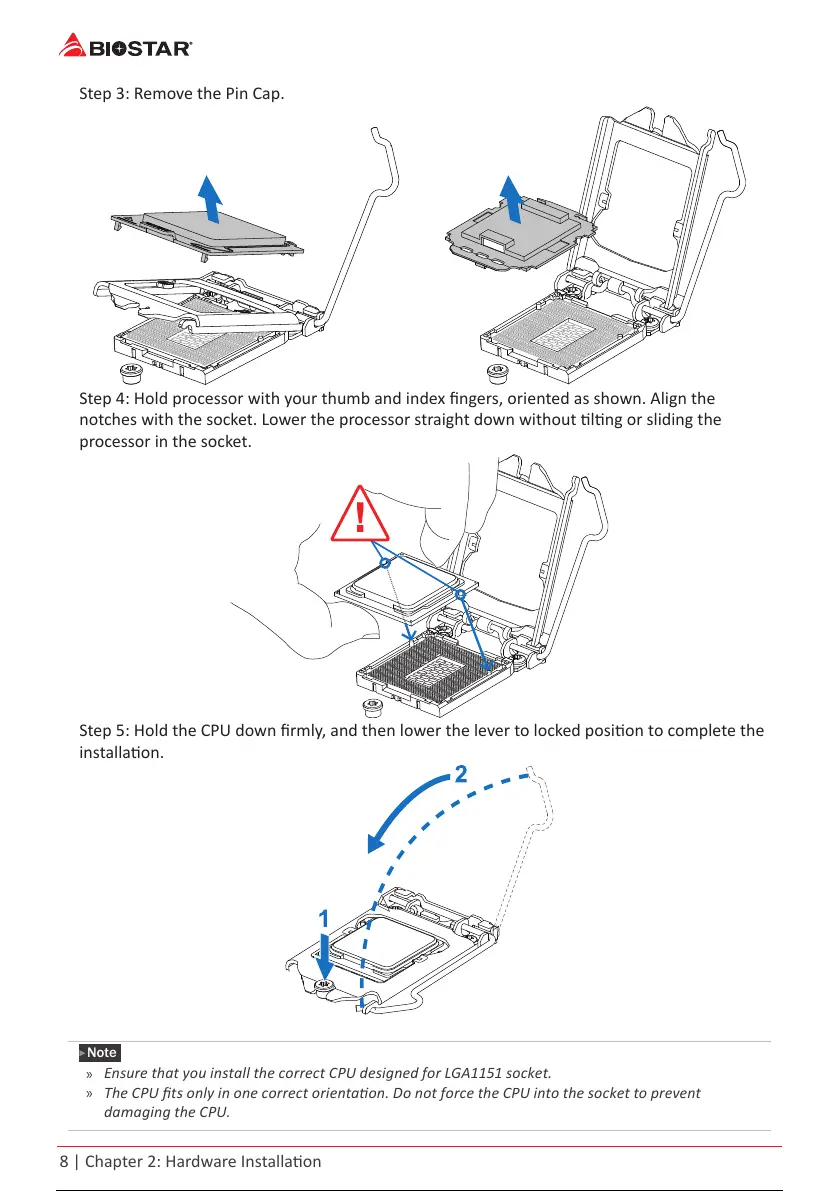

Step 3: Remove the Pin Cap.
Step 4: Hold processor with your thumb and index ngers, oriented as shown. Align the
notches with the socket. Lower the processor straight down without lng or sliding the
processor in the socket.
Step 5: Hold the CPU down rmly, and then lower the lever to locked posion to complete the
installaon.
Note
»
 EnsurethatyouinstallthecorrectCPUdesignedforLGA1151socket.
»
 TheCPUtsonlyinonecorrectorientaon.DonotforcetheCPUintothesockettoprevent
damagingtheCPU.
