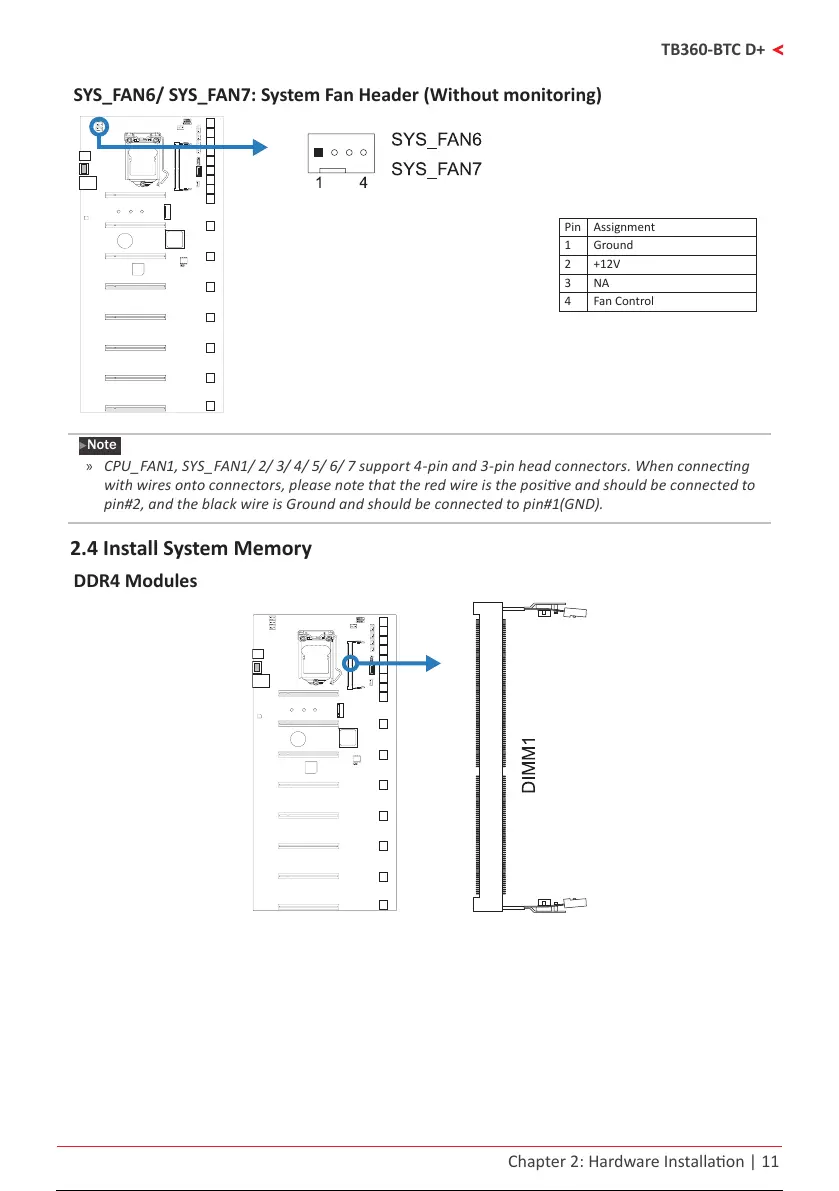

SYS_FAN6/ SYS_FAN7: System Fan Header (Without monitoring)
Pin Assignment
1 Ground
2 +12V
3 NA
4 Fan Control
Note
»
 CPU_FAN1,SYS_FAN1/2/3/4/5/6/7support4-pinand3-pinheadconnectors.Whenconnecng
withwiresontoconnectors,pleasenotethattheredwireistheposiveandshouldbeconnectedto
pin#2,andtheblackwireisGroundandshouldbeconnectedtopin#1(GND).
2.4 Install System Memory
DDR4 Modules
