Chapter 2: Hardware Installaon | 13
TB360-BTC D+

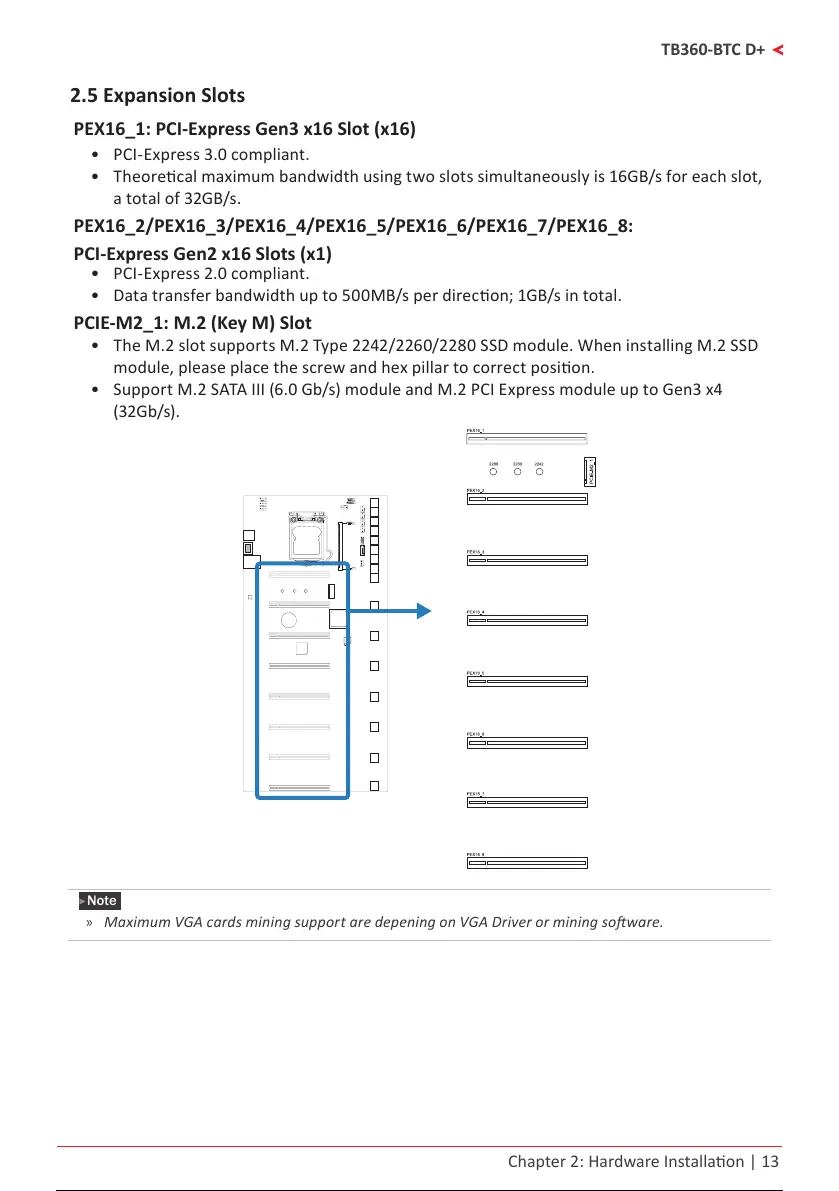

2.5 Expansion Slots
PEX16_1: PCI-Express Gen3 x16 Slot (x16)
• PCI-Express 3.0 compliant.
• Theorecal maximum bandwidth using two slots simultaneously is 16GB/s for each slot,
a total of 32GB/s.
PEX16_2/PEX16_3/PEX16_4/PEX16_5/PEX16_6/PEX16_7/PEX16_8:
PCI-Express Gen2 x16 Slots (x1)
• PCI-Express 2.0 compliant.
• Data transfer bandwidth up to 500MB/s per direcon; 1GB/s in total.
PCIE-M2_1: M.2 (Key M) Slot
• The M.2 slot supports M.2 Type 2242/2260/2280 SSD module. When installing M.2 SSD
module, please place the screw and hex pillar to correct posion.
• Support M.2 SATA III (6.0 Gb/s) module and M.2 PCI Express module up to Gen3 x4
(32Gb/s).
Note
»
 MaximumVGAcardsminingsupportaredepeningonVGADriverorminingsoware.
