Chapter 2: Hardware Installaon | 15
TB360-BTC D+

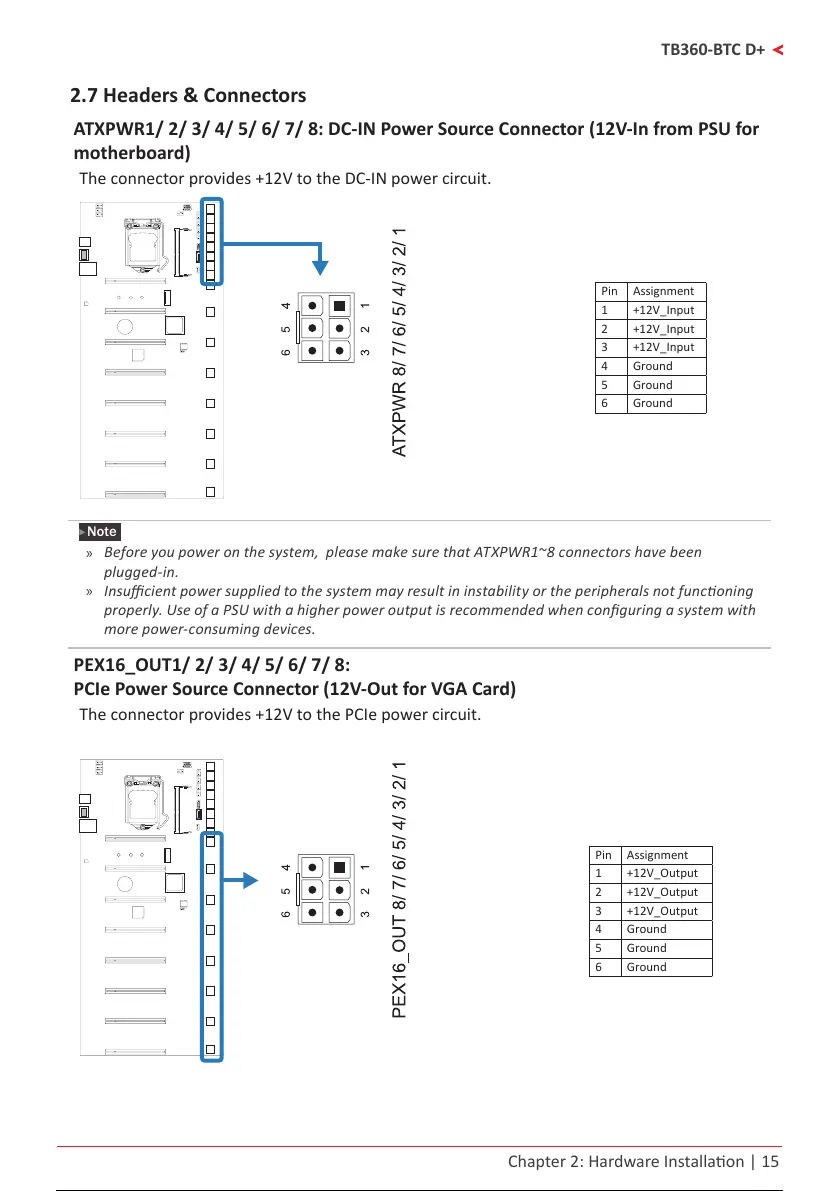

2.7 Headers & Connectors
ATXPWR1/ 2/ 3/ 4/ 5/ 6/ 7/ 8: DC-IN Power Source Connector (12V-In from PSU for
motherboard)
The connector provides +12V to the DC-IN power circuit.
Pin Assignment
1 +12V_Input
2 +12V_Input
3 +12V_Input
4 Ground
5 Ground
6 Ground
Note
»
 Beforeyoupoweronthesystem,pleasemakesurethatATXPWR1~8connectorshavebeen
plugged-in.
»
 Insucientpowersuppliedtothesystemmayresultininstabilityortheperipheralsnotfunconing
properly.UseofaPSUwithahigherpoweroutputisrecommendedwhenconguringasystemwith
morepower-consumingdevices.
PEX16_OUT1/ 2/ 3/ 4/ 5/ 6/ 7/ 8:
PCIe Power Source Connector (12V-Out for VGA Card)
The connector provides +12V to the PCIe power circuit.
Pin Assignment
1 +12V_Output
2 +12V_Output
3 +12V_Output
4 Ground
5 Ground
6 Ground
