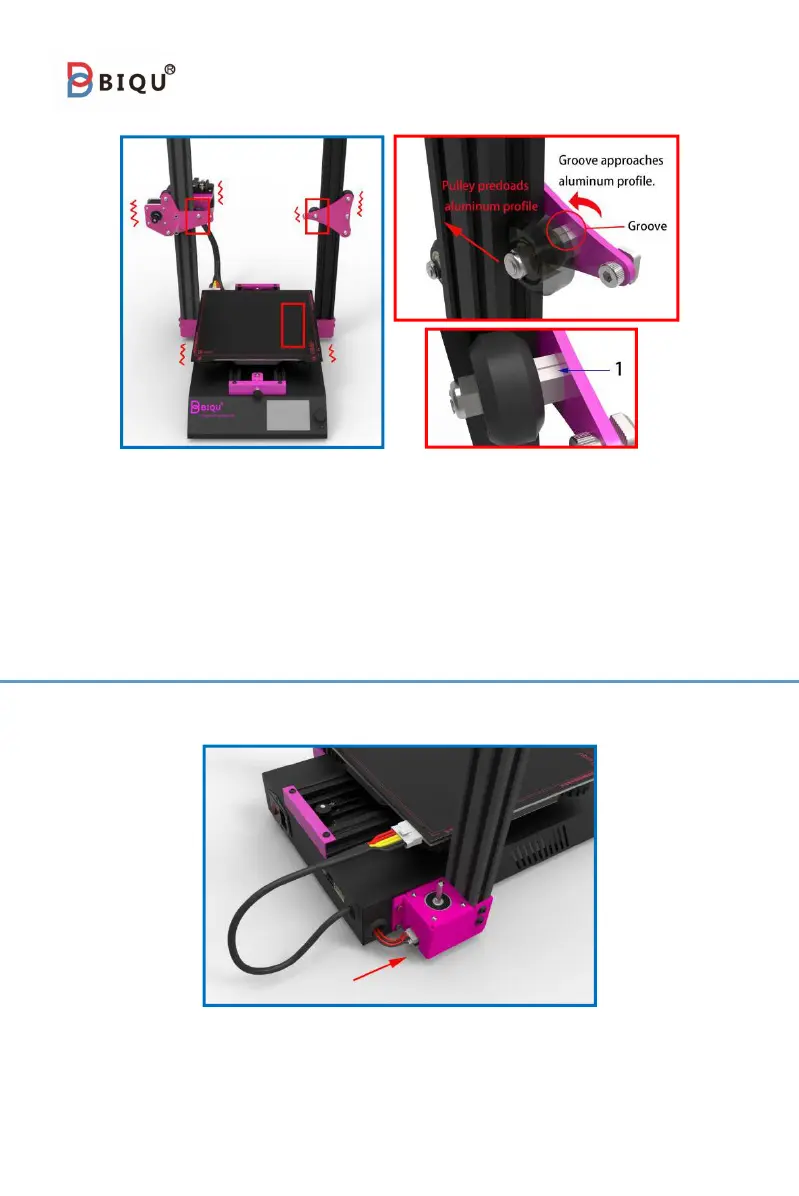

1. Eccentric nut
Awareness: As the picture, please check whether the
interfaces are loose. If they are loose, please tight the eccentric nut
with wrench and make the groove of eccentric nut approach the
aluminum profile. Pulley on eccentric nut will preload aluminum
profile. The printer will be more stable by this way.
Step 7
Connecting the terminal wire on side to the motor’s port.
