BIQU-B1 USER MANUAL
3. Installation equipment

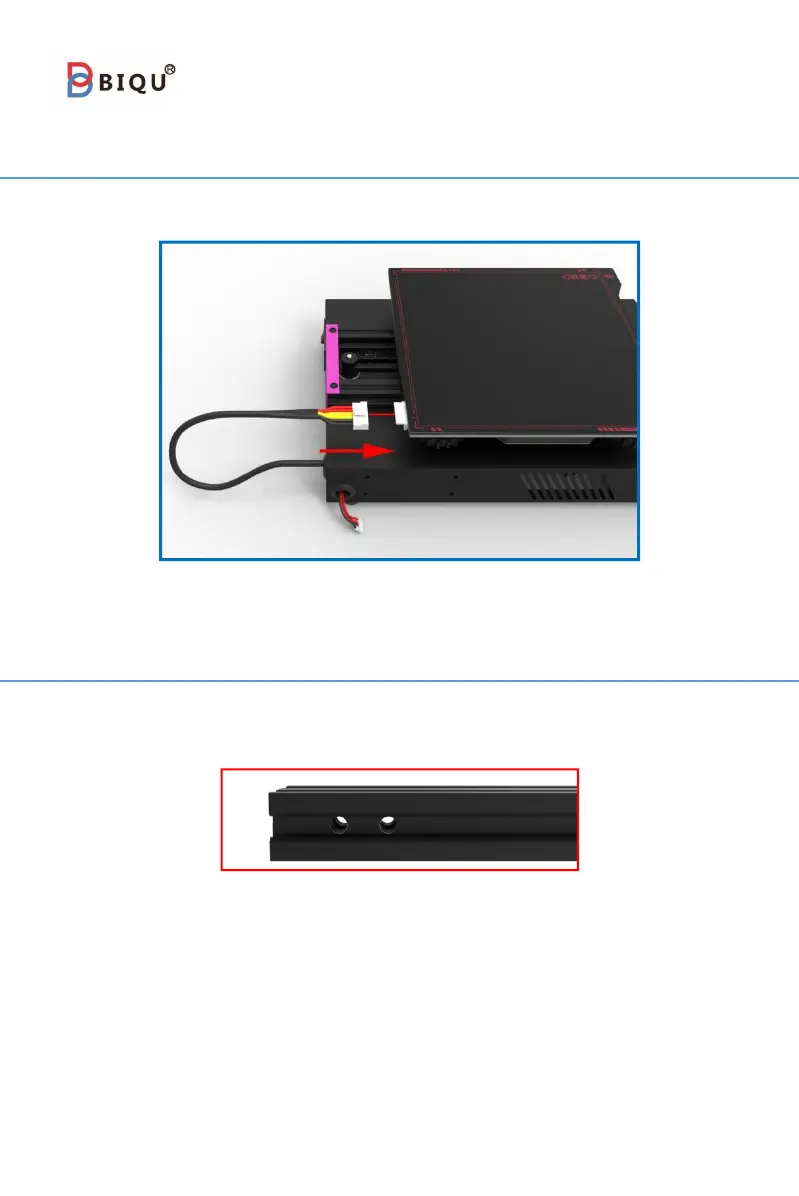

Step 1
Connecting the terminal wire to the socket of the hot bed.
Step 2
There are two M5 threaded holes on the end of the 2040 aluminum
profile,which is used for mounting the M5×16 hex socket head screws.
