WWW.BIQU3D.COM
3. Assembly

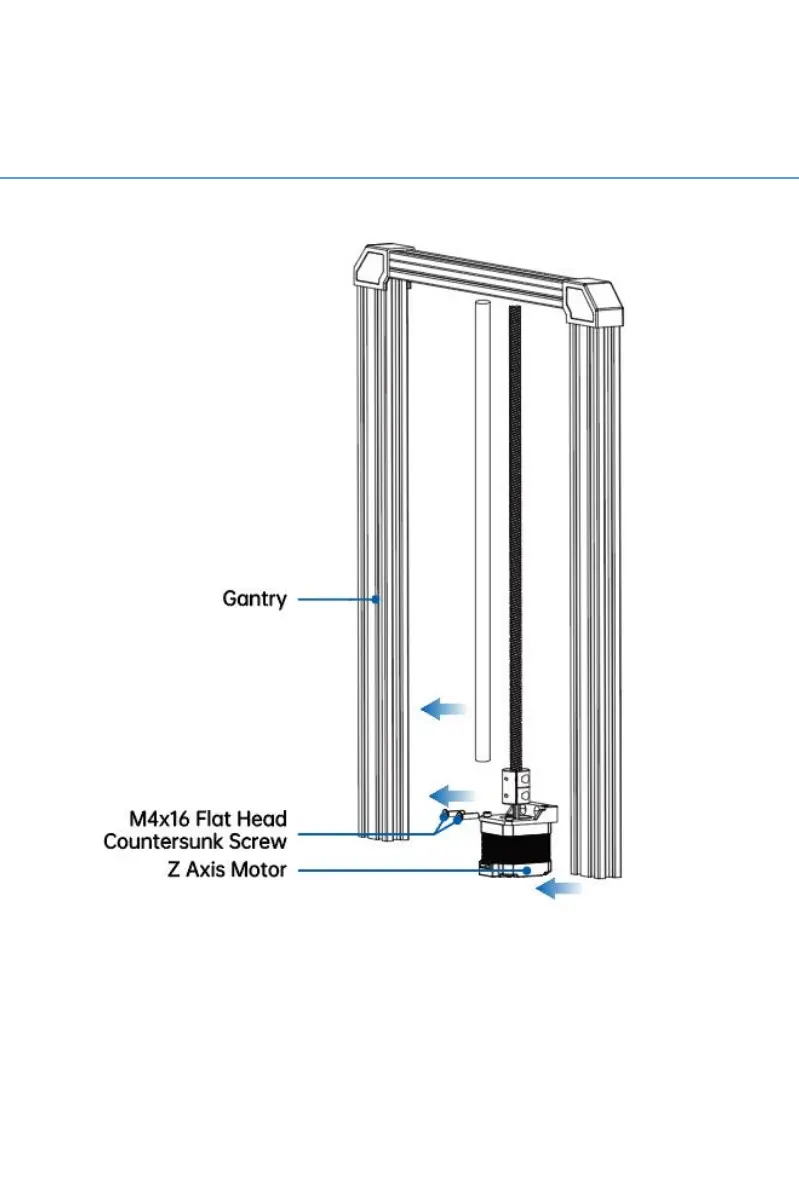

Step 1: Remove the Z Axis Motor from the Gantry
Take out the Z axis motor from the gantry by removing the
two M4x16 screws, and then remove the lead screw cover.
