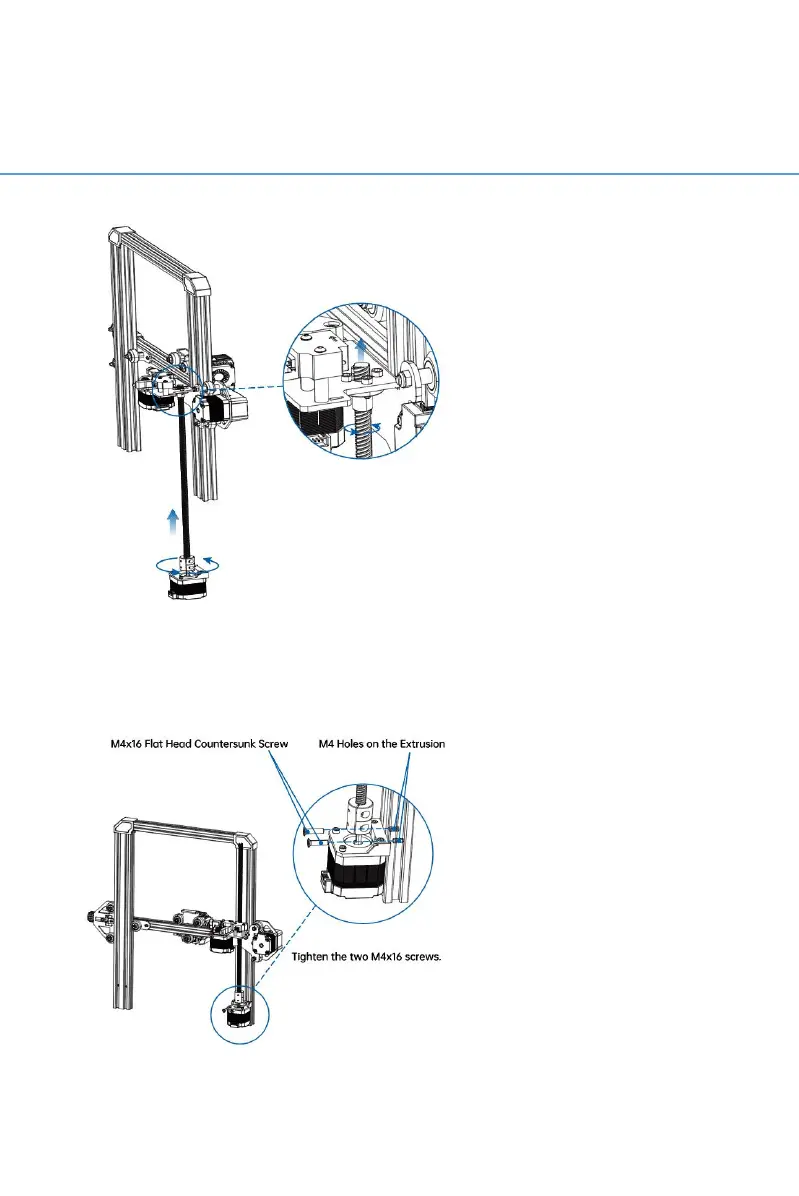

Step 3: Install the Z Axis Motor Back to the Gantry
Insert the lead screw into the nut, and rotate the coupling to
push the lead screw upward until the Z axis motor fixing
holes are aligned with the M4 holes on the gantry.
