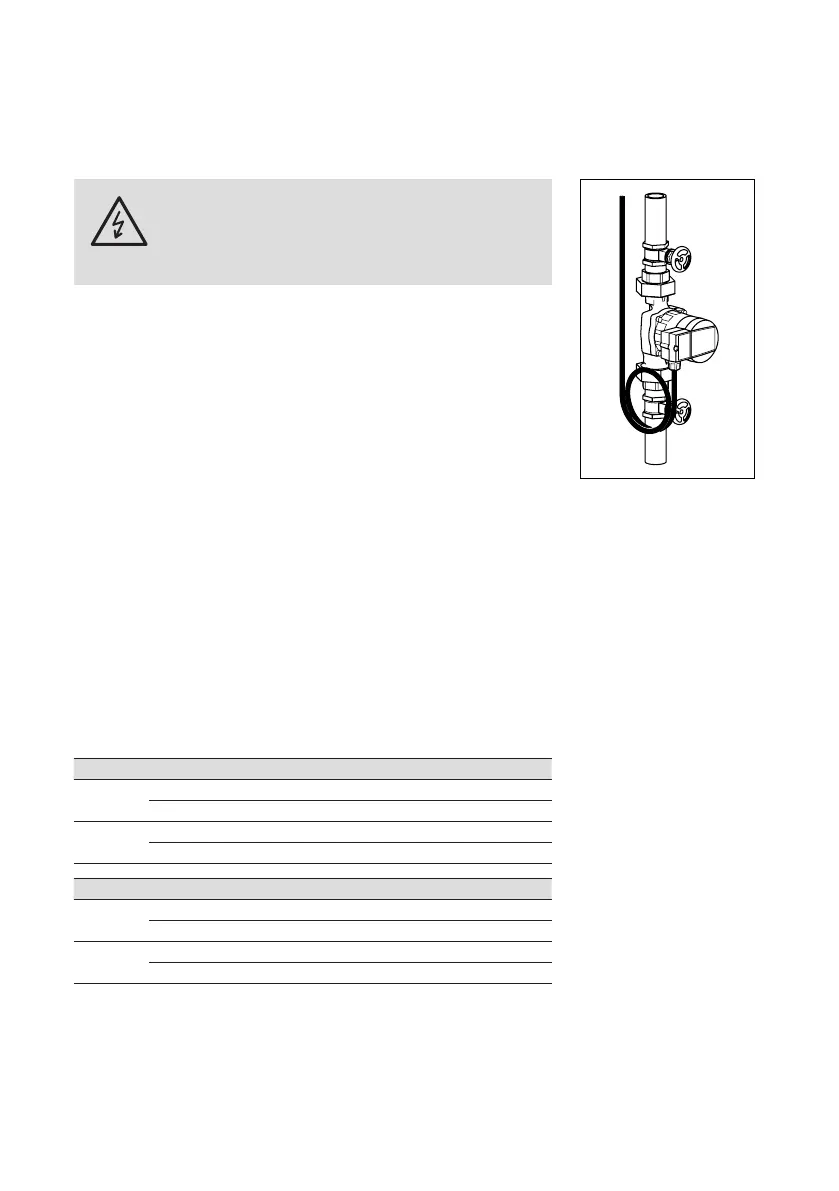

5. Electrical connection
Warning
The electrical connection must be provided by
a technician in coordination with the local utility
company. Observe the NIN (CENELEC) regulations.
At higher water temperatures (above 80 °C), use appropriate
heatproof connecting lines. The connecting line must not touch
the tubing, the pump housing, or the motor housing. Ensure
protection from dripping water and avoid straining cables when
laying in junction box (gland seal). Electrical connection must be
provided from a xed mains supply with a plug-in device or switch
for all poles with at least 3 mm contact opening.
Back-up fuse: (Rated current) max. 10 A, slow-acting
Wire cross-section: max. 1,5 mm
2
The electrical connection must be made in accordance with the
data plate. The electrical connection must be looped to facilitate
exchanges later. A damaged mains supply connection must be
replaced. Make sure that the electric data on the pump’s type
plate correspond with the indicated power supply.
Note: Pay special attention to the protective conductor.
The protective conductor must be longer than the pole conductor
(danger of rupture).
Supply voltage: 1× 230 V +6%/–10%, 50 Hz, PE
AX 10 AX 12 AX 13
Ratet
current
Control 0,05 – 0,18 A 0,05 – 0,19 A 0,05 – 0,38 A
min. 0,05 A 0,05 A 0,05 A
Power Control 4 – 21 W 5 – 22 W 5 – 45 W
min. 4 W 5 W 5 W
AXW 10 AXW 12 AXW 13
Ratet
current
Control 0,05 – 0,08 A 0,05 – 0,19 A 0,05 – 0,38 A
min. 0,04 A 0,05 A 0,05 A
Power Control 4 – 7 W 5 – 22 W 5 – 45 W
min. 4 W 5 W 5 W
961085_00
Elektr Anschluss Kabel
AX12, AX13
BA
CH-3110 Münsingen
Biral AG
Massstab
Zeichnungsnummer
1:4
Pos
Stück
III
Datum
Gegenstand
Änd.Index Visum
Modell/Art.Nr
Material Bemerkung
Ersatz für:
961085
Änd.Index
Freigabe
geprüft
gezeichnet 28.11.2007
PDM_Nr TD-0008406
über 400 bis 1000
± 0.8
über 6 bis 30
± 0.2
über 30 bis 120
± 0.3
über 120 bis 400
± 0.5
0.5 bis 6
± 0.1
00
01.02.2008
01.02.2008
ts
ts
ts
Rauhwerte Ra 12.5
Rauheitsklassen N10 N9
6.3
N8
3.2
N7
1.6
N6
0.8
N5
0.4
Allgemeintoleranzen ISO 2768-mK
Ersetzt durch:
