KB-206-1 15
8 Commissioning
For detailed description, please refer to the operating
instructions KB-104 of the compressor:
• Check tightness
• Evacuate
• Refrigerant charge
• Checks before starting
• Compressor start
• Settings on the controller
8.1 Setting the controller
Before commissioning the condensing unit, the follow-
ing parameters must be set:
• Refrigerant used
• Retrofitted options
• Provided control according to suction pressure or
cold store temperature
Moreover, parameters for controlling the speed of the
fan, influencing the [ECOLITE] controller via the super-
ior system controller, etc., can be adjusted.
The ECOLITE controller has four function keys for the
operation and the diagnostics and a colour display on
the top of the device.

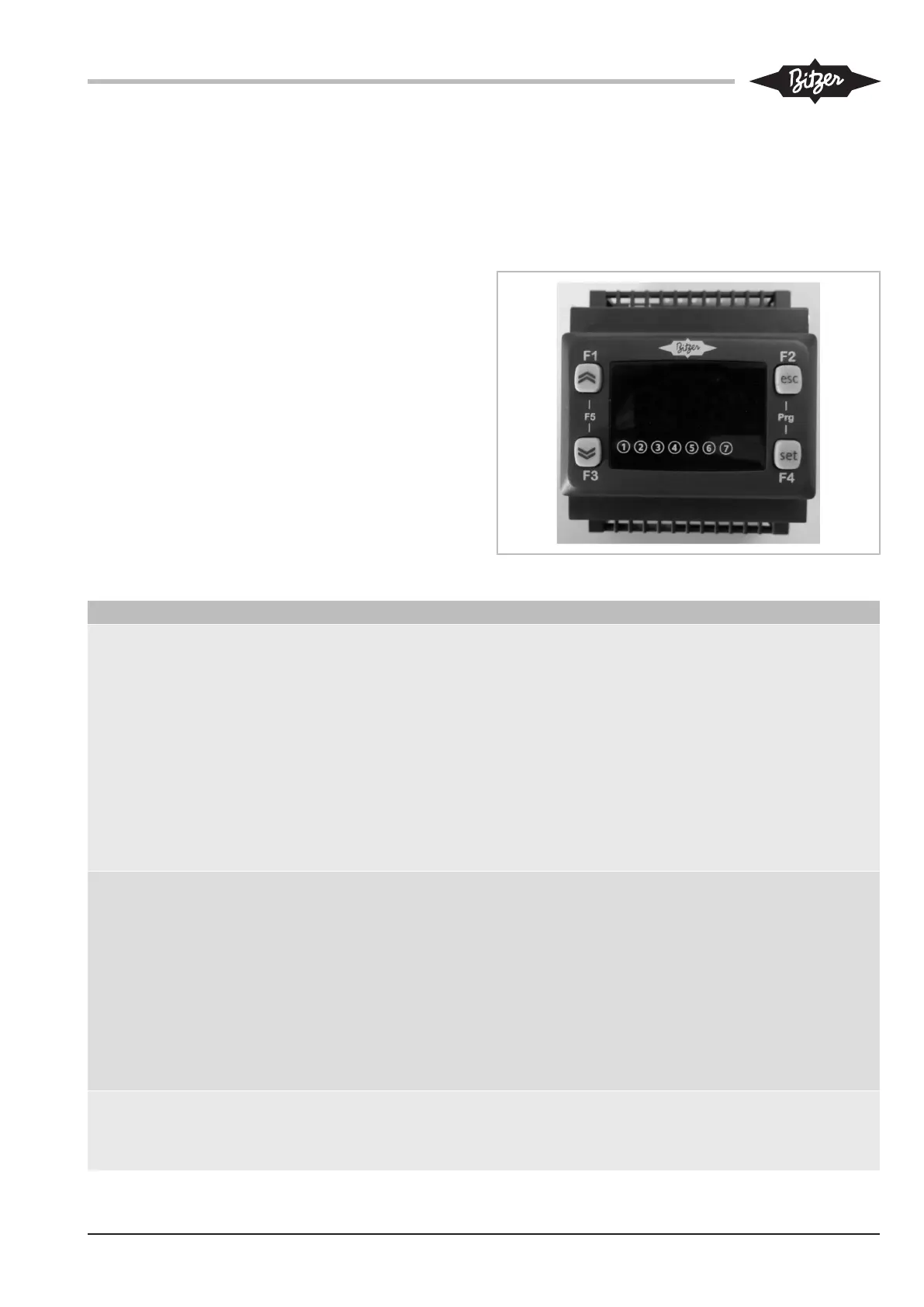

Fig.12: ECOLITE Controller user interface
Menu Functions
Status menu • Activation / deactivation of the ECOLITE controller
• Display of the status of the condensing unit
• Display of the active set points
• Display of the current measured values (analogue inputs of the controller)
• Display of the current states of the digital inputs of the controller
• Display of the operating time for compressor and CR II capacity regulator
• Display of the historical alarms (20 memory locations)
• Display and setting of date and time of the controller
• Display of the active alarm
Programming menu • Settings regarding the system configuration and the ECOLITE condensing unit
• Settings regarding the control of the compressor and the CR II
• Settings regarding the control of the fans
• Settings for the cold store control
• Settings for the emergency service
• Settings for the monitoring of the application limits
• Setting the function of the digital inputs for external signals
• Setting the function of the signalling LEDs 1 to 7 of the display
BIOS menu • Display of the status of the analogue inputs of the controller
• Display of the status of the digital inputs of the controller
• Display of the status of the analogue outputs of the controller
