6 Mounting
6.1 Transporting the condensing unit
Fix either screw-in eyes or rails with screws on the four
load suspension points. The screw-in eyes and screws
must not exceed a maximum screw-in thread length of
30mm because otherwise the condenser may become
damaged! Screw-in eyes, screws and rails are not in-
cluded in the scope of delivery.
Lift the condensing unit either by means of the lifting
slings by crane or forklift or by hand directly on the
rails.

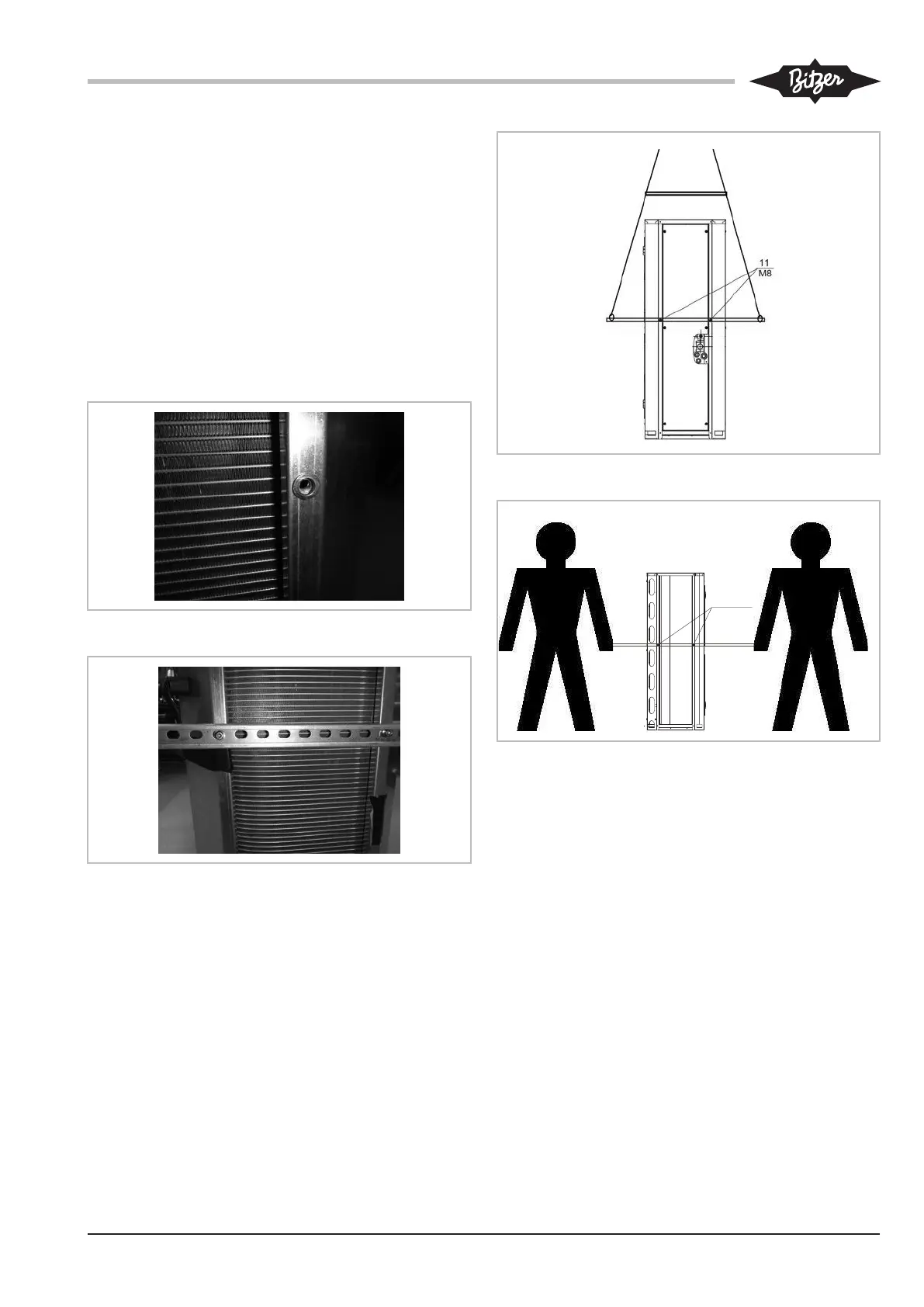

Fig.2: Load suspension points M8x30 (max.)
Fig.3: Transport rail
Fig.4: Lifting on lifting slings by forklift or crane
Fig.5: Lifting on transport rail by hand
6.1.1 Transport locks for condensing units
To avoid transport damage to condensing units in their
state of delivery, the vibration dampers of the com-
pressors are blocked by transport locks. It is absolutely
necessary to remove or loosen these locks after mount-
ing. For this, see the operating instructions of the com-
pressor KB-104.
6.2 Installing the condensing unit
The place of installation must have sufficient load-car-
rying capacity and must be level and vibration-resistant.
The minimum distances to fixed delimiting surfaces
must be complied with. Avoid a short-circuit of the air
flow or obstacles in the air flow of the condenser fans!
During the system design, take the minimum and max-
imum load into account. Execute the pipe works and
rising lines according to the generally known rules for
compound systems. Contact BITZER if the system is
