BIXOLON Srp-275III User Manual

Rev. 1.01
- 11 -
SRP-275III

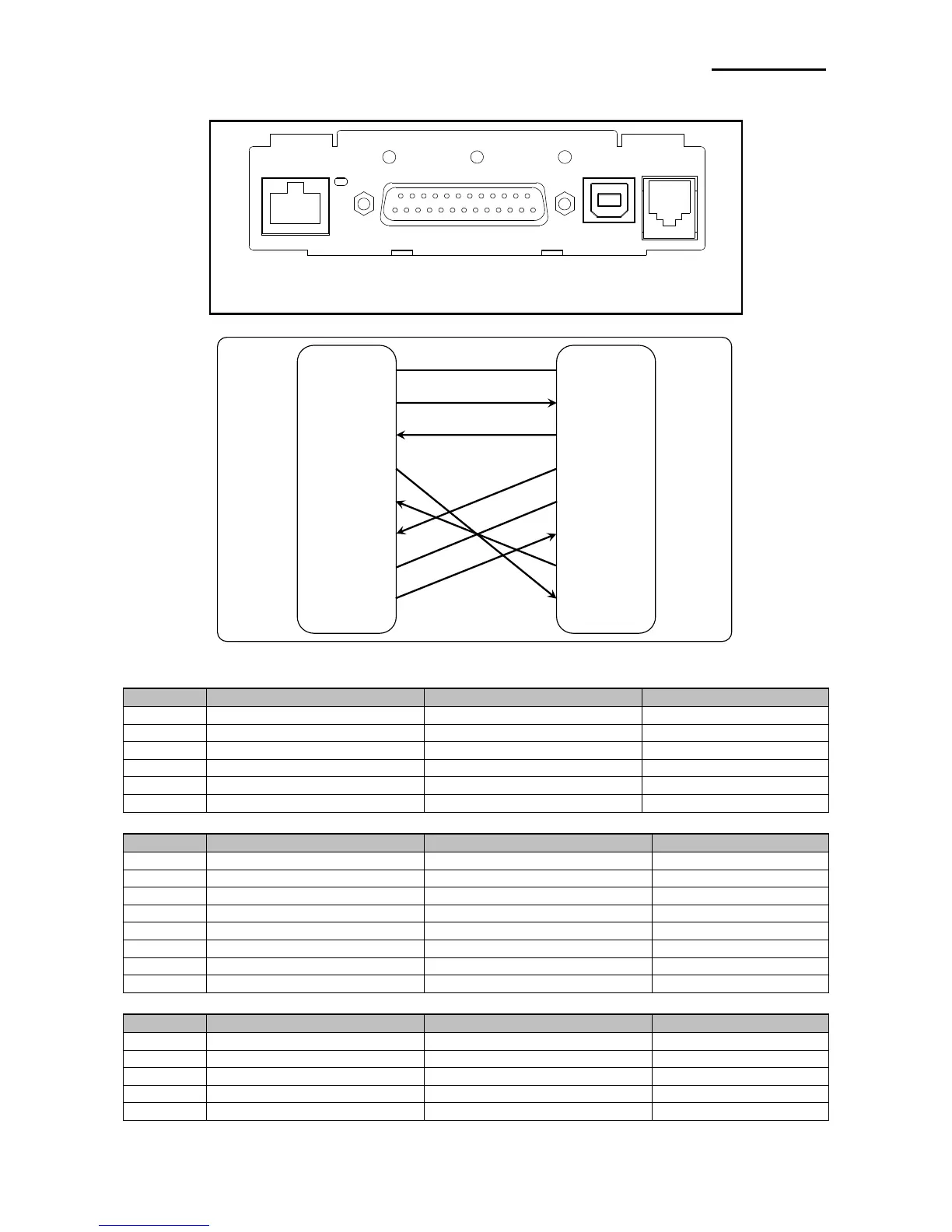

2-2-1 Serial Interface (RS-232C) + Ethernet + USB : OES Model
Ethernet
Interface connector
USB
Drawer kick-
out
Connector
(F.G) 1
(TXD) 2
(RXD) 3
(RTS) 4
(CTS) 5
(DSR) 6
(S.G) 7
(DTR) 20
1 (F.G)
2 (RXD)
3 (TXD)
4 (DTR)
5 (S.G)
6 (DSR)
7 (RTS)
8 (CTS)
PRINTER
SIDE
(25Pin)
HOST
SIDE
(9Pin)
• Serial
Pin No.
Signal name
Direction
Function
1
FG
-
Frame Ground
2
TxD
Output
Transmit Data
3
RxD
Input
Receive Data
6
DSR
Input
Data Set Ready
7
SG
-
Signal Ground
20
DTR
Output
Data Terminal Ready
• Ethernet
Pin No.
Signal name
Assignment (Color)
Function
1
TxD+
White with orange stripe
Transmit +
2
TxD-
Solid orange
Transmit -
3
RxD+
White with green stripe
Receive +
4
NC
Solid blue
-
5
NC
White with blue stripe
-
6
RxD-
Solid green
Receive -
7
NC
White with brown stripe
-
8
NC
Solid brown
-
• USB
Pin No.
Signal name
Assignment (Color)
Function
Shell
Shield
Drain wire
Frame ground
1
VBUS
Red
NC
2
D-
White
Differential data line
3
D+
Green
Differential data line
4
GND
Black
Signal ground

BIXOLON Srp-275III Specifications

General

Ethernet LAN	No
USB port	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired
Parallel ports quantity	1
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 80 %
Product color	Gray
Type	POS printer
Print speed	5.1 lps
Print technology	Dot matrix
Maximum resolution	80 x 144 DPI
Flash memory	16 MB
Internal memory	64 MB
Built-in sensors details	Paper End, Paper Near End, Wall Mounting Paper Near End, Rear Cover Open, Black Mark
Media thickness	0.06 - 0.085 mm
Maximum roll diameter	83 mm
Supported paper width	76.5 mm
Maximum printing width	63.5 mm
Power source type	AC
Mobile operating systems supported	Android, iOS
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	239 mm
Width	160 mm
Height	157 mm
