BIXOLON Srp-275III User Manual

Rev. 1.01
- 12 -
SRP-275III

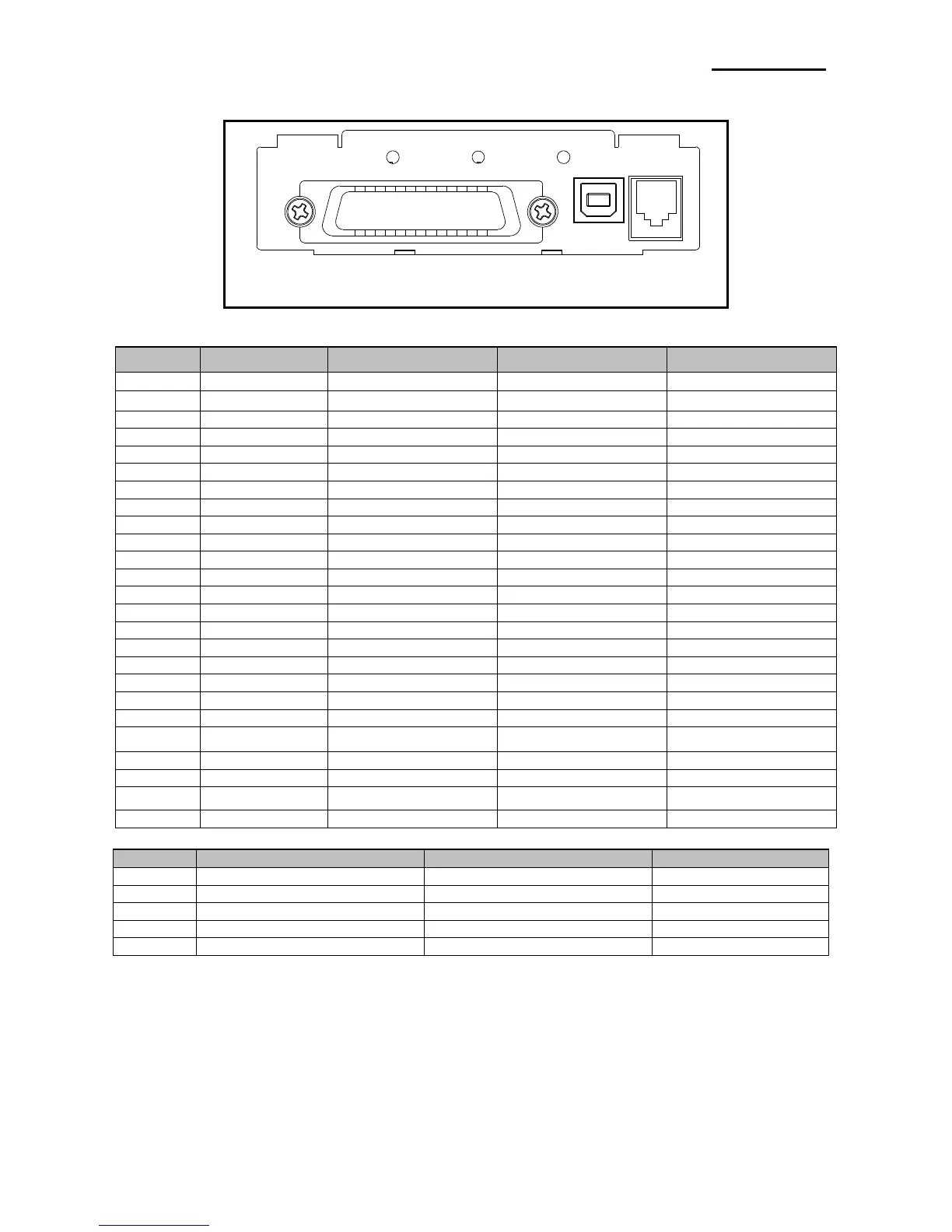

2-2-2 Parallel Interface (IEEE1284) + USB : OP Model
Interface connector
USB
Drawer kick-
out
Connector
• Parallel
Pin no.
Source
Compatibility mode
Nibble mode
Byte mode
1
Host
nStrobe
HostClk
HostClk
2
Host / Printer
Data 0 (LSB)
-
Data 0 (LSB)
3
Host / Printer
Data 1
-
Data 1
4
Host / Printer
Data 2
-
Data 2
5
Host / Printer
Data 3
-
Data 3
6
Host / Printer
Data 4
-
Data 4
7
Host / Printer
Data 5
-
Data 5
8
Host / Printer
Data 6
-
Data 6
9
Host / Printer
Data 7 (MSB)
-
Data 7 (MSB)
10
Printer
nAck
PtrClk
PtrClk
11
Printer
Busy
PtrBusy / Data3,7
PtrBusy
12
Printer
Perror
AckDataReq / Data2,6
AckDataReq
13
Printer
Select
Xflag / Data1,5
Xflag
14
Host
nAutoFd
HostBusy
HostBusy
15
-
NC
ND
ND
16
-
GND
GND
GND
17
-
GND
FG
FG
18
Printer
Logic-H
Logic-H
Logic-H
19~30
-
GND
GND
GND
31
Host
nInit
nInit
nInit
32
Printer
nFault
nDataAbail /
nDataAvail
33
-
NC
ND
ND
34
Printer
NC
ND
ND
35
Printer
NC
ND
ND
36
Host
nSelectln
1284-Active
1284-Active
• USB
Pin No.
Signal name
Assignment (Color)
Function
Shell
Shield
Drain wire
Frame ground
1
VBUS
Red
NC
2
D-
White
Differential data line
3
D+
Green
Differential data line
4
GND
Black
Signal ground

BIXOLON Srp-275III Specifications

General

Ethernet LAN	No
USB port	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired
Parallel ports quantity	1
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 80 %
Product color	Gray
Type	POS printer
Print speed	5.1 lps
Print technology	Dot matrix
Maximum resolution	80 x 144 DPI
Flash memory	16 MB
Internal memory	64 MB
Built-in sensors details	Paper End, Paper Near End, Wall Mounting Paper Near End, Rear Cover Open, Black Mark
Media thickness	0.06 - 0.085 mm
Maximum roll diameter	83 mm
Supported paper width	76.5 mm
Maximum printing width	63.5 mm
Power source type	AC
Mobile operating systems supported	Android, iOS
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	239 mm
Width	160 mm
Height	157 mm
