BK Precision 1696B - External Timed Program; Internal Preset Memory

20

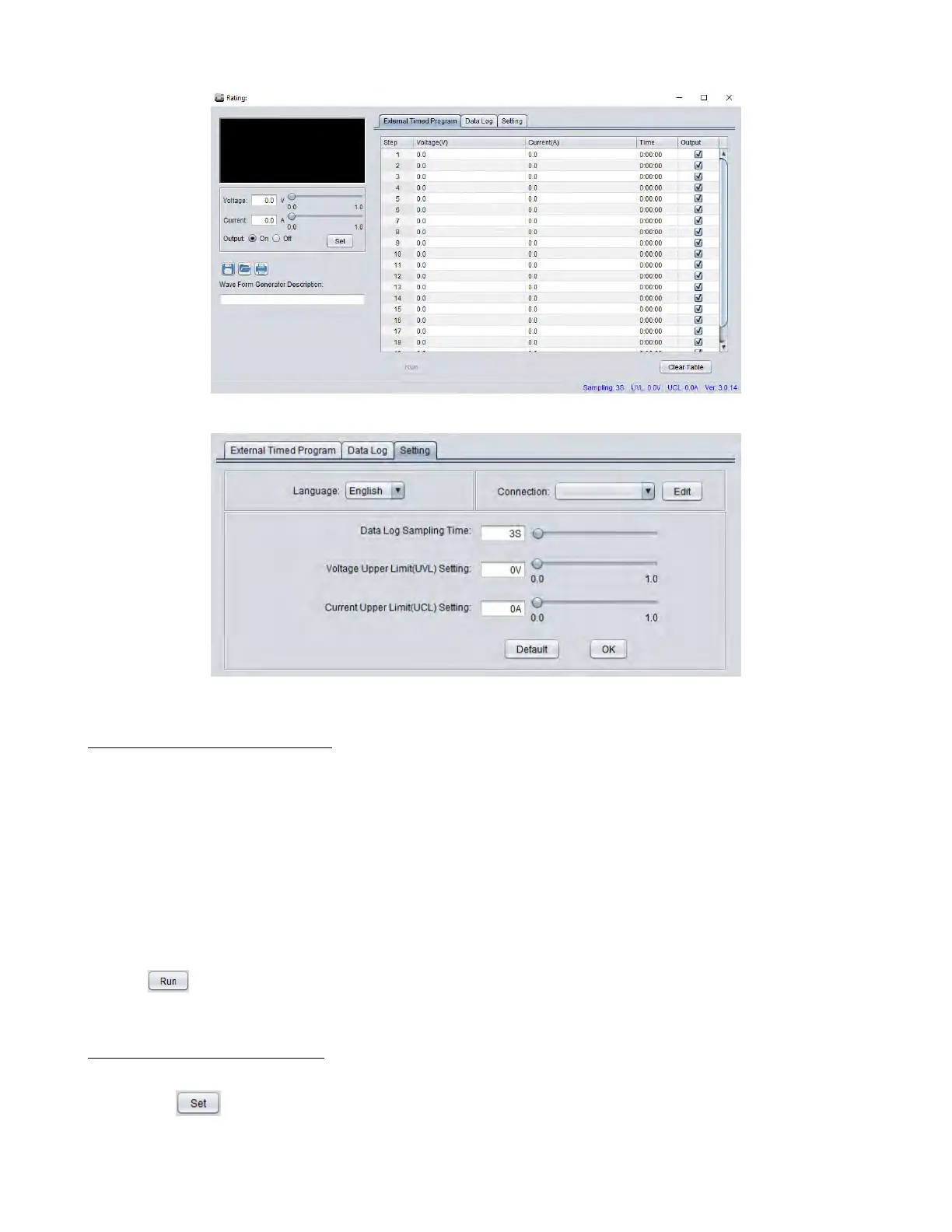

Figure 7.11
Figure 7.12
7.4.4 External Timed Program
External Timed Program is completely controlled by the PC. The PC counts the step time and changes the specic
voltage and current levels of the power supply. Congure up to 20 user dened voltage, current, and duration steps.
1. Click on the “External Timed Program” tab. See Figure 7.20
2. Double-click on the desired cell and use the slider to set voltage and current values. Figure 7.21
3. Set step duration with the up/down buttons. The time can be set from 0 up to 9 hours 59 minutes and 59 seconds.
If time set left at 0 the step will be skipped. See Figure 7.22
4. Set the number of cycles from 0-999. Leave this setting at 0 for continuous loop.
5. Click
to start running the cycle.
7.4.5 Internal Preset Memory
Preset up to 9 voltage and current combinations into memory for quick output. Set voltage and current with the slider
bar and click to conrm. See Figure 7.23
