21

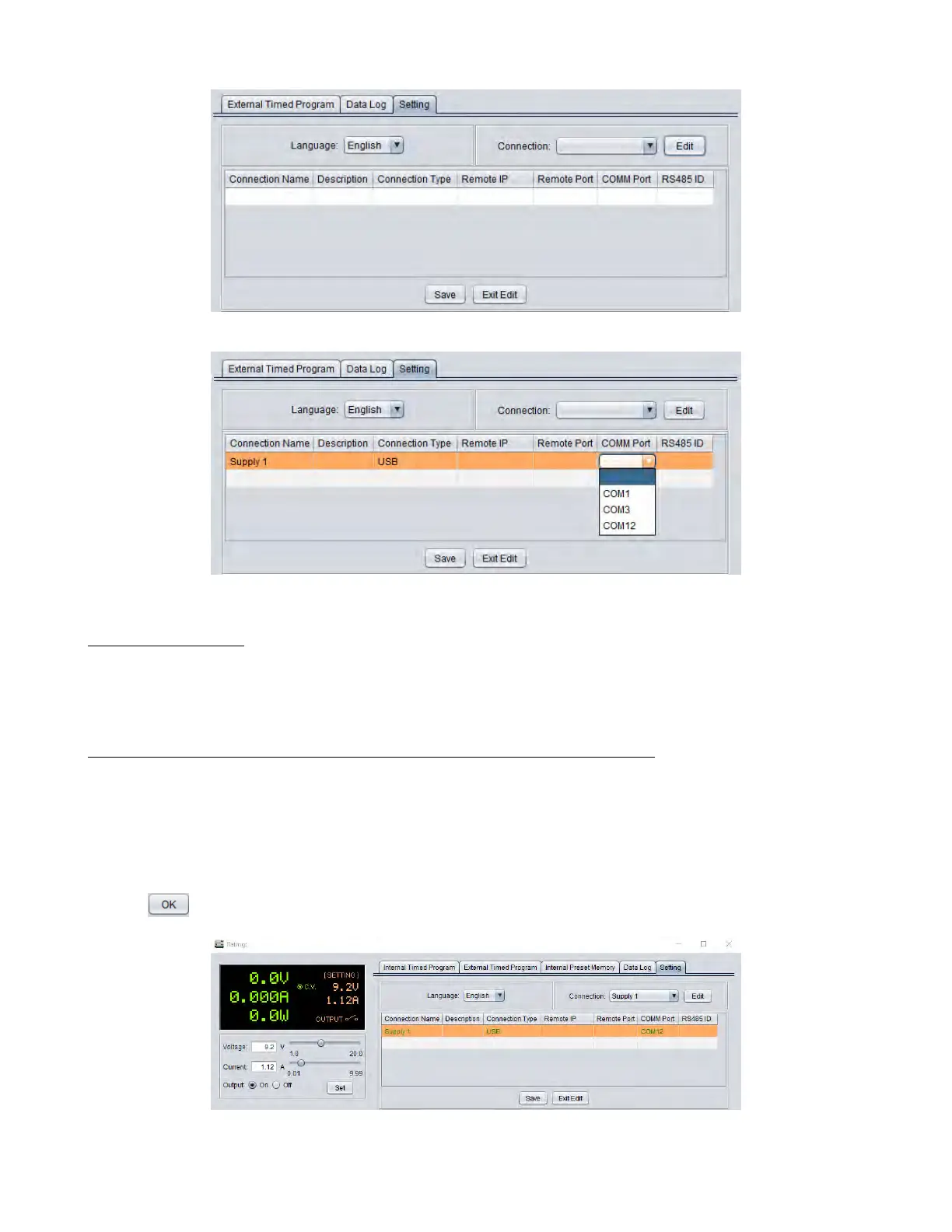

Figure 7.13
Figure 7.14
7.4.6 Data Logging
Data Log allows can be used to view present or stored output data, see Figure 7.24. Data can be saved and exported
as .CSV spreadsheet le or sent to a printer.
7.4.7 Data Log Sampling Time and Voltage Upper Limit (UVL) Setting
Under the “Setting” tab:
• Adjust the data log sampling time. 1S means the voltage, current, and power reading will be recorded every 1 second.
• Set the Voltage Upper Limit (UVL) and general output setting and timed programming setting will not exceed this
limit. See Figure 7.25
• Click to save.
Figure 7.15
