BK Precision 1785B User Manual

20
Chapter 4 Remote Operation Mode
The DB9 interface connector on the rear panel of the power supply can be transferred to RS-232
interface, the following information will tell you how to use the computer to control the output of the
power supply.

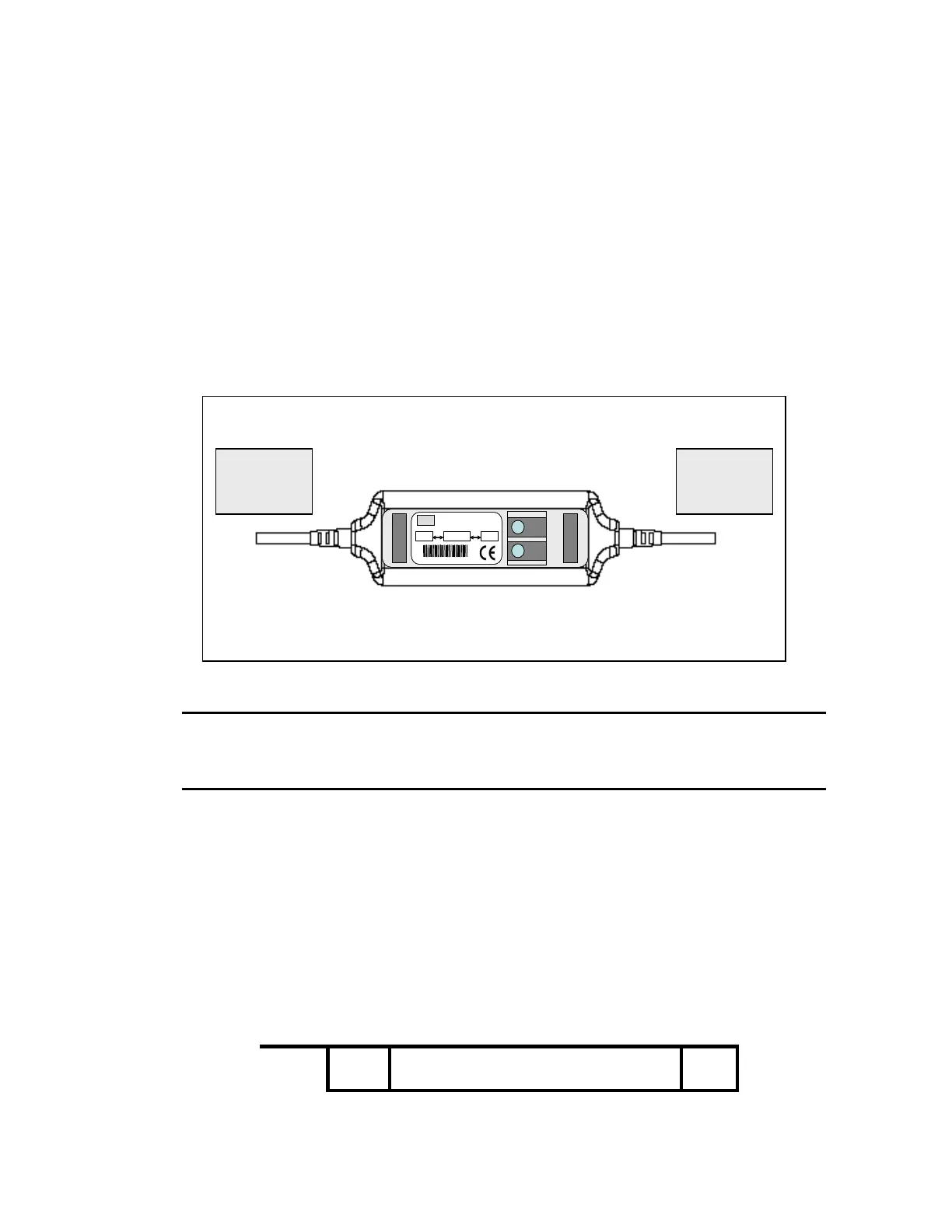

4.1 IT-E131 Communication cable
The DB9 interface connector on the rear panel of power supply is TTL voltage level; you can use
the communication cable (IT-E131) to connect the DB9 interface connector of the power supply
and the RS-232 interface connector of computer for the communication.
Computer side TTL→RS232 Cable (IT-E131) PS side
PC Load
IT-E131 communication cable
COMPUTER
INSTRUMENT
RX
TX
IT-E131 ISOLATED
COMMUNICATION CABLE
TTL(5V)RS232 ISOLATION
859666668889942311
IT
COMPUTER
INSTRUMENT
RX
TX
IT-E131 ISOLATED
COMMUNICATION CABLE
TTL(5V)RS232 ISOLATION
859666668889942311
IT
Power
supply
PC
4.2 Communication setting
Before using the remote operation mode, please make sure that the baud rate and communication
address in power supply are the same as in the computer software, otherwise, the communication will
fail, you can change the baud rate and communication address from the front panel or from computer.
1． Address: the range is from 0 to 254，default setting is 0
2． Baud rate: 4800,9600,19200 and 38400 are selectable, default setting is 4800
3． Data bit：8 bit
4． Stop bit：1
5． Parity：None
Start
Bit
8 Data Bits
Stop
Bit
PARITY = NONE
Note:
It will not work if you connect the DB9 interface connector of the power
supply to the RS232 interface connector of computer directly by a standard
RS232 cable. Please use IT-E131 to connect them.
