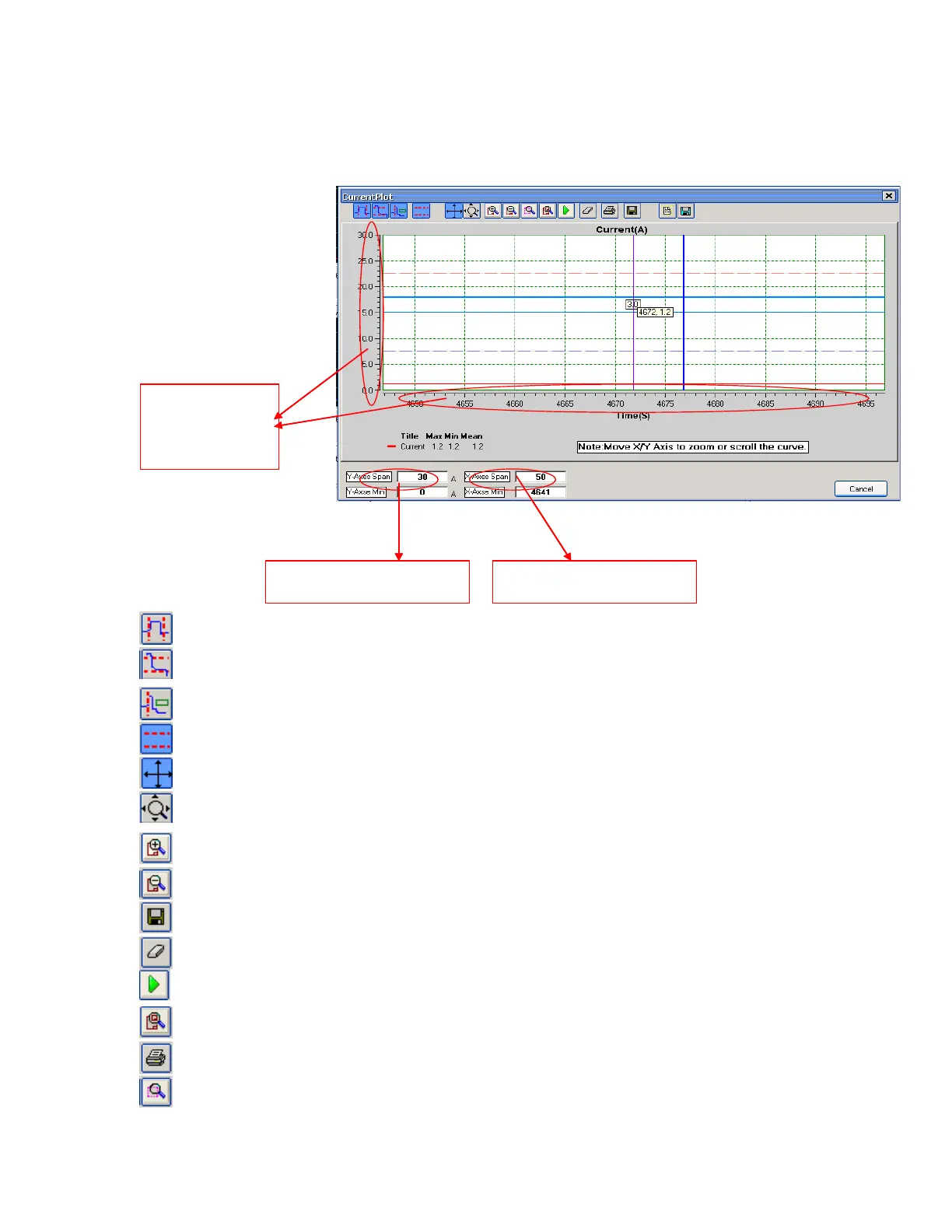

5.3.7 Chart Description
The voltage and current chart can help you to analyze voltage and current changes more easily.
We take the voltage chart as the example to let you know how to use it. The chart window is as follows:
Click here and
move to zoom
in/out axes or
scroll axes
To set the Y-Axes Span To set the X-Axes Span
Click here and
move to zoom
in/out axes or
scroll axes
To set the Y-Axes Span To set the X-Axes Span
Vertical marker
Horizontal marker
XY Value marker
Limit range between the minimum value and maximum value.
Scroll axes mode
Zoom in/out axes mode
Zoom out
Zoom in
Save the chart as a .BMP file.
Clear all data
Resume tracking
Auto scale
Print the chart
Zoom rectangle
