BK Precision 8500 User Manual

Installation
Inspection
Items you should have received
When you open the box containing the instrument, you should find the following items:
1. The DC Load instrument
2. Power cord
3. User manual
4. Installation CD with application software PV8500
5. TTL to RS-232 serial converter IT-131
6. Calibration report
Instrument location
This instrument is intended for indoor use in a pollution degree 2 environment. Please refer to the
specifications table for the allowable environment operating limits.
Significant power may be dissipated in the DC Load, which includes one or more thermostatically-
operated fans. The fans draw air through the bottom and sides and exhaust it out the back. It is
important to allow at least 25 mm (1 inch) of clearance on all sides of the instrument so adequate
cooling airflow can be maintained.
CAUTION
Do not block the fan exhaust at the rear of the load.

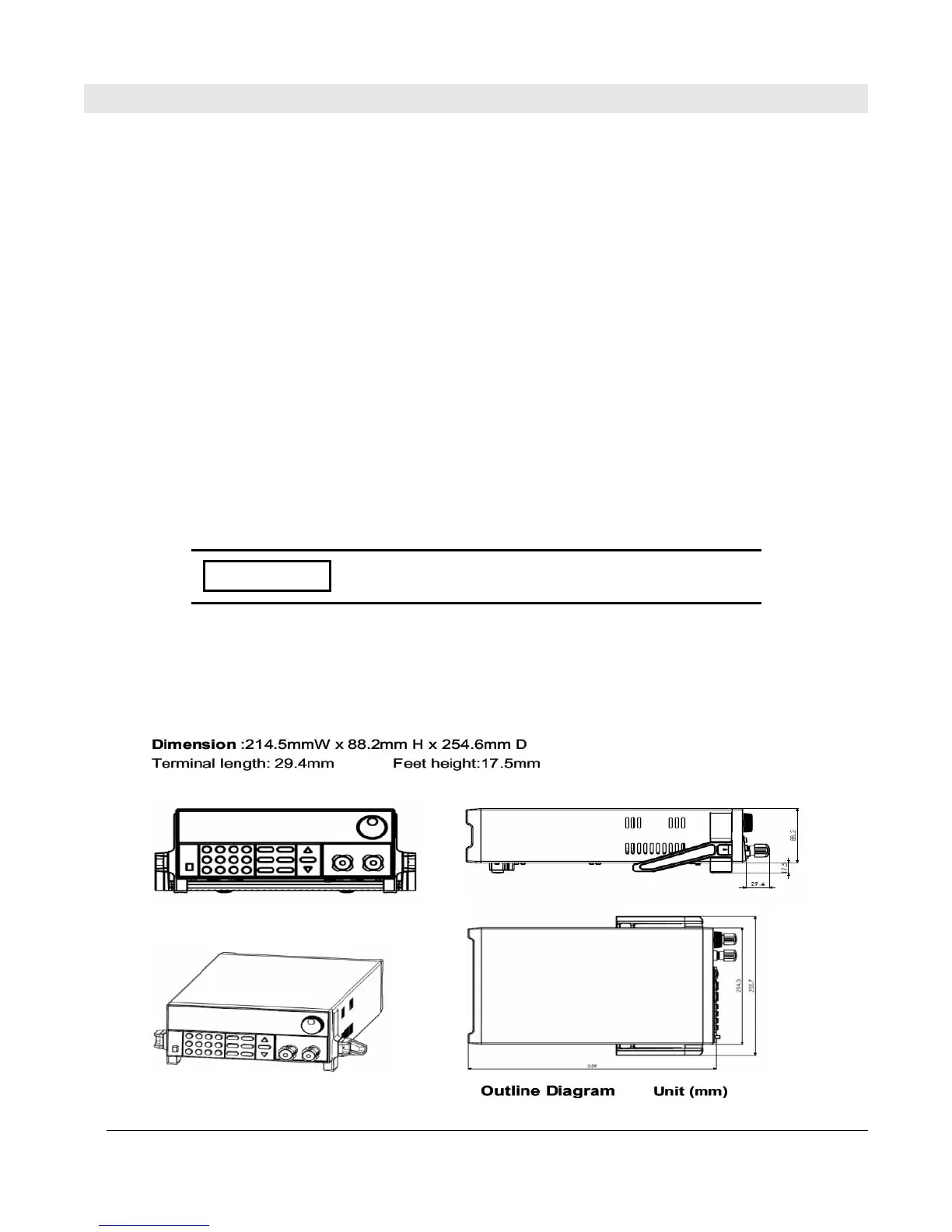

Outline Drawings
All dimensions are in millimeters (mm).
Models: 8500& 8502
8500 DC Load Series Version: February 4, 2009 Page 23 of 76

BK Precision 8500 Specifications

General

Maximum Power	150 W
Current Range	0-30 A
Load Modes	CC, CV, CR, CP
Input Voltage	100-240 VAC, 50/60 Hz
Voltage Resolution	1 mV
Current Resolution	1 mA
Ripple and Noise (CV)	≤ 10 mVrms
Operating Temperature	0°C to 40°C
Storage Temperature	-10°C to 70°C
Interface	RS232
Display	VFD
Voltage Accuracy	0.05% + 5 mV
Current Accuracy	0.1% + 10 mA
Ripple and Noise (CC)	10 mA rms
