Communication
This meter has communication capability. By using the optional RS232
package (AK 87X), with full optical isolated cable and software. This
function will assist user to record data easily.
Referring the following procedures to set up the communication
between your meter and personal computer.
1.
Fixes one side of cable to the meter, and the text side shall be
facing up. To connect the 9-pin’s terminal of cable to
communication port 1 or 2 of personal computer. See the
Figure-
8
.
2.
Press “RS232” button to enable this interface. You will find that
the symbol of “
” is lit on the display.
3.
Execute the software to take the data for your applications.
4.
Be sure to push the snap ends on the cable of meter side for
removing the cable.

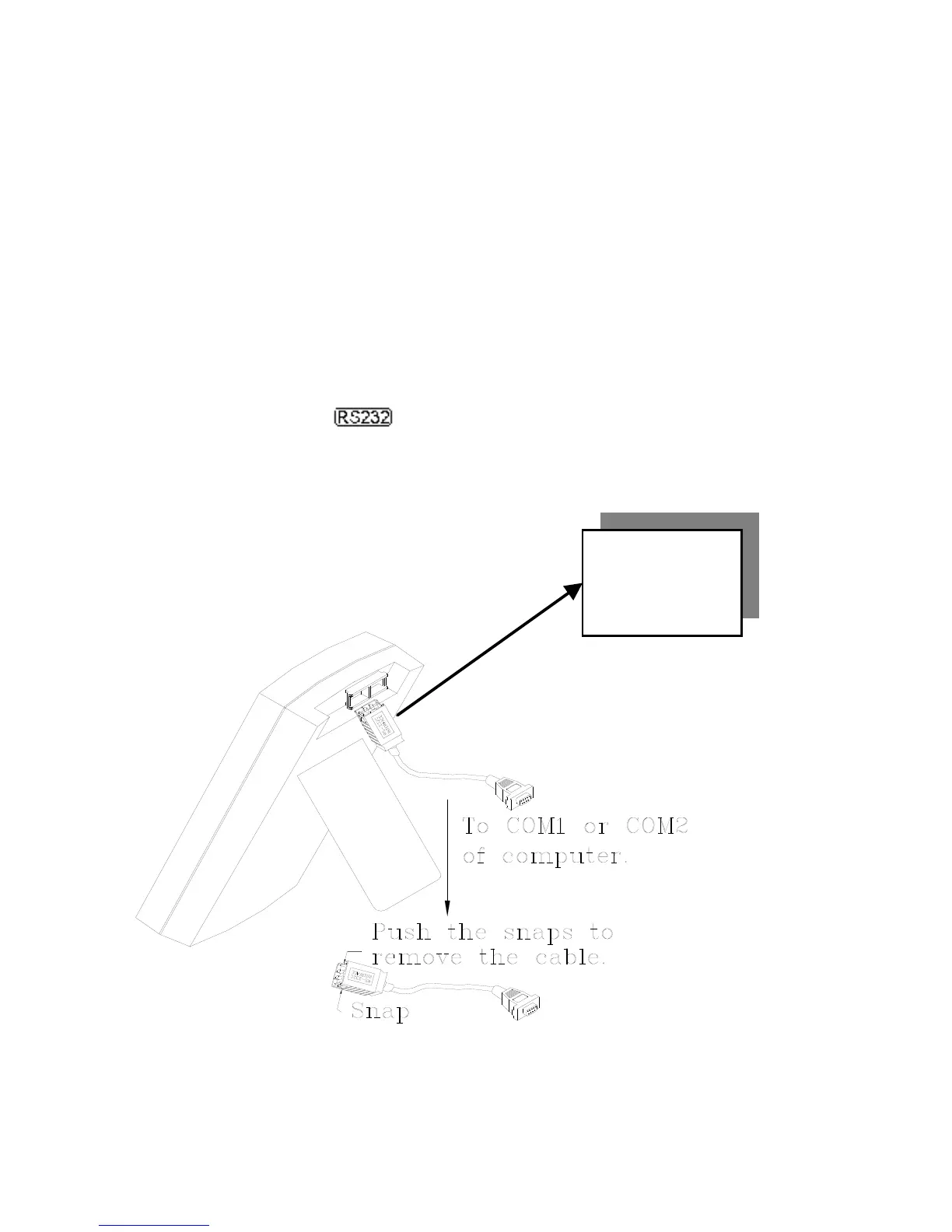

Figure-8. Cable Connection Of Communication
