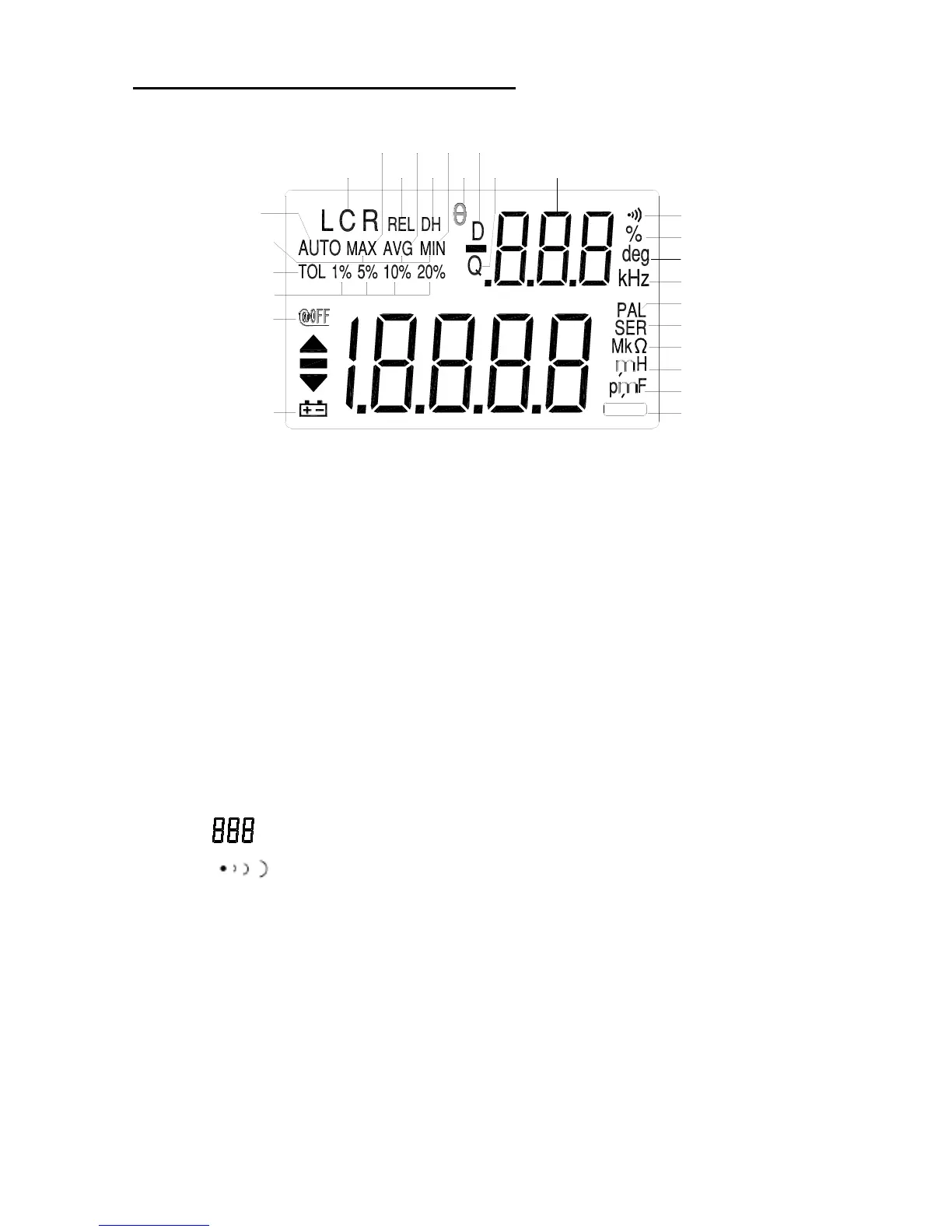

Figure 2. LCD Display.
1.
AUTO:
Auto-ranging indicator
2.
LCR:
L, C or R function indicator
3.
MAX:
Maximum reading indicator
4.
AVG:
Average reading indicator
5.
REL:
Relative mode indicator
6.
MIN:
Minimum reading indicator
7.
DH:
Data hold indicator
8.
Θ:
Phase angle indicator (Model-A only )
9.
Q:
Quality factor indicator
10.
D:
Dissipation factor indicator
11.
:
Secondary display
12.
:
Beeper tone indicator for tolerance mode
13.
%:
Tolerance (percentage) indicator
14.
deg:
Phase Angle degree indicator (Model-A only )
15.
kHz:
Frequency indicator
16.
MAX AVG MIN:
Recording mode indicators
17.
TOL:
Tolerance mode indicator
18.
1%5%10%20%:
Tolerance sorting (percent) indicator
