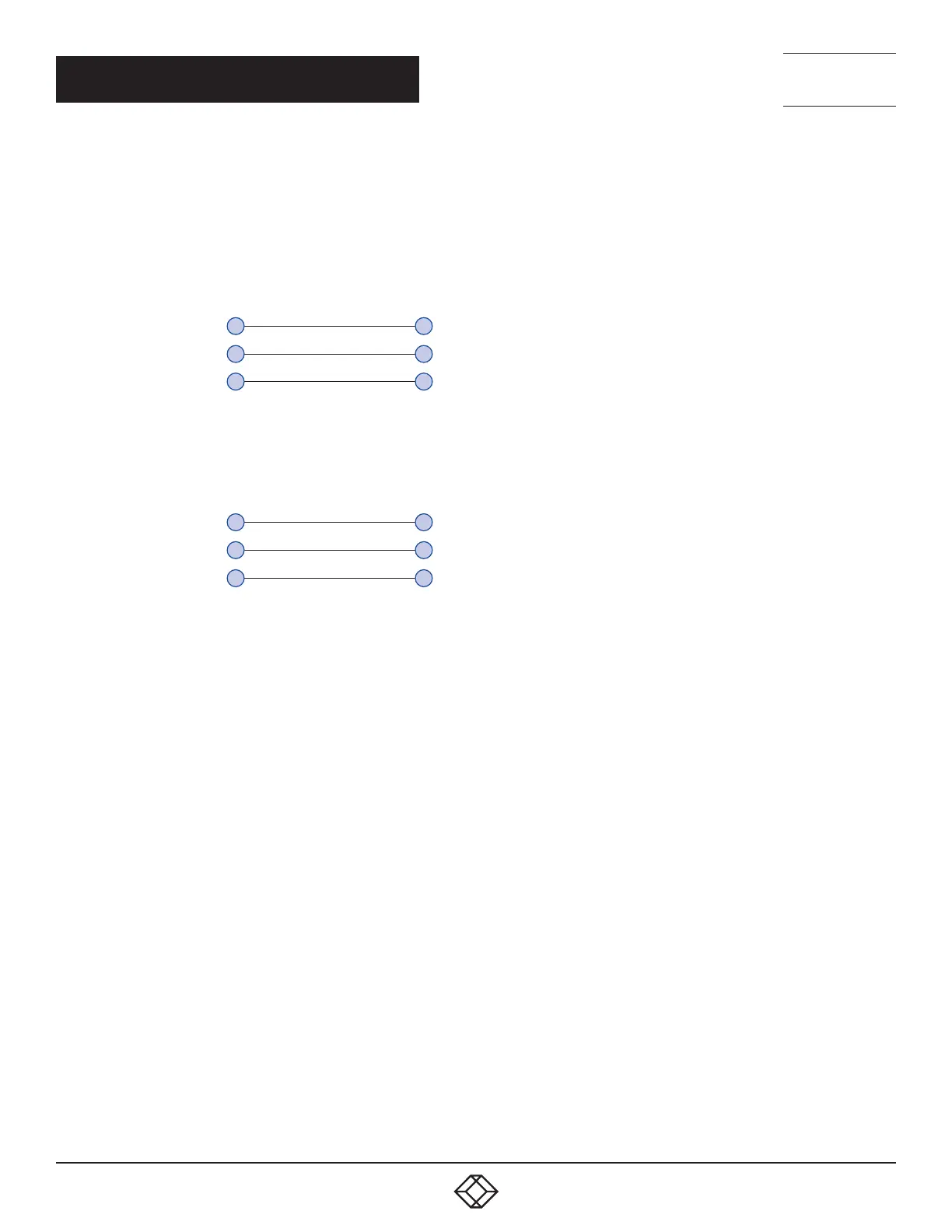

SERIAL REMOTE CONTROL AND FLASH UPGRADE CABLE (8P8C)
8p8c
connector
D-Type female
9 way
TXD RXD
3
2
3
5
RXD
GND
TXD
GND
SERIAL REMOTE CONTROL AND FLASH UPGRADE CABLE (10P10C)
10p10c
connector
D-Type female
9 way
TXD RXD
4
3
3
5
RXD
GND
TXD
GND
The OPTIONS port uses a 10p10c socket which can accommodate both 10p10c connectors as well as the much more common 8p8c
connectors, which are used on Ethernet leads and patch cables. The pin-outs are listed in this section for both types of connectors.
APPENDIX A - CABLE PIN-OUTS
