Black Box ServSwitch KV0004A User Manual

ServSwitch Freedom
724-746-5500 | blackbox.com
Page 10
2.5.2 Rear Panel

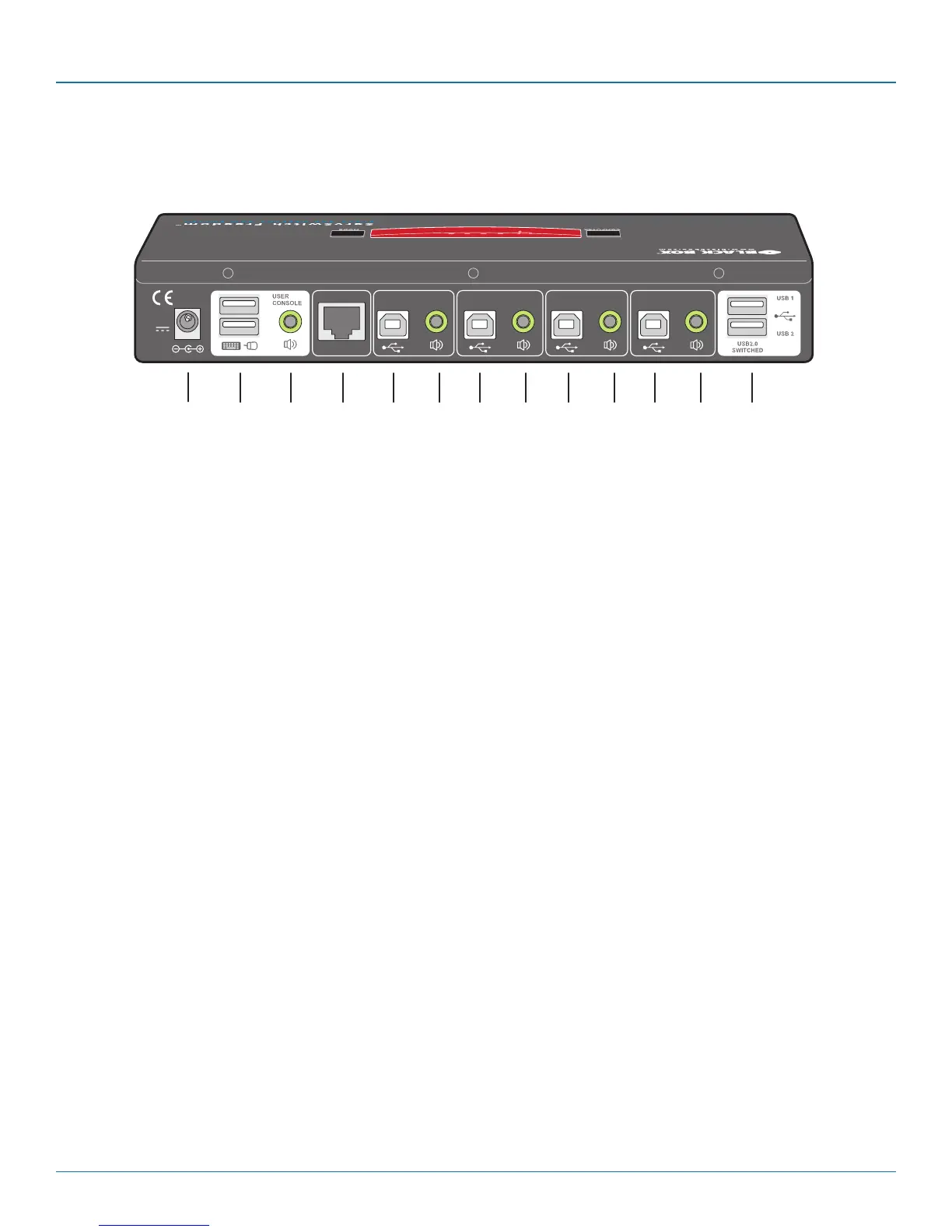

Figure 2-3 shows the rear panel of the unit. Table 2-2 describes its components:
Figure 2-3. Rear panel.
Table 2-2. Rear panel components.
Number Component Description
4 2.5-mm Barrel connector Power input or power supply connects here.
5 (2) USB Type A connectors Connect the console’s USB keyboard and mouse to these connectors.
6 3.5-mm RCA connector User console audio port: Connect optional speakers to this connector.
7 RJ-45port *Optionsport:Thistop10p10cportisusedtoallowexternalcontrolofchannel
switching and also to update the internal firmware when necessary by connecting to
a computer.
8 (4) USB Type B connectors Connect to a USB port on each computer.
9 (4) 3.5-mm RCA connectors Connect to the speaker output socket on each computer (optional connection).
10 (2) USB Type A connectors Connect to the console's USB 2.0 peripheral devices (optional connection).
*NOTE:TheOPTIONSportusesa10p10csocket,whichcanaccommodateboth10p10cconnectorsaswellasthemuch
more common 8p8c connectors, which are used on Ethernet leads and patch cables. The pin-outs for both types of
connectors are listed in Appendix C.
4
5 6 7 8 9 8 9 8 9 8 9 10
4321
5V
2.5A
INDOOR
USE
ONLY
OPTIONS
