3.3.3 Power in connection
The ServSwitch Freedom unit is supplied with a 12.5W power adapter. There is no on/off switch on the unit, so operation begins
as soon as a power adapter is connected.
To connect the power supply
1. Attach the output lead from the power adapter to the 5V socket on the rear panel of the unit. See Figure 3-5.
5V
2.5A
I N D O O R
U S E
O N L Y
OPTIONS

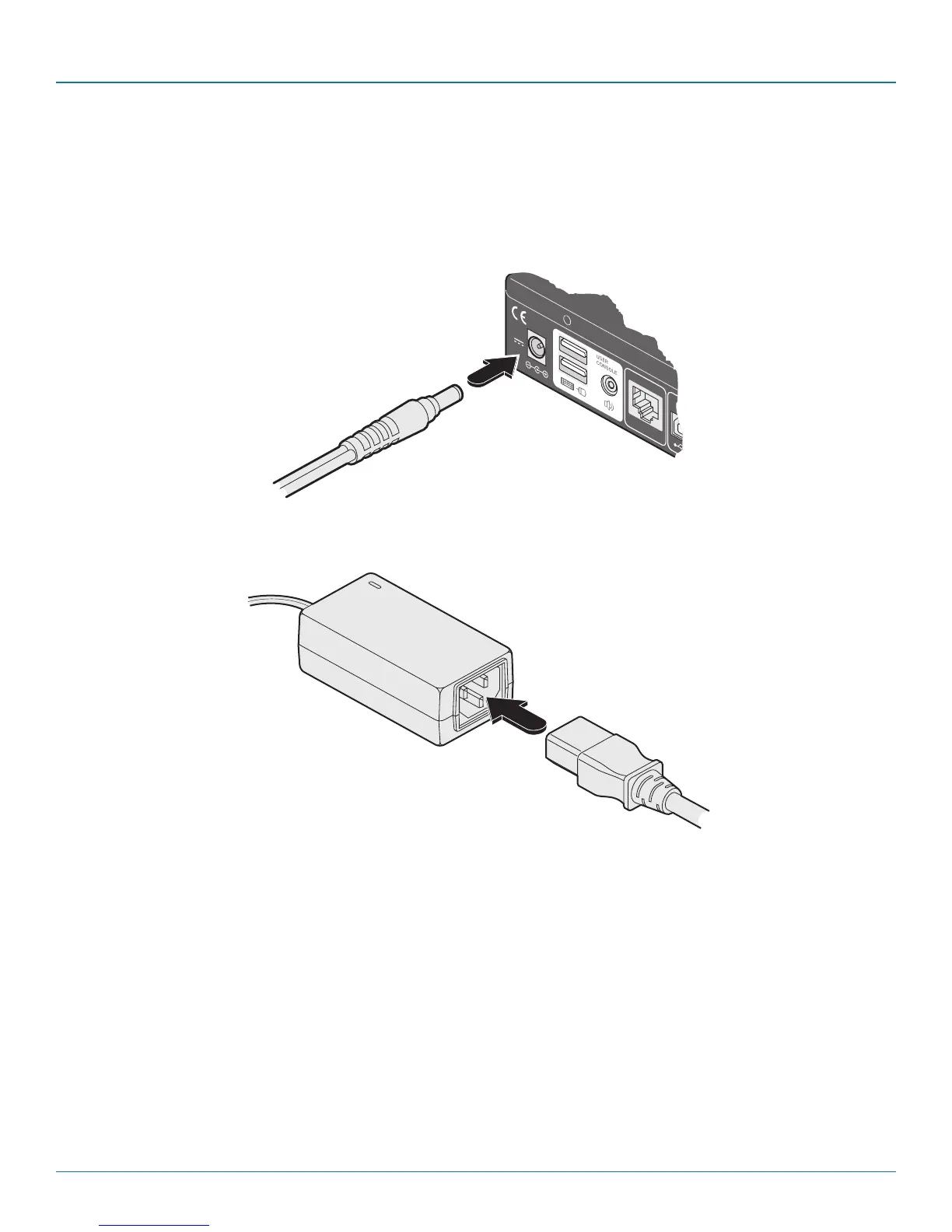

Figure 3-5. Attaching the power adapter lead to the power input socket.
2. Connect the IEC connector of the supplied country-specific power lead to the socket of the power adapter. See Figure 3-6.
Figure 3-6. Attaching the IEC connector of the power lead to the adapter.
3. Connect the power lead to a nearby main supply socket.
Note: Both the unit and its power supply generate heat when in operation and will become warm to the touch. Do not enclose
them or place them in locations where air cannot circulate to cool the equipment. Do not operate the equipment in ambient tem-
peratures exceeding 104° F (40° C). Do not place the products in contact with equipment whose surface temperature exceeds
104° F (40° C).
