APPENDIX E: Rackmount
85

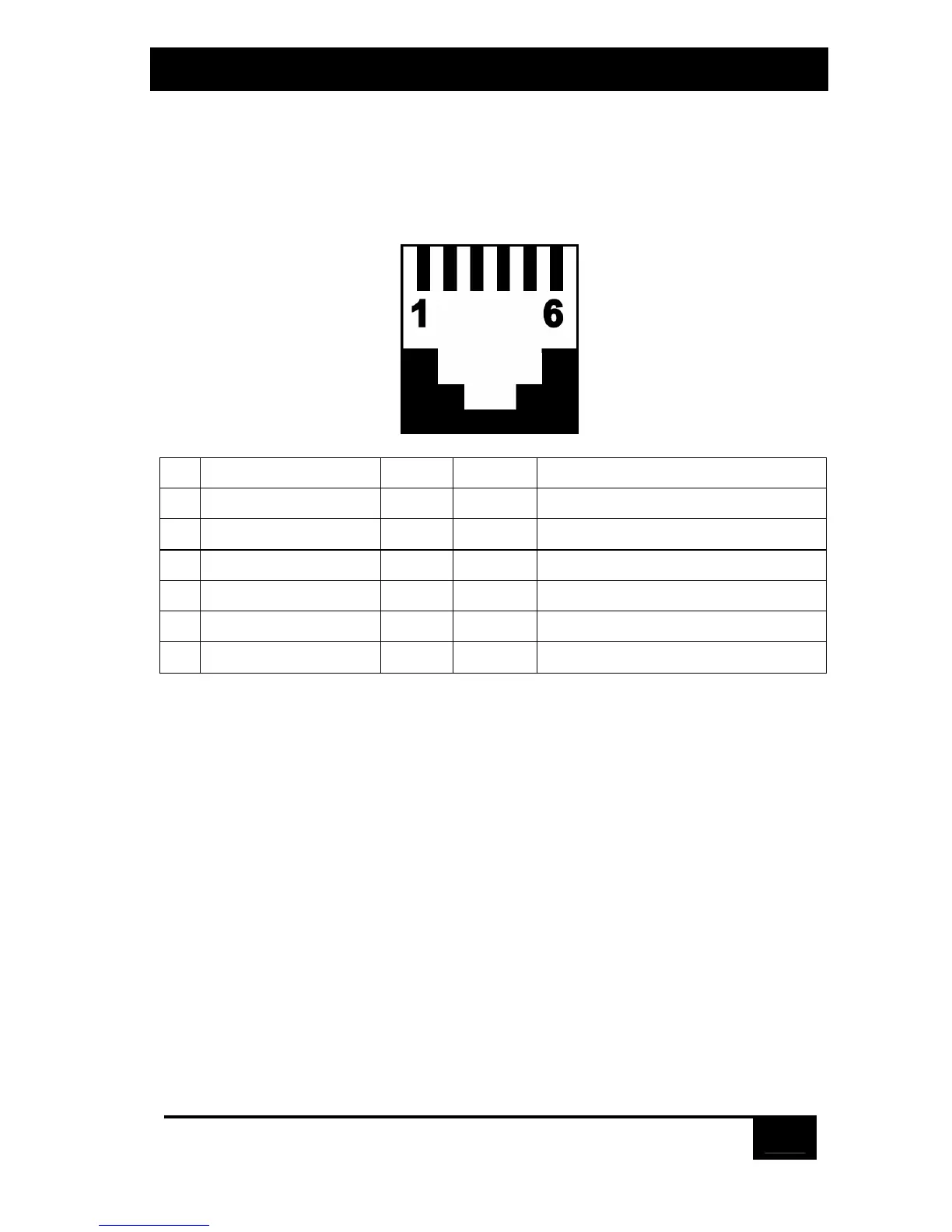

Appendix C: Pinout of RS-232 Port
The table below shows the pinout of the ServSwitch’s RJ-12 (“6-wire RJ-11”)
female RS-232 port.
Pin Signal Name Abbrev. Direction Description
1 Data Set Ready DSR Input Reserved (not used)
2 Data Terminal Ready DTR Output
Pulled high with 1-K. resistor
3 Transmit Data TD Output Serial data from port
4 Signal Ground SGND N/A DC ground reference
5 Receive Data RD Input Serial data to port
6 Request to Send RTS Output
Pulled high with 1-K. resistor
