CB9A-020 page 16
MAINTENANCE
VALVE REPLACEMENT
When replacing the valves, it is important to install
the suction and discharge valves in the correct
location in the cylinder head.
NOTE: The valves may be removed without
removing the cylinder head from the cylinder. Be
sure to remove and replace the valve gaskets.

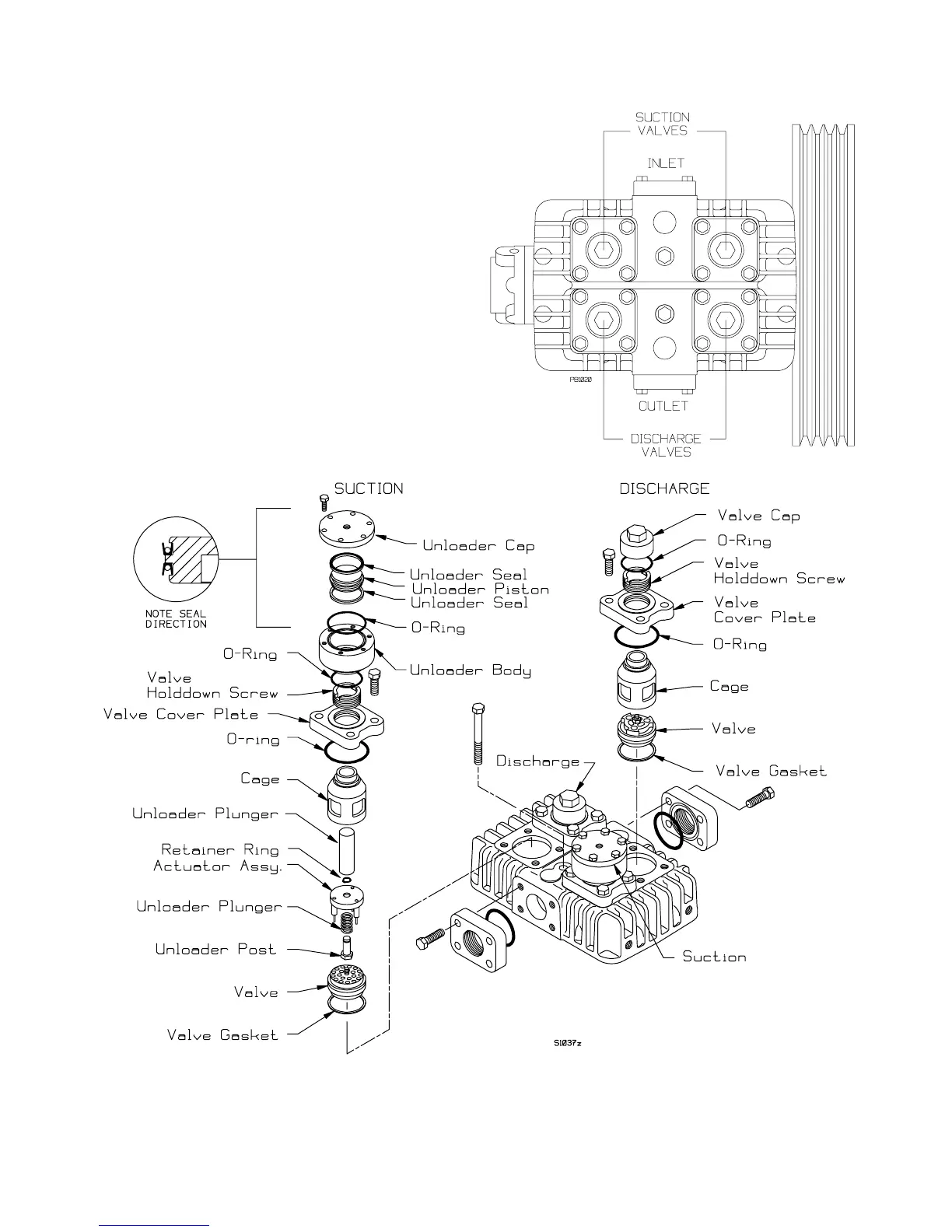

Typical Head Assembly (with Suction Valve Unloaders).
