Blaupunkt COUCH CRC 41 User Manual

238

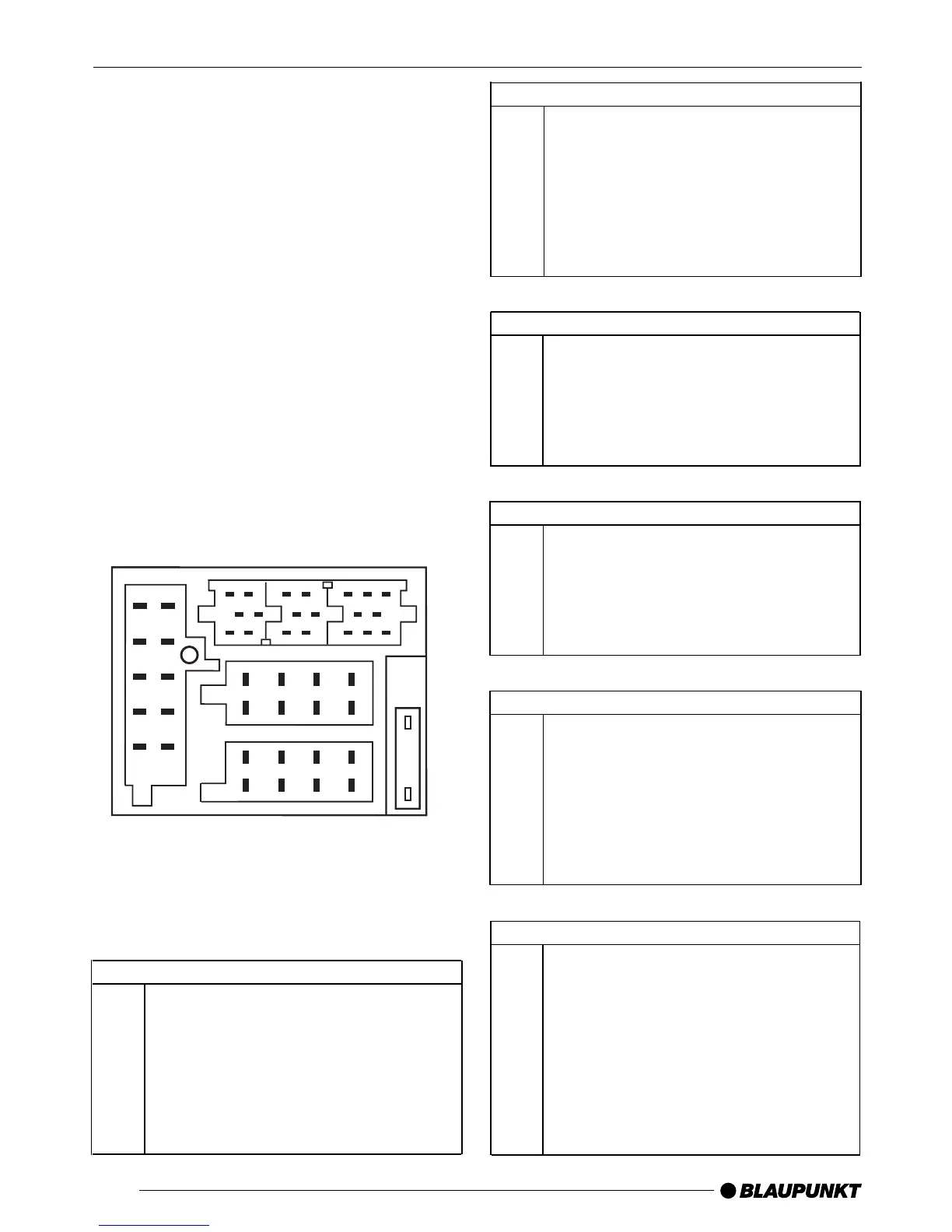

ISO-ANSCHLUSS
ISO Connector
A POWER SUPPLY CONNECTOR
1–
2–
3–
4 IGNITION (+24 V)
5 ANTENNA/AMP-ON (+12 V OUT)
6 ILLUMINATION
7BATTERY (+24 V)
8 GROUND/MINUS
C2 PHONE CONNECTOR
7 PHONE AF-IN
8 PHONE GND
9 PHONE REMOTE
10 –
11 –
12 –
C3 CHANGER CONNECTOR
13 CDC DATA-IN
14 CDC DATA-OUT
15 CDC BATTERY (+24 V OUT)
16 CDC ON (+12 V OUT)
17 CDC GROUND/DIGITAL GND
18 CDC AF/AUX AF-GND
19 CDC AF/AUX AF-IN LEFT
20 CDC AF/AUX AF-IN RIGHT
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
C
B
A
1
4
7
10
13
16
19
3
6
9
12
15
18
2
58
11
14
17
20
C1 C2 C3
2
D
1
3
4
5
6
7
8
9
10
D MICROPHONE CONNECTOR
1 MICROPHONE 1 AF
2 MICROPHONE 1 AF GND
3 MICROPHONE 1 REMOTE
4 MICROPHONE 2 REMOTE
5 MICROPHONE 2 AF
6 MICROPHONE 2 AF GND
7 MICROPHONE 1, 2 REMOTE GND
8-
9-
10 -
C1 CCA CONNECTOR
1 RADIO OUT LEFT (FIX)
2 RADIO OUT RIGHT (FIX)
3 RADIO/TAPE GND
4TAPE OUT LEFT (FIX)
5TAPE OUT RIGHT (FIX)
6 CCA ON (+12 V OUT)
B SPEAKER/AMPLIFIER CONNECTOR
1 LINE OUT RIGHT (VAR)
2 LINE OUT GND (VAR)
3 SPEAKER RIGHT (+)
4 SPEAKER RIGHT (-)
5 SPEAKER LEFT (+)
6 SPEAKER LEFT (-)
7 LINE OUT LEFT (VAR)
8 LINE OUT GND (VAR)
