Blizzard Lighting LB HEX - Internal;External Parts

Page 19
LB-Hex User Manual Rev. B © 2017 Blizzard Lighting, LLC

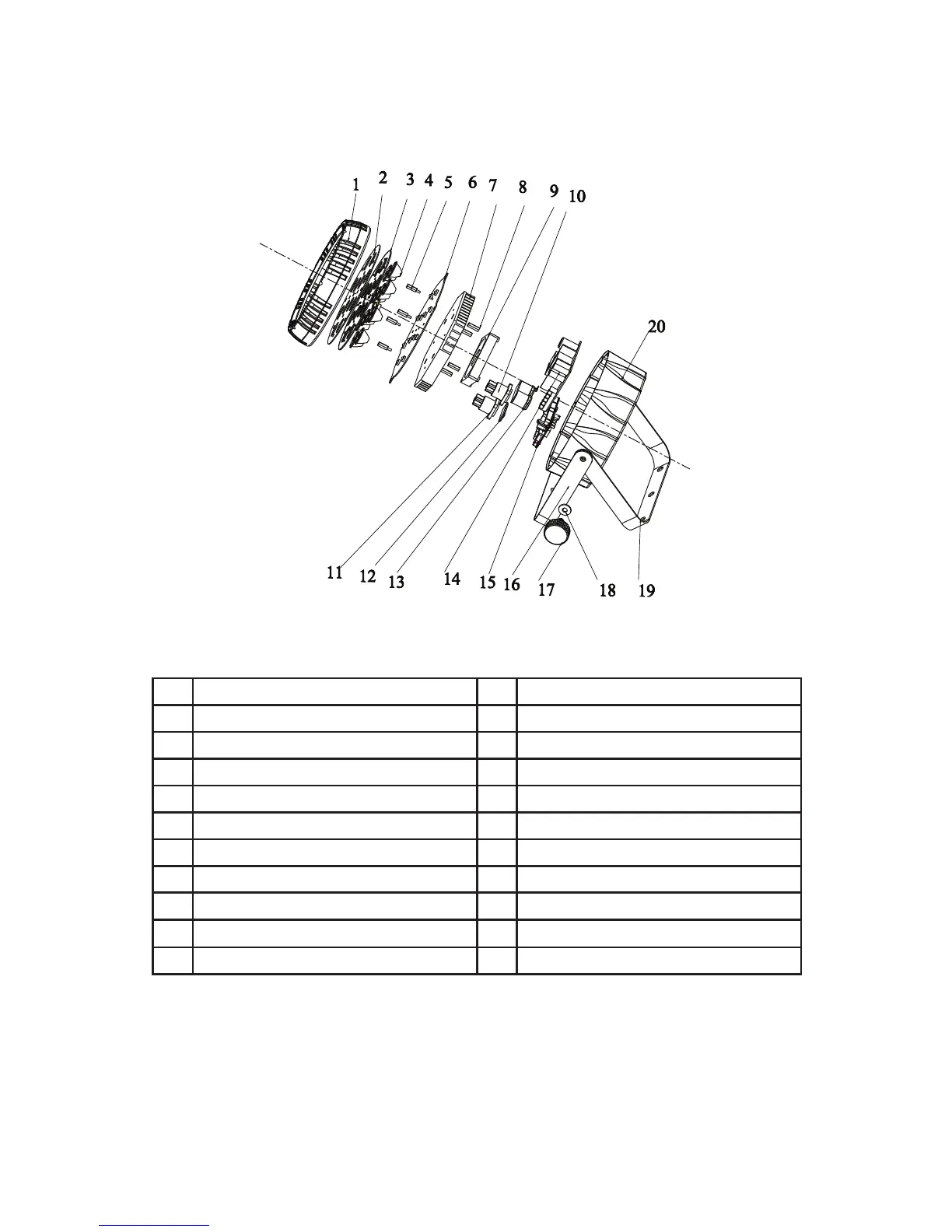

Internal/External Parts
# Name # Name
1. Upper housing cover 11. PowerCon™compatible input
2. Upper lamp pressing plate 12. Red PVC
3. Under lamp pressing plate 13. PCB-DMX canon socket
4. Lamps 14. Power supply
5. Copper pillar 15. Master PCB
6. PCB-lamp board 16. Outer bracket
7. Radiator 17. Knob
8. Copper pillar 18. Rubber gasket
9. 8015 fan 19. Inner bracket
10. PowerCon™ compatible input 20. Bottom housing cover
