Installation
Oven Assembly
DOUBLE SECTION ASSEMBLY
1. Place lower section in predetermined place of instal-
lation.
2. Attach the legs (and casters if applicable) as previ-
ously described.
3. Using two 1” boards, place one near the edge of the
oven and the other at the far side of the ue collar.
4. Lift the upper section and place on the boards. Push
the top section across until the sections are even.
5. Remove the board from one side by placing a 2” x 4”
approximately four feet long under the angle frame.
Lift to remove the board.
6. Remove the other board in the same manner as
above, allowing the upper section to come gently to
rest in the proper position.
7. Install gas back-pipes and pressure regulator.
8. Install the canopy or direct type vent as appropriate.
9. Remove all tags.
10. Level the ovens side to side and front to back by plac-
ing a spirit level on the base frame of the lower sec-
tion and screwing the adjustable leg feet in or out as
appropriate.
ULTRA ROKITE DECK
1. Slide the Ultra Rokite shelf through the door opening.
Rest the shelf on the deector and slide to the rear of
the oven until it drops into the shelf support.
2. Refer to pre-heating instructions supplied with Ultra
Rokite.
NOTE: Because of the weight of the Ultra Rokite shelves,
take care to avoid injury to yourself or damage to
the shelves when sliding sections into the oven.
NOTE: For model 981, Ultra Rokite is only available as a
bottom deck. DO NOT install the Ultra Rokite in
the top baking compartment of a 981.

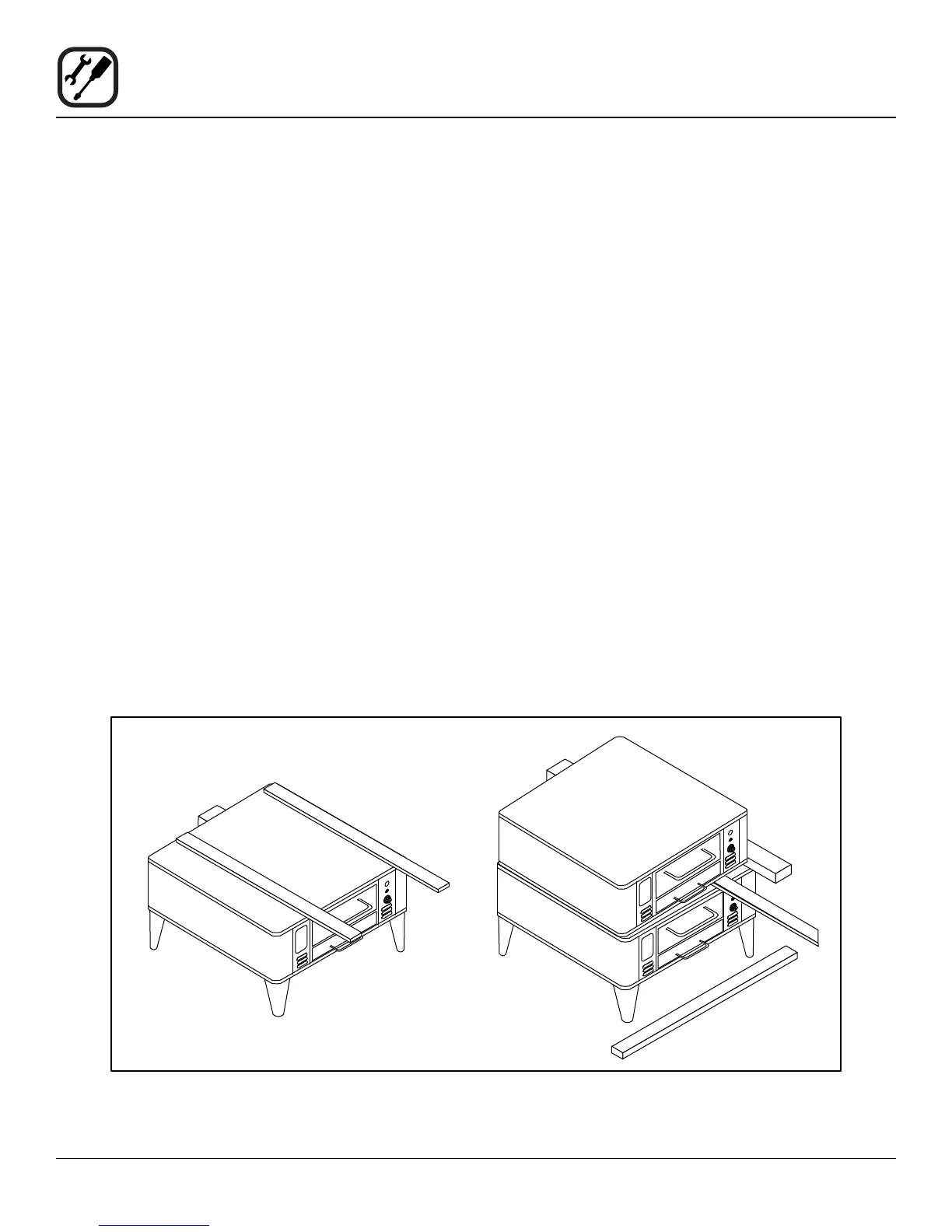

Figure 4
