Installation
7
Oven Assembly
STACKING THE OVENS (if applicable)
Double Stacked
1. Assemble the bottom oven to the stand.
2. Rest the top oven on its back. Install the oven
alignment pins (4) into the four holes provided
on the bottom of the oven
3. Remove the four knock-outs in the top of the
bottom oven.
4. Carefully lift the upper oven off the pallet and
place it on the lower oven. Locate alignment
pins with holes in frame of lower oven.

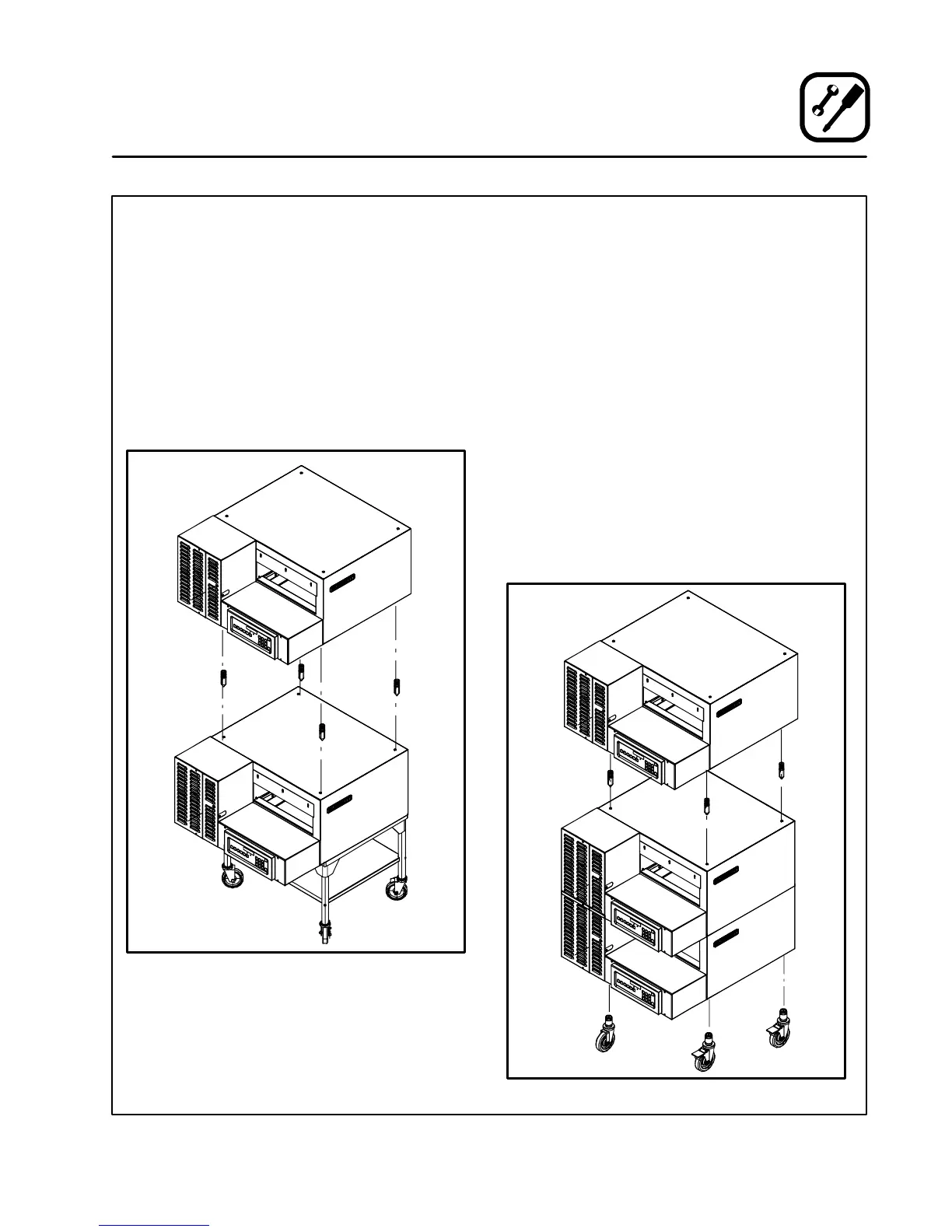

Figure 4
Triple Stacked
1. Rest the bottom oven on its back. Install a
caster into each of the four holes in the corners
of the oven bottom.
NOTE: Install the locking casters on the front
of the oven.
2. Carefully lift the bottom oven onto the casters.
Lock t he front casters.
3. Rest the middle oven on its back. Install the
oven alignment pins (4) into the four holes pro-
vided on the bottom of the oven
4. Remove the four knock-outs in the top of the
bottom oven.
5. Carefully lift the middle oven off the pallet and
place it on the lower oven. Locate alignment
pins with holes in frame of lower oven.
6. Repeat steps 3 and 5 for the top oven.
Figure 5
