Installation
9
Oven Assembly
3. Unless specified otherwise, conveyor travel is
factory set for left to right operation when fac-
ing the front of the oven. I f a direction change
is required, the polarityof the drive motor must
be reversed. Turn the oven OFF and inter-
change the black and white motor leads at the
D .C. controller located in the control panel.

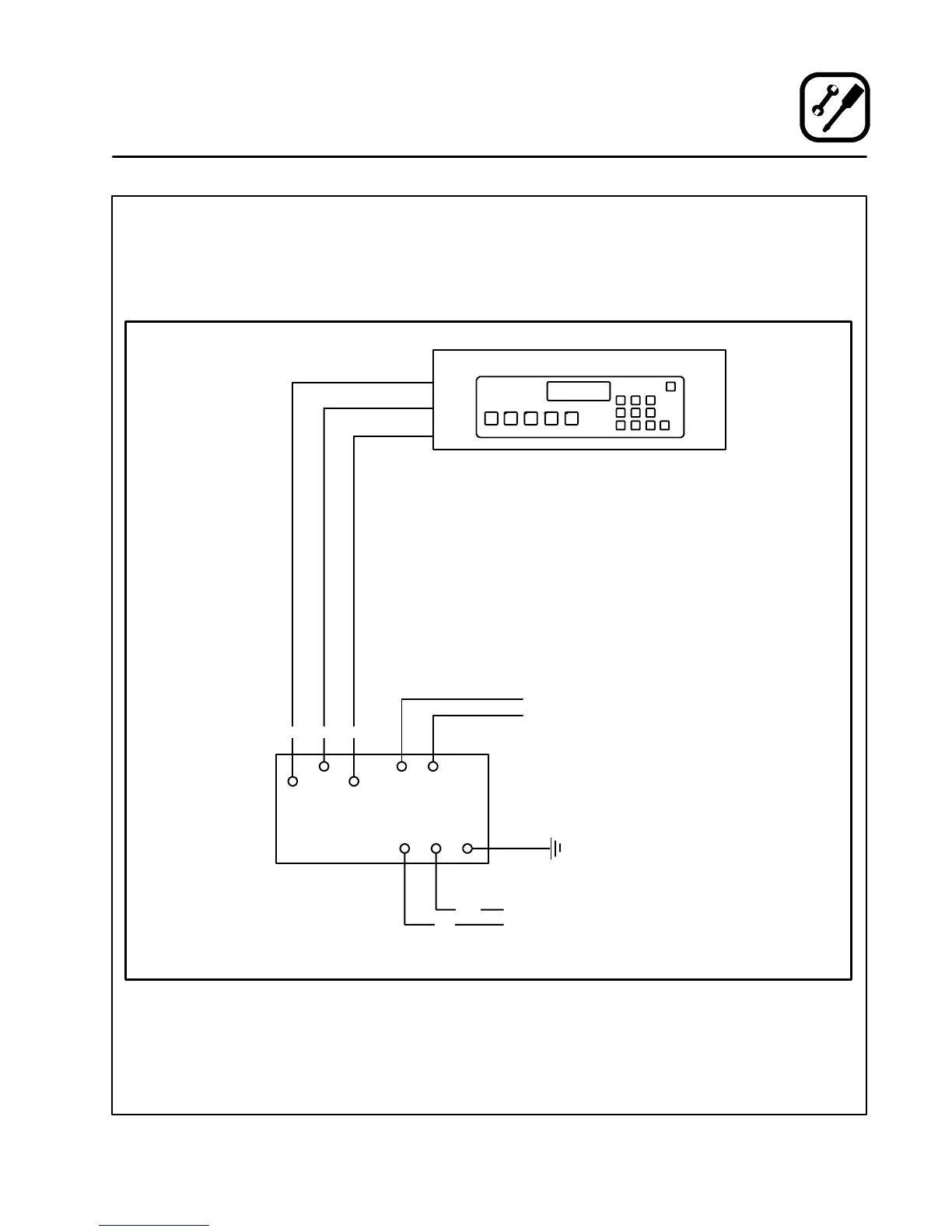

Refer to Figure 8. In addition, the conveyor
belt must be installed from the left side of the
oven vs. the right side.
S3
S2
S1
L2 L1
Y OR BL
AC
AC
W
V
A1 A2 A3
GND
BK
W
DC MOTOR
SPEED
CONTROL
Figure 8
