INTRODUCTION
1 --- 2
CE approved installations
Connect the oven to a separate group 230V, 50 hz
with rigid connection and circuit breaker. The cir-
cuit breaker s hould disconnect all poles, including
neutral with a contact separation of at least 3 mm.
See FIGURE 2. U se 90_C wire and size according
to local codes.
NOTE: The burner control unit is phase sensitive.
If the phase and neutral are switched the
control locks out.
Connect exhaust fan connector 1 and 2. See
FIGURE 2. Connect phase + neutral + ground.
s
Connector
1
2
L3
L2
L1
N
Fan
N
L
Blodgett
Connector
2-4-92
A2
A1
2
1
Relay A
2
1
Air Pressure Reg ulator
Burner Control Solenoid

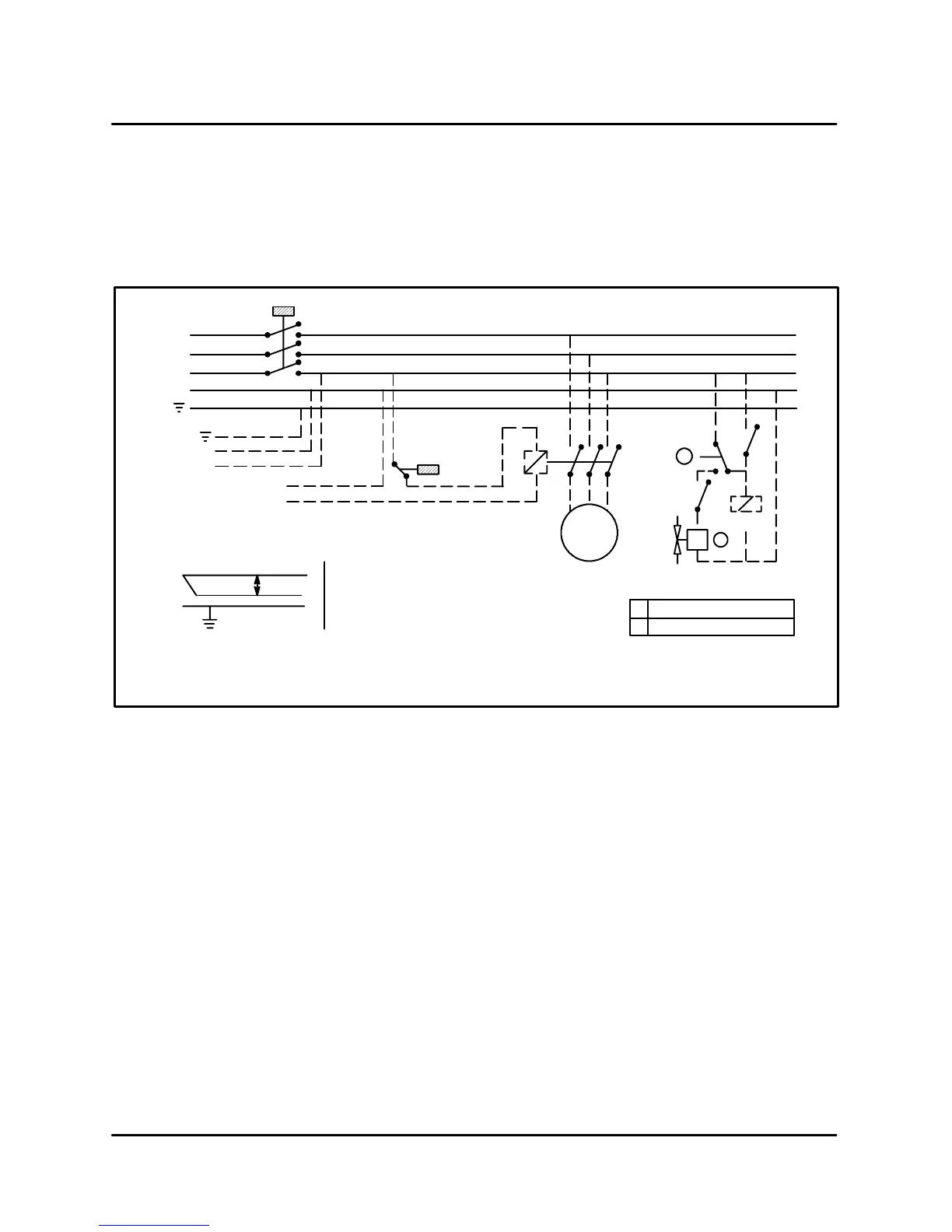

MT1828G CE Approved Installations
L1
N
230
OvenSupply
FIGURE 2
