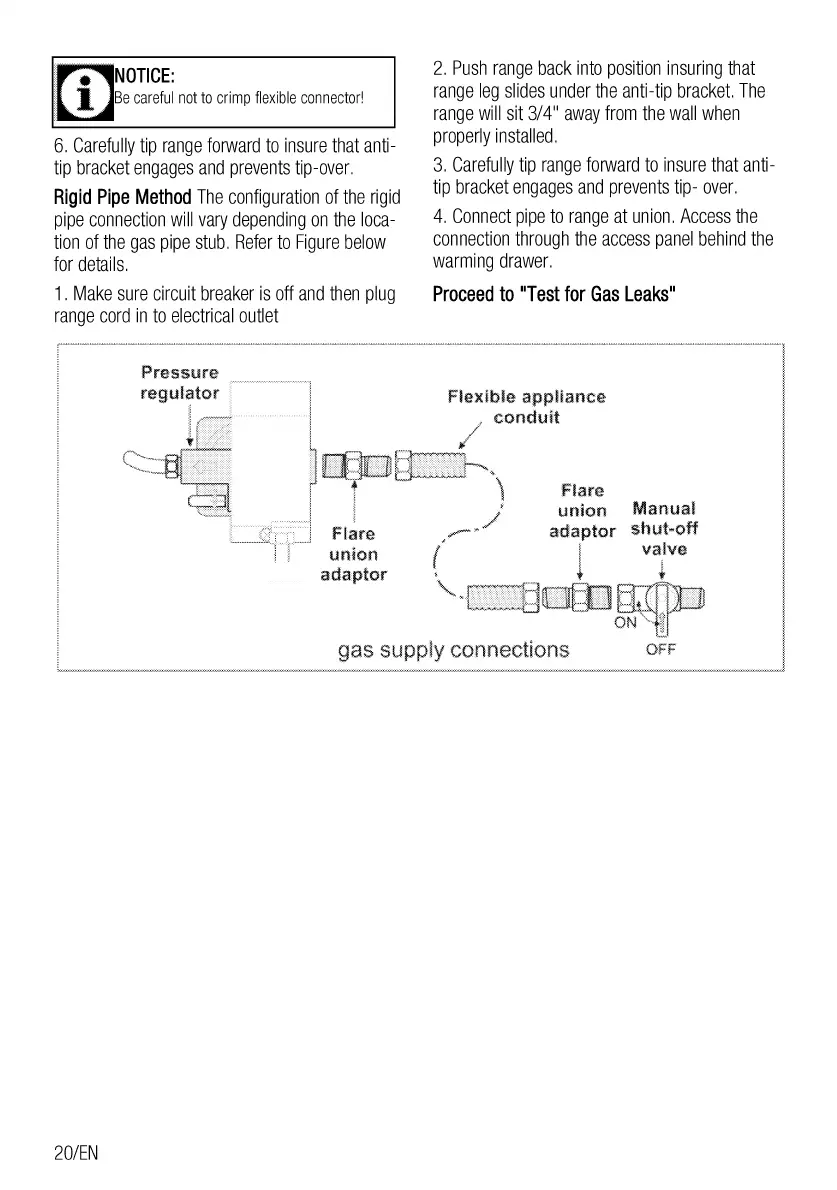

Blomberg BGRP34520CSS - Rigid Pipe Gas Connection Method; Rigid Pipe Gas Connection Procedure

~NOTICE:
~Be careful not to crimp flexible connector!
6. Carefully tip range forward to insure that anti-
tip bracket engages and prevents tip-over.
Rigid Pipe Method The configuration of the rigid
pipe connection will vary depending on the loca-
tion of the gas pipe stub. Refer to Figure below
for details.
1 . Make sure circuit breaker is off and then plug
range cord in to electrical outlet
2. Push range back into position insuring that
range leg slides under the anti-tip bracket. The
range will sit 3/4" away from the wall when
properly installed.
3. Carefully tip range forward to insure that anti-
tip bracket engages and prevents tip- over.
4. Connect pipe to range at union. Access the
connection through the access panel behind the
warming drawer.
Proceed to "Test for Gas Leaks"
Flexible appliance
/ conduit
Flare
union Manual
shut-off
valve
!!'~
gas supply connections oFF
20/EN
