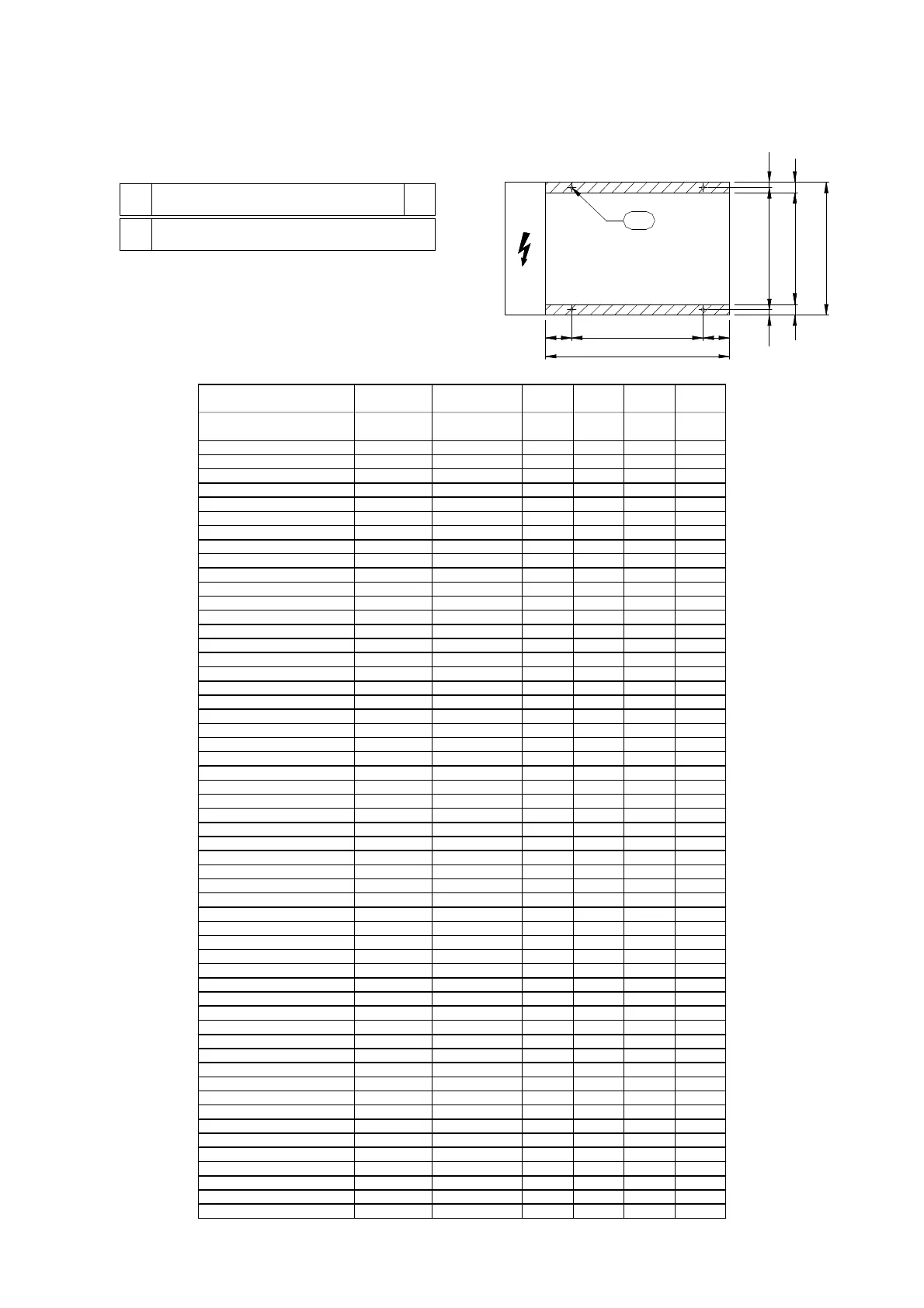

DIMENSIONS, WEIGHTS AND HYDRAULIC CONNECTIONS
SIGMA 2002 - FOOTPRINT - MODELS 8.2 - 13.2
Ø18
1050
150
G..
PUNTI DI APPOGGIO ANTIVIBRANTI
VIBRATION DAMPER FOOT HOLDS
Fh
FORI DI FISSAGGIO
FIXING HOLES
IMPRONTA A TERRA / FOOT PRINT
750
Fh
G4
G1
30
60
30 690
750 63060
150
G3
G2
MODELLO PESO(Kg)
PESO IN
FUNZIONE(Kg)
G1(Kg) G2(Kg) G3(Kg) G4(Kg)
MODEL WEIGHT(Kg)
OPERATING
WEIGHT(Kg)
SIGMA /LN 8.2 514 533 153 92 108 180
SIGMA /LN 9.2 592 612 167 120 136 189
SIGMA /LN 10.2 679 705 202 131 146 226
SIGMA /LN 12.2 720 748 209 144 161 234
SIGMA /LN 13.2 773 805 226 149 171 259
SIGMA /H/LN 8.2 514 533 153 92 108 180
SIGMA /H/LN 9.2 592 612 167 120 136 189
SIGMA /H/LN 10.2 679 705 202 131 146 226
SIGMA /H/LN 12.2 720 748 209 144 161 234
SIGMA /H/LN 13.2 773 805 226 149 171 259
SIGMA /LC/LN 8.2 472 482 162 78 79 163
SIGMA /LC/LN 9.2 545 555 176 106 102 171
SIGMA /LC/LN 10.2 624 637 214 112 107 204
SIGMA /LC/LN 12.2 660 673 221 124 118 210
SIGMA /LC/LN 13.2 704 720 240 127 122 231
SIGMA /LE/LN 8.2 476 487 143 97 100 147
SIGMA /LE/LN 9.2 549 562 155 128 126 153
SIGMA /LE/LN 10.2 628 643 188 139 134 182
SIGMA /LE/LN 12.2 664 680 193 153 148 186
SIGMA /LE/LN 13.2 705 725 207 160 156 202
SIGMA /DC-DS/LN 8.2 577 606 168 98 125 215
SIGMA /DC-DS/LN 9.2 659 691 184 126 155 226
SIGMA /DC-DS/LN 10.2 756 795 218 137 170 270
SIGMA /DC-DS/LN 12.2 801 844 226 151 187 280
SIGMA /DC-DS/LN 13.2 862 912 243 157 201 311
SIGMA /LC/DC-DS/LN 8.2 535 555 177 85 95 198
SIGMA /LC/DC-DS/LN 9.2 613 633 192 112 121 208
SIGMA /LC/DC-DS/LN 10.2 700 726 229 120 129 248
SIGMA /LC/DC-DS/LN 12.2 741 769 237 132 143 257
SIGMA /LC/DC-DS/LN 13.2 794 828 256 136 151 285
SIGMA /LE/DC-DS/LN 8.2 539 560 159 103 117 181
SIGMA /LE/DC-DS/LN 9.2 616 640 172 133 146 189
SIGMA /LE/DC-DS/LN 10.2 704 734 205 145 159 225
SIGMA /LE/DC-DS/LN 12.2 745 777 211 159 175 232
SIGMA /LE/DC-DS/LN 13.2 795 832 225 167 187 253
SIGMA /HP/LN 8.2 508 524 153 90 104 177
SIGMA /HP/LN 9.2 586 605 168 118 132 187
SIGMA /HP/LN 10.2 672 694 202 128 141 223
SIGMA /HP/LN 12.2 713 737 209 141 156 231
SIGMA /HP/LN 13.2 766 795 225 147 167 256
SIGMA /LC/HP/LN 8.2 490 498 161 79 85 173
SIGMA /LC/HP/LN 9.2 563 573 176 107 109 181
SIGMA /LC/HP/LN 10.2 641 653 213 113 113 214
SIGMA /LC/HP/LN 12.2 677 690 221 125 124 220
SIGMA /LC/HP/LN 13.2 718 735 239 127 128 241
SIGMA /LE/HP/LN 8.2 490 498 144 96 103 155
SIGMA /LE/HP/LN 9.2 563 574 157 126 130 161
SIGMA /LE/HP/LN 10.2 641 652 189 137 137 189
SIGMA /LE/HP/LN 12.2 677 690 194 152 151 193
SIGMA /LE/HP/LN 13.2 718 733 207 158 159 209
SIGMA /HP/DS/LN 8.2 533 554 154 92 115 193
SIGMA /HP/DS/LN 9.2 610 634 169 120 143 202
SIGMA /HP/DS/LN 10.2 701 730 204 130 154 242
SIGMA /HP/DS/LN 12.2 742 773 211 144 169 249
SIGMA /HP/DS/LN 13.2 795 831 227 149 180 275
