DIMENSIONS, WEIGHTS AND HYDRAULIC CONNECTIONS

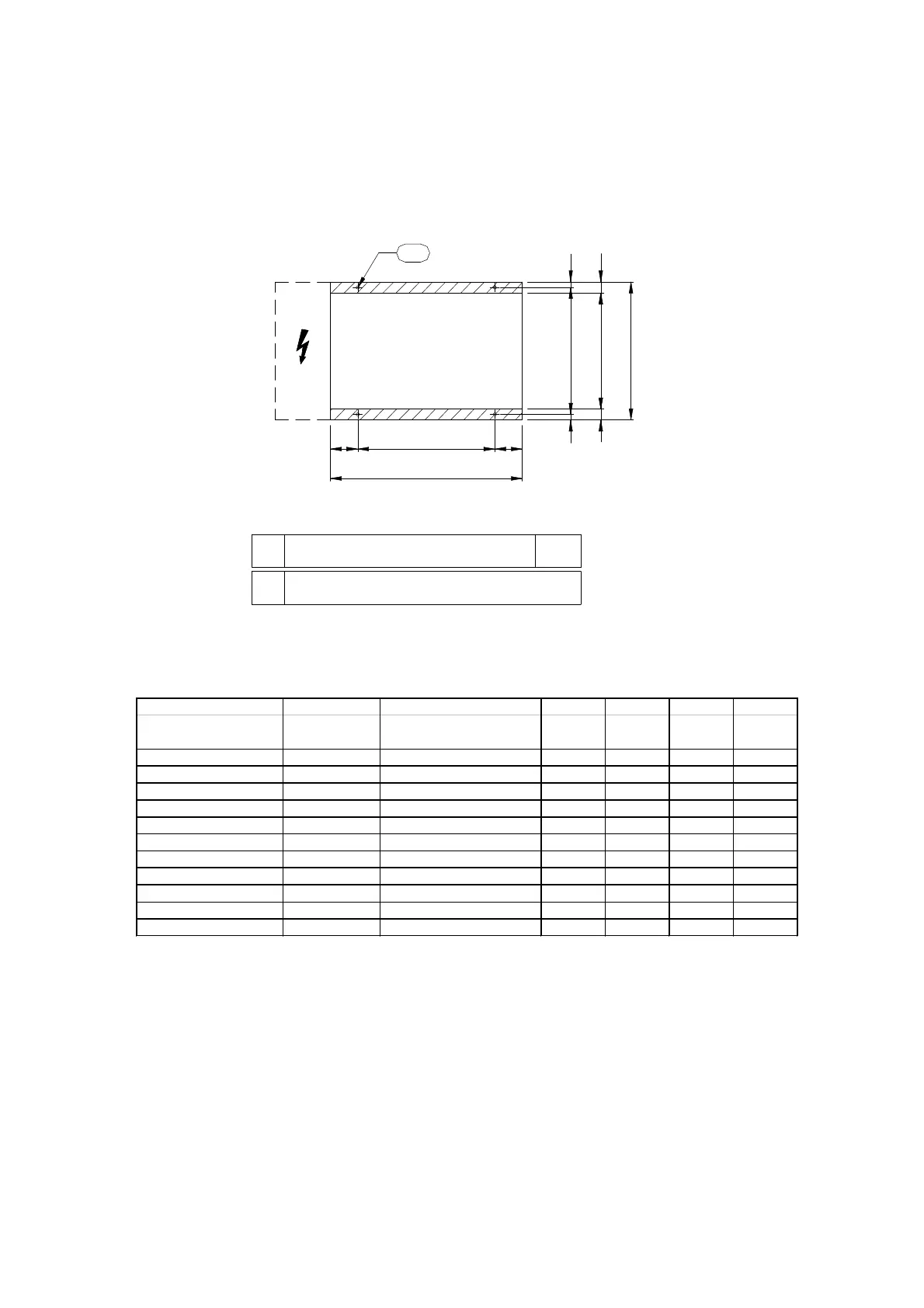

SIGMA 2002 - FOOTPRINT - MODEL 14.4
MODELLO PESO(Kg) PESO IN FUNZIONE(Kg) G1(Kg) G2(Kg) G3(Kg) G4(Kg)
MODEL WEIGHT(Kg) OPERATING WEIGHT(Kg)
SIGMA 14.4 810 842 233 194 189 226
SIGMA /H 14.4 810 842 233 194 189 226
SIGMA /LC 14.4 733 748 248 168 134 198
SIGMA /LC/HP 14.4 764 778 252 173 144 209
SIGMA /LC/DC-DS 14.4 831 864 267 180 168 249
SIGMA /LE 14.4 742 762 215 205 167 175
SIGMA /LE/HP 14.4 576 591 158 142 138 153
SIGMA /LE/DC-DS 14.4 840 878 237 214 203 224
SIGMA /HP 14.4 811 839 237 192 184 226
SIGMA /HP/DS 14.4 829 860 237 194 193 236
SIGMA /DC-DS 14.4 897 947 245 204 226 272
Ø18
G1 G2
G4 G3
Fh
Fh
FORI DI FISSAGGIO
FIXING HOLES
G..
PUNTI DI APPOGGIO ANTIVIBRANTI
VIBRATION DAMPER FOOT HOLDS
1050
750
60 630 60
3069030
150750150
