Blue Clean BC111HS - Cord Hook Installation; High Pressure Hose Assembly

8
OFF/O
ON/I
C
3
C
D

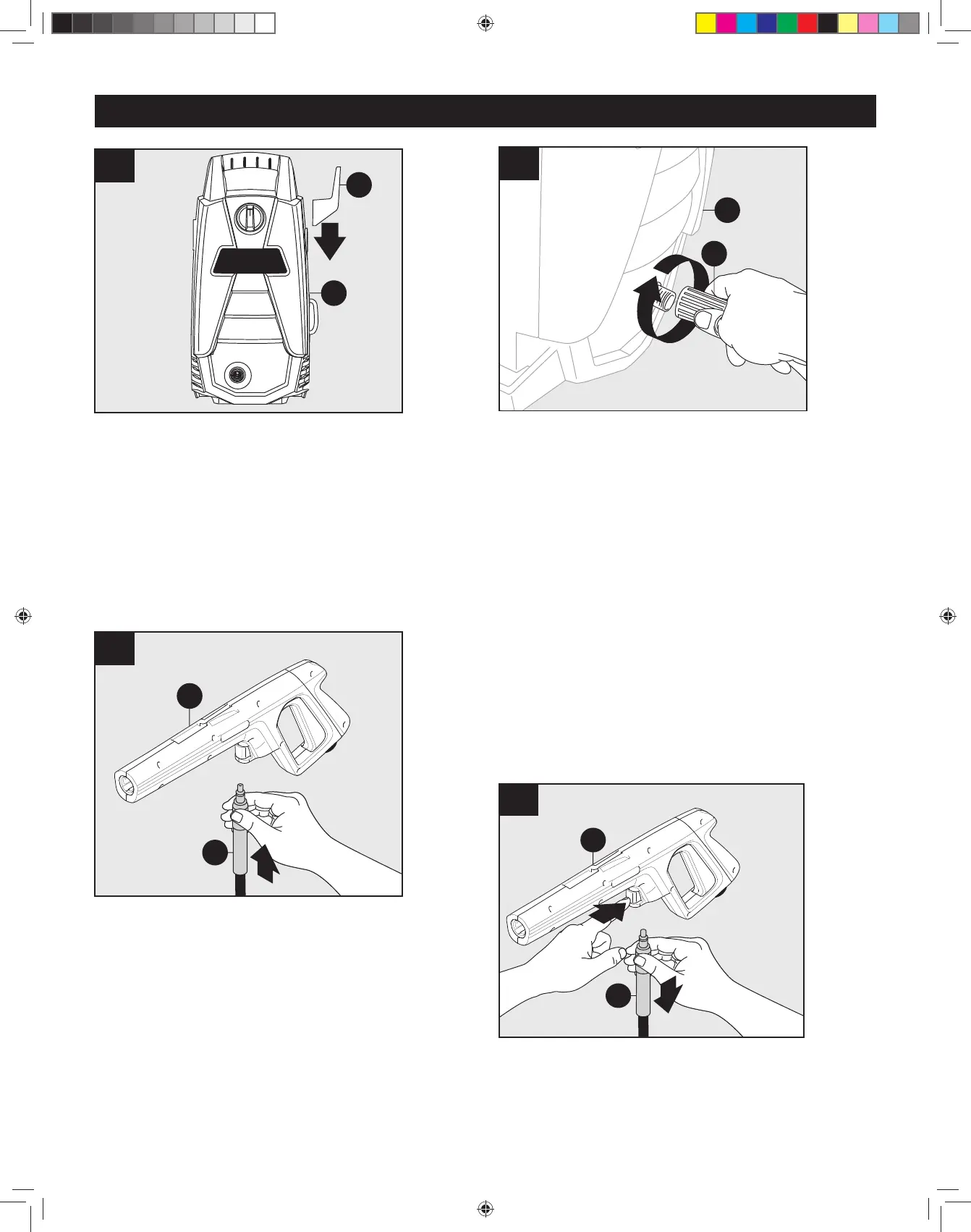

Slide cord hook holster (D) onto right side, when facing
the power washer unit (C) as shown.
Note: This step does not require any screws.
4
C
E
Super Soft High Pressure Hose Assembly
Screw Super Soft high pressure hose (E) clockwise onto
bottom front of power washer unit (C). Pull back collar
and insert o-ring post into water outlet far enough so
collar can thread onto outlet threads until hand tight.
If it takes fewer than six turns you have not properly
WLJKWHQHGWKH6XSHU6RIWKLJKSUHVVXUHKRVHÀWWLQJ,W
is easier to position the power washer in front of you to
ensure that the threads are started correctly. Failure
to properly tighten Super Soft high pressure hose will
result in the hose slipping or popping off immediately
upon turning unit on. Do not worry about damage if this
occurs–just reinstall and take extra care when screwing
RQWKH6XSHU6RIWKLJKSUHVVXUHKRVHÀWWLQJ
Note: DO NOT use pliers or locking pliers to tighten.
5
E
F
Connect the other end of Super Soft high pressure hose
(E) to spray gun (F) by inserting the silver metal tip of
6XSHU6RIWKLJKSUHVVXUHKRVHLQWRWKHÀWWLQJMXVWDKHDG
of trigger guard. It will lock into spray gun with a “click”.
&RQÀUPKRVHLVORFNHGLQWRVSUD\JXQE\VOLJKWO\SXOOLQJ
on hose. The hose is now securely attached to spray
gun.
Note: DO NOT press button on underside of gun when
connecting hose to gun. This is the hose release button,
and hose will be unable to connect.
2
1
6
E
F
To release hose (E) from spray gun (F), press button on
underside of gun toward trigger guard. The hose will
slide out from connection.
ASSEMBLY INSTRUCTIONS
