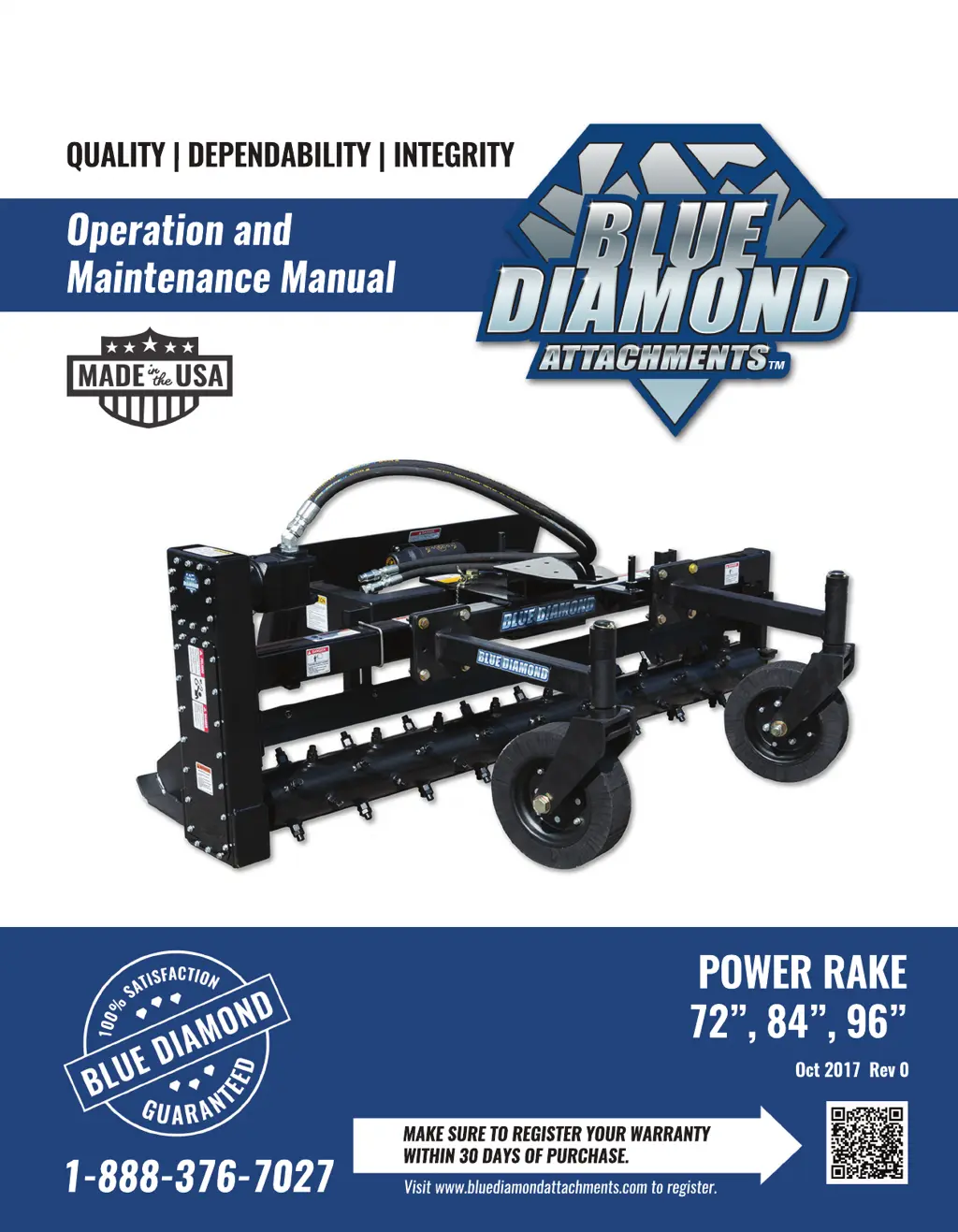

Blue Diamond POWER RAKE User Manual (English)

Questions and Answers:

K
Kathryn BryantAug 19, 2025
What to do if the Blue Diamond POWER RAKE Farm Equipment rotor is not turning?
- J
  Jennifer BrownAug 19, 2025
  If the rotor on your Blue Diamond Farm Equipment is not turning, several issues could be the cause. It might be due to a broken chain (replace the chain), a sheared key in the sprocket or rotor (replace the key), a bad hydraulic hose connection (check the hydraulic hose connections), or an obstruction between the rotor and frame (remove any debris). Also, hydraulics may not be engaged, so engage them. If none of these actions solve the issue, it may be due to a damaged motor shaft or seized motor, faulty hydraulic coupler (replace hydraulic coupler). In this case it is recommended to contact your dealer or Blue Diamond Attachments Service Department.
D
David NicholsAug 21, 2025
Why is my Blue Diamond Farm Equipment Power Rake vibrating?
- W
  William WaltersAug 21, 2025
  If your Blue Diamond Farm Equipment Power Rake is vibrating, it could be due to a couple of reasons. Debris might have built up between the rotor and the frame; if that's the case, remove the debris. Another potential cause is a faulty rotor bearing, which would then require replacing the bearing. Also, remove any debris.
J
Jennifer MonroeAug 23, 2025
What to do if Blue Diamond POWER RAKE Farm Equipment chain case is leaking?
- M
  Ms. Mary Webb DDSAug 23, 2025
  If your Blue Diamond Farm Equipment chain case is leaking, the likely cause is a faulty seal. To fix this, remove the cover and replace the seal.
S
Stephanie HughesAug 26, 2025
Why is the Blue Diamond POWER RAKE rotor turning slow at startup?
- C
  christophermartinezAug 26, 2025
  If you're experiencing low pressure at startup or a slow-turning rotor with your Blue Diamond Farm Equipment, there are a few potential causes. The hydraulic couplers might be reversed; try reversing the male and female couplers and check for correct pressure. Another cause can be debris build up between rotor and frame, so remove the debris. It could also be a faulty relief valve on the power rake or machine, in this case contact your dealer or Blue Diamond Attachments Service Department.
A
Amanda RamosAug 28, 2025
What causes noise in the Blue Diamond Farm Equipment chain case?
- K
  Kayla OlsonAug 28, 2025
  If you're hearing noise in the chain case of your Blue Diamond Farm Equipment, it could be due to several reasons: worn chain and sprockets (replace them), a broken or stretched chain tensioner spring (replace the spring), or a worn idler (replace the idler).
B
Brandon WilsonAug 30, 2025
What to do if rocks are flowing out from front shields of Blue Diamond POWER RAKE?
- S
  Shawn GoodmanAug 30, 2025
  If rocks are flowing out from the front shields of your Blue Diamond Farm Equipment, it may be due to over capacity. In this case, install the optional skid plate. Also, try reducing your travel speed and engine speed.
A
Amber DanielsSep 1, 2025
What to do if rocks are being left behind by Blue Diamond POWER RAKE?
- S
  Samantha MillerSep 1, 2025
  If your Blue Diamond Farm Equipment is leaving rocks behind, it might be because the material bar is out of adjustment; adjust the material bar. Another possibility is that the material bar rubber is worn, so replace the material bar rubber.
M
Monique JosephSep 4, 2025
What to do if side shields are bending on Blue Diamond Farm Equipment?
- V
  vkaiserSep 4, 2025
  If the side shields on your Blue Diamond Farm Equipment are bending, this could be due to over capacity. To resolve this, install the optional skid plate.
T
Tricia SchmidtSep 6, 2025
Why do Blue Diamond POWER RAKE gauge wheels not turn?
- C
  Christine GriffinSep 6, 2025
  If the gauge wheels on your Blue Diamond Farm Equipment are not turning, it could be because the axle bolt is too tight; loosen the axle bolt. Alternatively, an object might be lodged between the wheel and saddle assembly; remove the object.
T
taylorstevenSep 8, 2025
Why does the side shield allow material out leaving ridges on Blue Diamond POWER RAKE Farm Equipment?
- P
  Peter BriggsSep 8, 2025
  If the side shield is allowing material out and leaving ridges on your Blue Diamond Farm Equipment, it's likely due to over capacity. Consider installing an optional skid plate to address this issue.
