Power Rake Operation and Maintenance Manual
Maintenance
Rotor
Rotor Removal / Installation
WARNING
AVOID SERIOUS INJURY OR DEATH
Securely block up the attachment before
working underneath.
1. Remove the side shields. See side shield and
skid plates on page 32.
2. Remove the upper chain case cover.
3. Drain the gear case oil. See Gear Case Oil on
page 29.
4. Remove the lower chain case cover.
5. Remove the drive chain. See drive chain on
page 33.
6. Remove the chain master link and remove the
chain.
7. Loosen the two set screws on the sprocket and
remove the sprocket and key.
WARNING
AVOID SERIOUS INJURY OR DEATH
Secure the rotor with a lifting device before
removing bearing mount bolts.

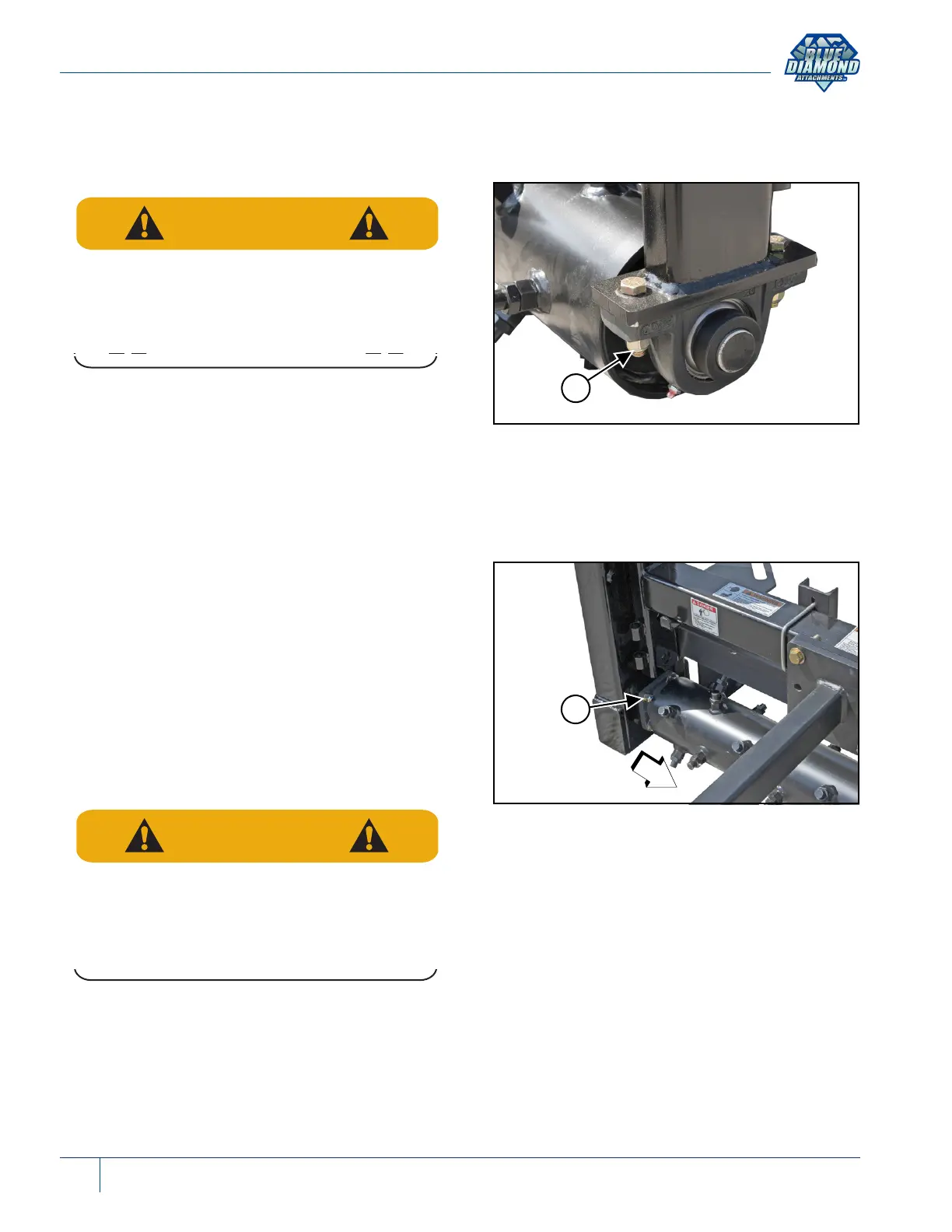

Figure 16
8. Remove the two bearing mount bolts (Item 1)
[Figure 16].
Figure 17
9. Remove the four bearing mount bolts (Item 1)
[Figure 16].
10. Slide the rotor back away from the gear box
until the rotor is free.
11. Remove both bearings from the rotor shaft.
12. To install the rotor, reverse the procedures.
