Blue Diamond POWER RAKE - Hydraulic System

41
Power Rake Operation and Maintenance Manual
Parts
Hydraulic System

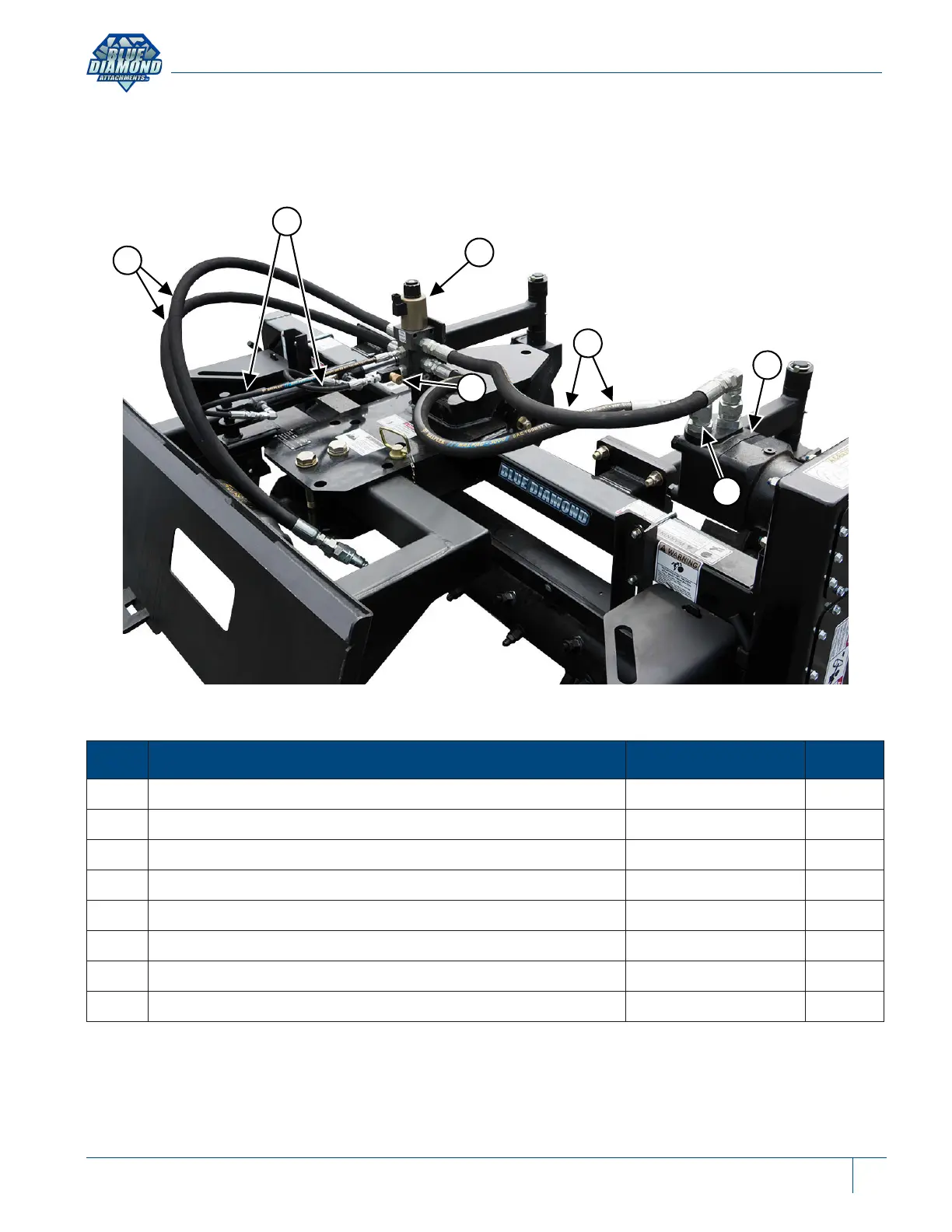

ITEM DESCRIPTION PART # QTY
1 Hydraulic Motor, V-Tec 6000 232600 1
2 Hose Adapter N/A 2
- Manual Hose Kit 132065 1
3 Angle Hose Kit (motor to valve) N/A 1
4 Angle Hose Kit (valve to host machine) N/A 1
5 Angle Hose Kit (valve to cylinder) N/A 1
6 Solenoid Valve N/A 1
7 Flow Adjuster N/A 1
1
7
6
5
3
4
2
232300
