Blue Diamond POWER RAKE - Side Shields and Skid Plates; Gauge Wheels

32
Power Rake Operation and Maintenance Manual
Maintenance
Side Shields and Skid
Plates
Material Side Shields Removal / Installation

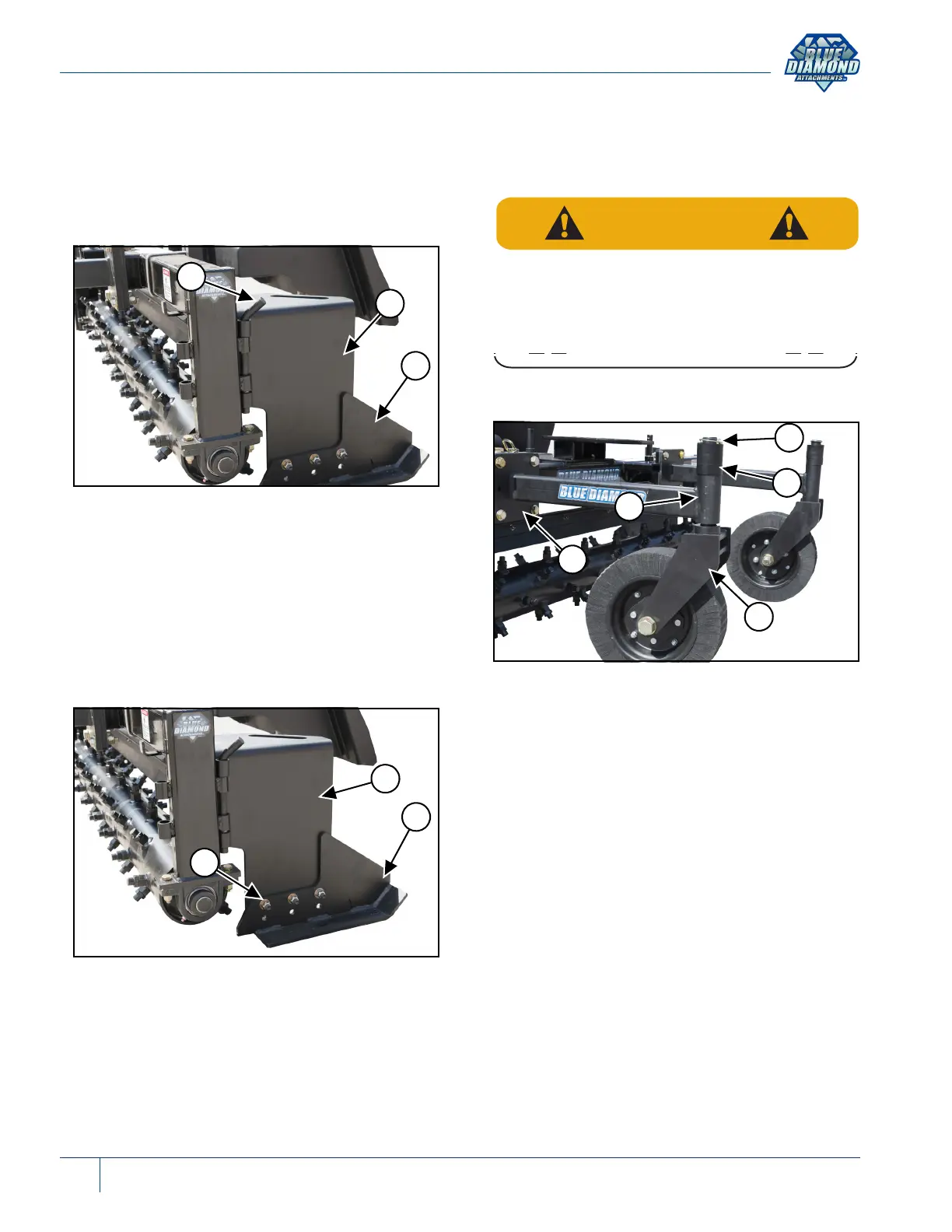

Figure 11
Remove the pin (Item 1) and remove the side
shield (Item 2) and skid plate (Item 3) [Figure 11]
on (both sides).
Skid Plate Adjustment
Figure 12
Remove the three nuts and bolts (Item 1) then
remove the skid plate (Item 2) [Figure 12].
Align the desired skid plate holes with the side
shield (Item 3) [Figure 12] holes, install the bolts,
nuts and tighten.
Gauge Wheels
Gauge Wheel Adjustment
WARNING
AVOID SERIOUS INJURY OR DEATH
Securely block up the attachment before
working underneath.
Figure 13
Remove the retaining pin (Item 1) and lower the
spindle (Item 2). Relocate spacers as desired
above or below the spindle mount arm (Item 4)
[Figure 13].
Install the spindle and install the retaining pin.
NOTE: The gauge wheel can also be adjusted up
/ down at the spindle mount arm (Item 5)
[Figure 13].
Remove the four bolts, washers and nuts. Position
the spindle mount arm as desired. Install and
tighten the four bolts washers and nuts.
Repeat procedure on the other main spindle
mount.
