Bluetti Sub Panel - Connection; Single Connection

- 07 -
3. Connection
Sub Panel supported Single or Dual BLUETTI Power Station connection.
Compatible Model: EP500/Pro, AC300.
Please contact to the dealer whether you order the Sub Panel Version is
compatible with your power station.
DANGER:
Read the user manual before installation.
WARNING:
Ensure Sub Panel and circuit is turning off.
2.3.3 Wiring to BLUETTI Power Station
For better convenience, the connecting cables for EP500/Pro or AC300
(according to your order) are involved in the package of Sub Panel.
Please turn to Chapter 3 for detailed installation information.
Check the connection as (Circuit Diagram 1), put the front cover back.
3.1 Single Connection
For single EP500/Pro or AC300 power station.
Grid: 2-wire input from grid at single-phase 100V or 120V is recommended.
The load capacity should exceed the Max Power of Input of Power Station.

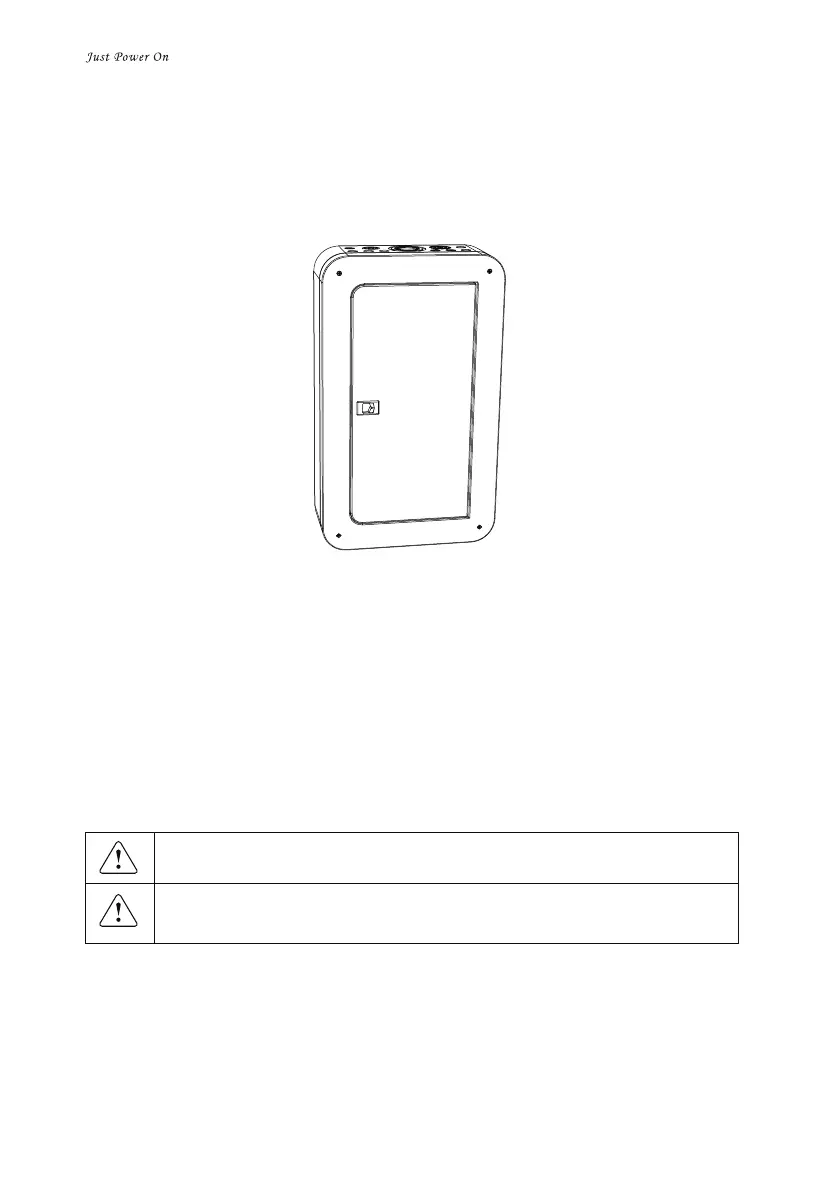

Figure 2.6 Front cover installed
