Bluetti Sub Panel - Split Phase Connection System; Dual EP500

- 11 -
3.2 Split Phase Connection System
For Dual EP500/Pro or Dual AC300 to enable Split Phase System.
Grid: 3-wire input from grid at single-phase 100V or 120V is recommended.
The load capacity should exceed the Grand Max Power of Input of Power
Station.
3.2.1 Dual EP500
Cable involved in the package of Sub Panel to connect with Dual EP500
solar power station.

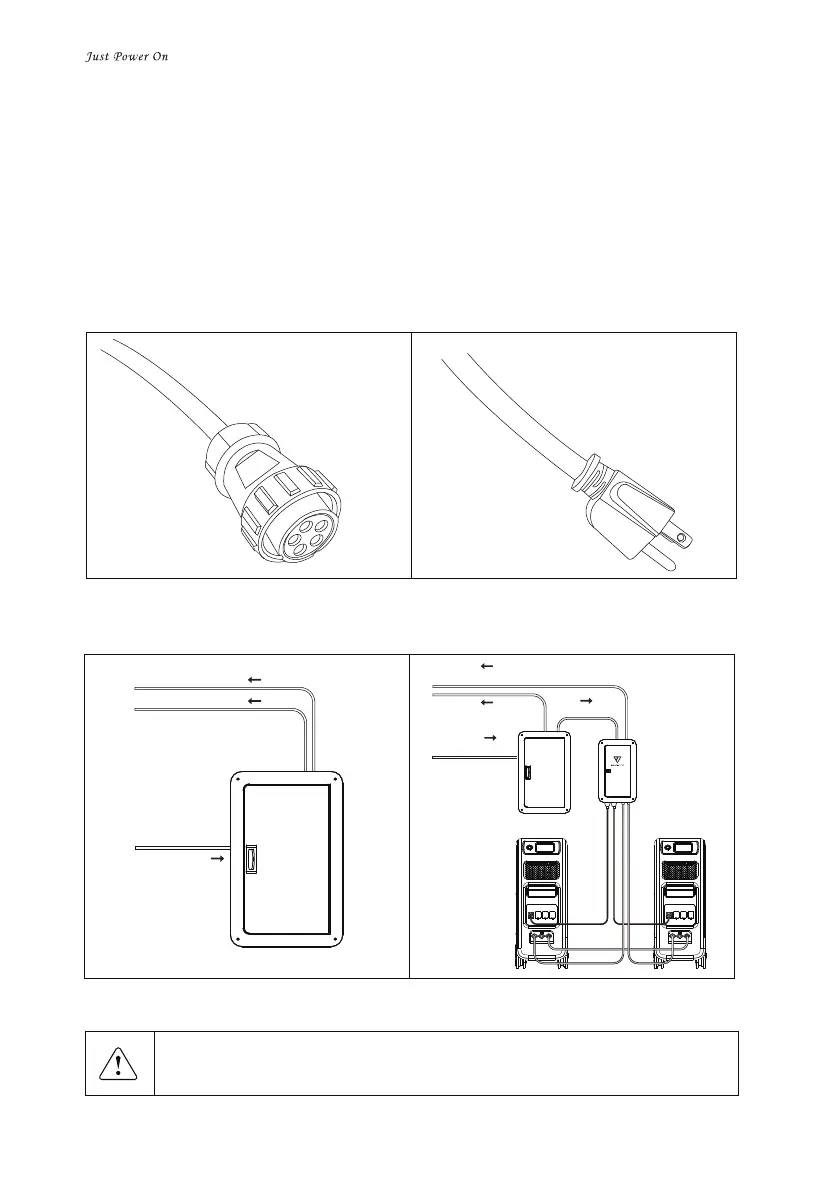

Figure 3.14 Off-grid Output Plug
(For EP500)
Figure 3.15 Main Panel Figure 3.16 Sub Panel & Dual EP500
WARNING:
The Input and Load circuit have to be connected to the same Line Wire.
CRITICAL LOAD
NON-CRITICAL LOAD
POWER GRID
MAIN PANEL
POWER GRID
POWER GRID
CRITICAL LOAD
NON-CRITICAL LOAD
MAIN PANEL SUB PANEL
Figure 3.13 Input Plug
(For EP500)
